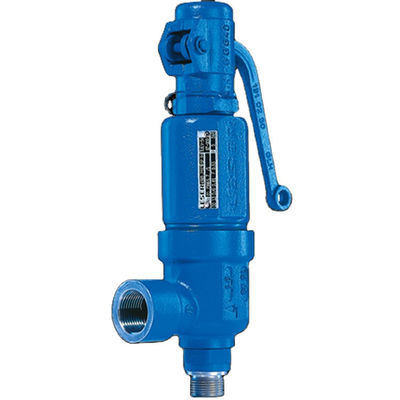

Name: Type 460 Spring Loaded Heating And Air Conditioning Safety Valve
Brand: LESER
SKU: Type 440
Rating: 5 (117 reviews)

Home > products > Pressure Reducing Valve >

Type 460 Spring Loaded Heating And Air Conditioning Safety Valve

DN15 Pressure Reducing Valve

EPDM Bellows Air Conditioning Safety Valve

1.4104 Thread Safety Relief Valve

Place of Origin:

Germany

Brand Name:

LESER

Model Number:

Type 440

Request A Quote

Type 460 Spring Loaded Heating And Air Conditioning Safety Valve

Product Details

Nominal Diameter At Inlet:

DN 15 - DN 20 | 3/4" - 1"

Actual Orifice Diameter D₀:

13 - 17.5 Mm | 0.51 - 0.69 In

Actual Orifice Area A₀:

133 - 241 Mm² | 0.21 - 0.37 In²

Pressure:

1 - 10 Bar | 14.5 - 145 Psig

Temperature (in Accordance With DIN EN):

Up To 120 °C | Up To 248 °F

Body Material:

1.4104 (Inlet), 0.7043 (Outlet) | 1.4104 (Inlet), Ductile Gr. 60-40-18 (Outlet)

Valve Connection:

Thread

Bellows Material (optional):

EPDM

Load Type:

Spring Loaded

Approvals:

TRD 721, PED/ DIN EN ISO 4126-1, PED/ AD 2000-Merkblatt A2, EAC

Blue Spirax Sarco Floating Ball Steam Drain Valve Or Check Valve For Industrial Pipe

Get Best Price

Fisher 1098-EGR Gas Pressure Regulators Digital Pressure Reducing Valve For Packaging Compressor

Get Best Price

Fuel Gas Pressure Regulator Valve FISHER 95L For Pressure Regulating With Skid Mount Package

Get Best Price

Fisher 299H Gas Reducing Pressure Regulator For Desuperheating And Reducing Device

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

Type 460 Spring Loaded Heating And Air Conditioning Safety Valve

Product Description

Specification

item	value
Warranty	1 Year
Type	Safety Relief Valves
Place of Origin	Germany
Brand Name	LESER
Model Number	Type 460
Application	Industries
Structure	Safety
Nominal Diameter at Inlet	DN 15 - DN 20 \| 3/4" - 1"
Actual Orifice Diameter d	13 - 17.5 mm \| 0.51 - 0.69 in
Actual Orifice Area A	133 - 241 mm² \| 0.21 - 0.37 in²
Pressure	1 - 10 bar \| 14.5 - 145 psig
Temperature (in accordance with DIN EN)	up to 120 °C \| up to 248 °F
Body Material	1.4104 (Inlet), 0.7043 (Outlet) \| 1.4104 (Inlet)
Load Type	Spring loaded
Valve Connection	Thread
Bellows Material (optional)	EPDM
Application	Heating/Air conditioning

Packing & Delivery

Safety Plastic Valve For Heating Plants Type 440 Spring Loaded Heating And Air Conditioning Flanged Safety Valve Spare Parts kits blister packed for quick and easy usage for Tartarini Pressure Reducing Regulators as valv valvpacked with one fumigation wooden box Box size: 60*30*40 (cm) WG:4.5 Kg
