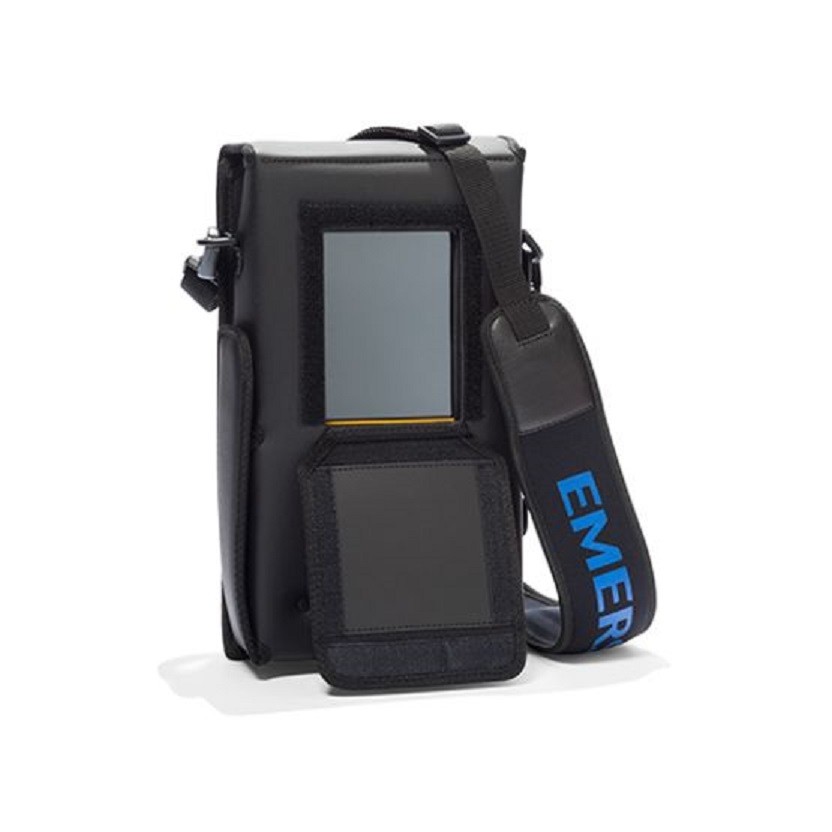

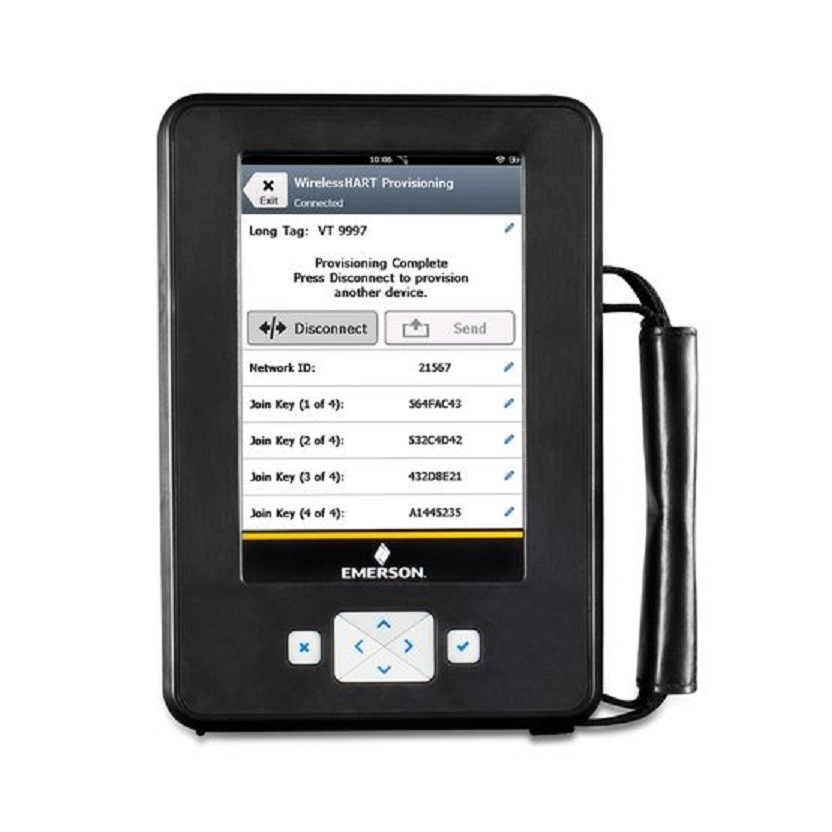

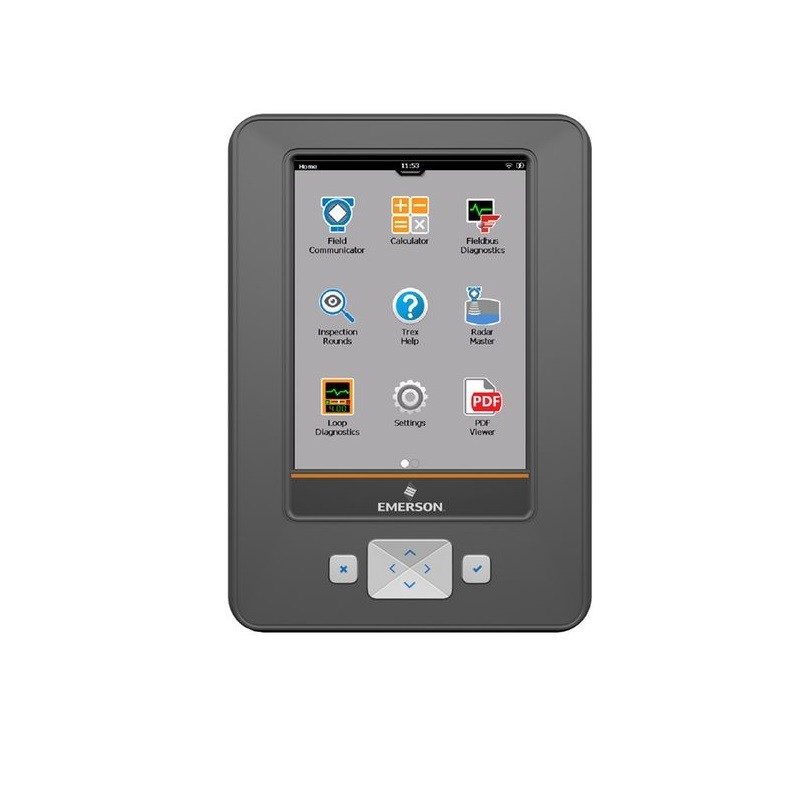

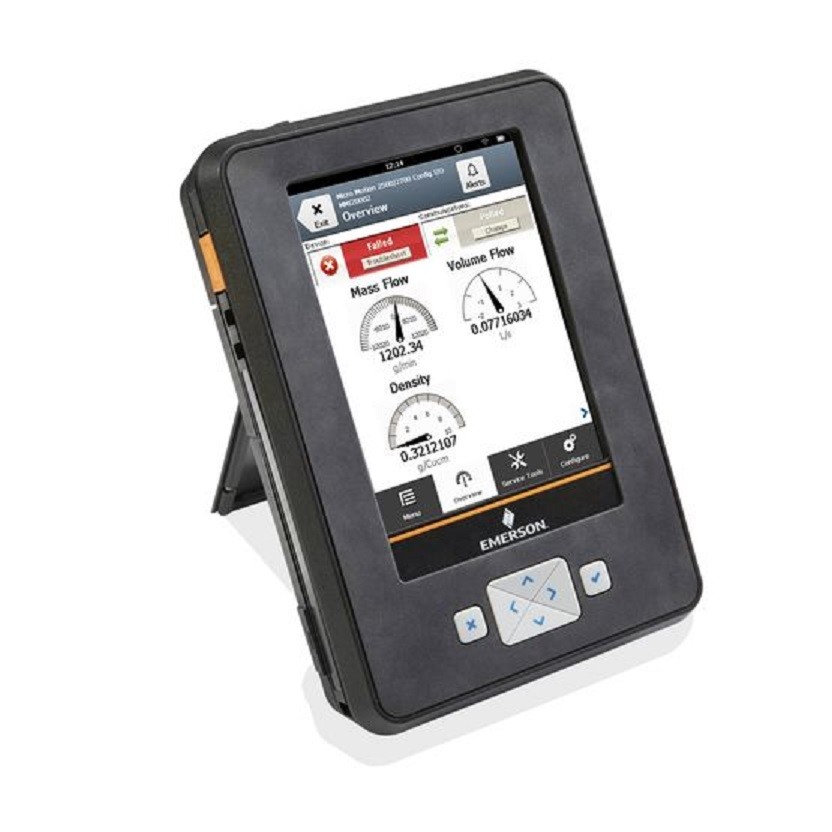

EMERSON AMS Trex Device Communicator for Fisher DVC6200 DVC2000 Valve positioners
Trex Device Communicator, Device Communicator communication module, HART, (Li-ion), IS, Wireless, Standard Support (3 Years)
Improve reliability with the AMS Trex Device Communicator. Increase productivity in the field with your Trex unit by doing more types of tasks. Easily solve complex device issues without the need for other specialized tools. The Trex communicator is designed to withstand the harsh conditions in and around manufacturing facilities and is safety-rated, so it can go anywhere you can go. Rely on Trex to deliver results and keep your field assets reliable.
Specifications
| Weight | Approximately 2.9 lbs (1330 grams) |
| Microprocessor | 800 MHZ ARM Cortex A8/NXP |
| Memory Internal Flash | 2 GB NAND and 32 GB extended flash |
| RAM | 512 MB DDR3 SDRAM |
| Display | 5.7 in (14.5 cm) color VGA resistive touchscreen |
| Battery Operating Time | 8+ hours of typical use |
| Operating Temperature | -20 to 55°C (-4 to 122°F) |
| Enclosure Rating | IP54 |
| Shock | Tested to survive a 1-meter drop test onto concrete |
Features
Eliminate the need for specialized tools with power the loop functionality
Quickly resolve field devices issues with advanced diagnostics
Configure and test valves inline
Improve efficiency with a modern, intuitive user interface
Intrinsically safe to go anywhere you go
Automatically synchronize field data with AMS Device Manager
