Name: Samson Control Valve With Positioner 3766 3767 Valve
Brand: samson
SKU: 3767 3766
Rating: 4.5 (103 reviews)

Home > products > Electric Control Valve >

Samson Control Valve With Positioner 3766 3767 Valve

Samson Electric Control Valve

Samson 3766 Electric Control Valve

Brand Name:

samson

Model Number:

3767 3766

Request A Quote

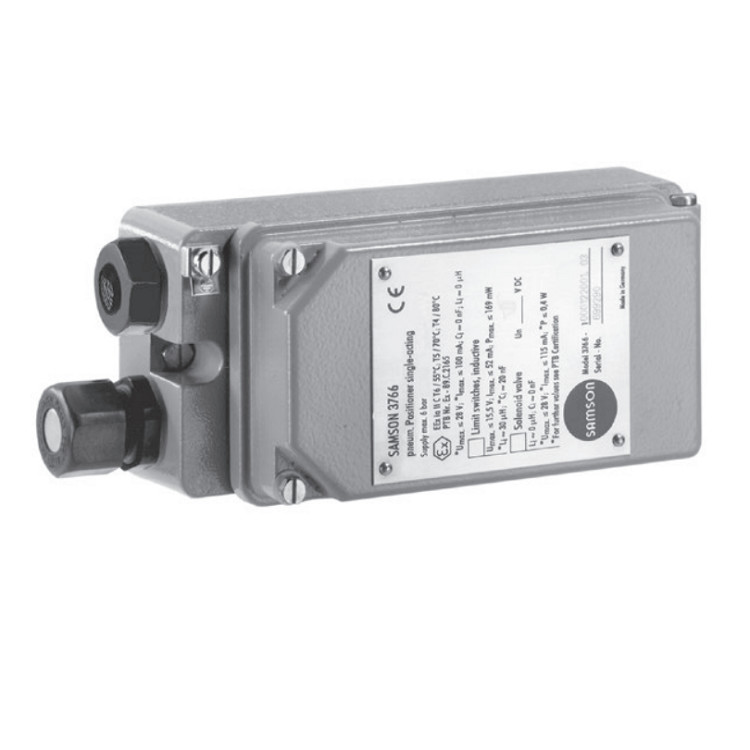

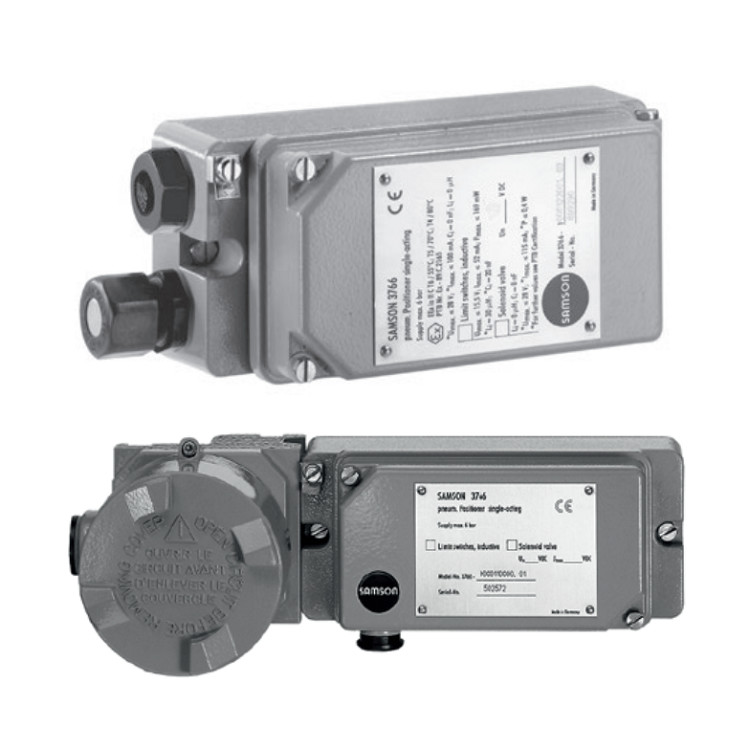

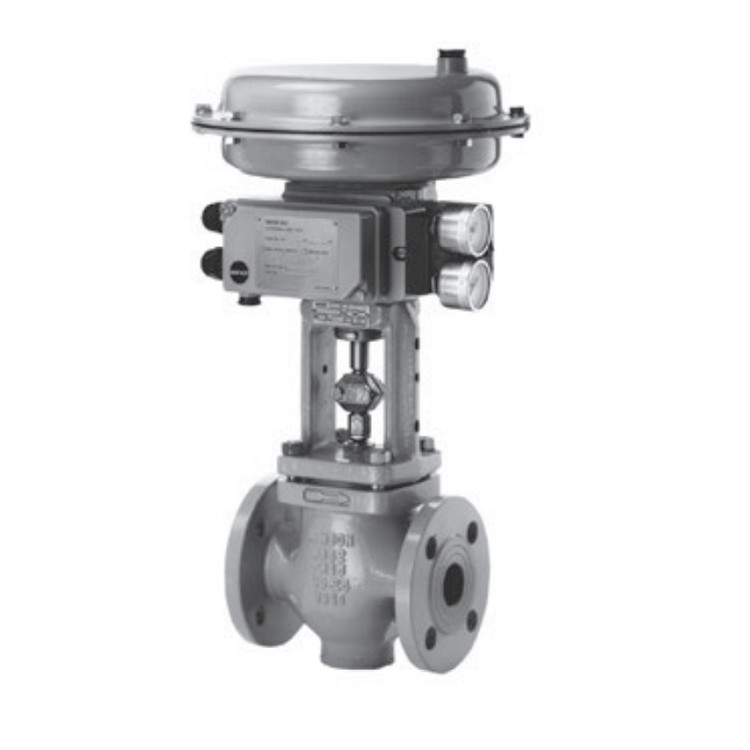

Samson Control Valve With Positioner 3766 3767 Valve

Product Details

Product Name:

Samson Control Valve With Positioner 3766,3767 Valve Positioner With 3241/3375 Electric Control Valve

Brand:

Samson

Model:

3767 3766

Matrial:

Alloy/Steel

Valve Style:

Positioner

Impedance:

Max.500 20mA DC

Supply Pressure:

0.14~0.7Mpa

Linearity:

±0.5% F.S

Hysteresis:

±0.5% F.S

Sensitivity:

±0.2% F.S

Reapeatability:

±0.3% F.S

Electric Control Valve With Tissin Smart Valve Positioner TS700 Series Pneumatic Positioners And Asco Solenoid Valve

Get Best Price

Magnetrol 705 706 Heavy Duty Guided Wave Radar Level Transmitter For Water Treatment System

Get Best Price

High Pressure Resistant 3/2 Running Burkert Brass Solenoid Valve 6524 For Pneumatic Applications

Get Best Price

High Pressure Resistant 3/2 Running Burkert Brass Solenoid Valve 6524 For Pressure Reducing Ball Valves

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

Products Description

samson control valve with positioner 3766,3767 valve positioner with 32413375 Electric Control Valve

The positioners ensure a predetermined assignment of the valve position (controlled variable x) to the input signal (referencevariable w). They compare the input signal received from a control system to the travel of the control valve and issue a

corresponding output signal pressure pst (output variable y). A reversing amplifier for double-acting actuators produces two opposed signal pressures. Special features Any mounting position possible, suitable for normal or splitrange operation, excellent dynamic response, negligibly small influence of supply air, adjustable proportional band (P band), adjustable air output capacity, low air supply consumption, very insensitive to mechanical vibrations, lowmaintenance compact design. • Versions for use in hazardous areas in type of protection intrinsic safety II 2G Ex ia IIC T6 or II 3G Ex nA II T6 for Zone 2. • Type of protection "Flameproof enclosure" Ex d with Type 3766 Positioner and Type 6116 i/p Converter (Fig. 2) • Direct attachment to Type 3277 Actuator (Fig. 3) • Attachment to actuators according to IEC 60534-6. • Attachment to rotary actuators according to VDI/ VDE 3845

Details Images

Product Paramenters

Name	samson control valve with positioner 3766,3767 valve positioner with 32413375 Electric Control Valve
Brand	Samson
Model	3677/3676
working range	-10 to +114 %
Voltage	24VDC
Application	Gas& Oil industry
Connection	SOLENOID
size	1/4 NPT

FEATURES USABLE WITH LOW TO HIGH CAPACITY ACTUATORS By adjusting the built-in capacity control spring, the positioner can be made

optimum to the given actuator. A LOW AIR CONSUMPTION The pilot valve is low in air consumption and high in capacity. OUTPUT CHARACTERISTICS SELECTABLE Having a cam within the feedback construction, choices other than the standard linear characteristic are available. COMPATIBLE WITH VARIOUS FEEDBACK TYPES Applicable to the following types by simply exchanging the cam block. * For

Linear type actuator : Feedback for Standard lever type EP 8 1 * For Rotary type actuator : Feedback for lever type EP 8 2 * For

Rotary type actuator : Feedback for direct connection to driving shaft EP 8 4 REVERSE ACTION PILOT VALVE EASILY AVAILABLE The positioner for double acting actuators can be used as a reverse action pilot valve when combined with a spring return actuator that requires a reverse action pilot. ANTI-PRESSURE AND EXPLOSION PROOF STRUCTURE MARKING ON-SITE ADJUSTMENT POSSIBLE The anti-pressure and explosion proof construction, with the terminal and coil blocks enclosed together in one package, makes it possible to remove the positioner cover for inside inspection or span adjustment even in an explosive ambient. INTRINSICALLY SAFE

CONSTRUCTION FOR A WIDE SCOPE OF APPLICATIONS The intrinsically safe construction (torque-coil type: EP82) cover terminals and coil as one package. This, combined with The adoption of the specified zener barrier, makes the unit applicable in all hazardous gas location ( including Class 0 area) ranging from low ( 40 ) to high ( 60 ) temperature environment.
