Place of Origin:
China
Brand Name:
SCHUNK
Certification:
Provide
Model Number:
PHL 25-045
Contact Us
Stroke per Jaw: 45 mm
Closing Force: 500 N
Opening Force: 500 N
Closing Force with Finger Lengths of 0 mm: 508 N
Opening Force with Finger Lengths of 0 mm: 508 N
Weight: 1.89 kg
Recommended Workpiece Weight: 2.5 kg
Cylinder Volume per Double Stroke: 107 cm³
Operating Pressure:
Operating Times:
Finger Specifications:
Environmental and Mechanical Specifications:
Moment and Force Specifications:
The gripping force is calculated as the combined force exerted by each gripping jaw a certain distance from the pivot point, denoted as distance P (refer to the associated diagram for visual understanding).
The length of the gripper fingers is determined by measuring from the defined reference plane to distance P, which extends toward the principal axis of the gripper. This length is deemed acceptable up to the point when the standard operating pressure is reached. Should the pressure surpass this standard threshold, an adjustment in finger length becomes necessary, scaling inversely with the rise in operational pressure.
Repeat accuracy of the device is specified by the position variance over a sequence of 100 consistent cycles. This value describes the reliability of the end positioning throughout repetitive use.
The permissible weight of a workpiece for a secured grip is inferred considering a static friction coefficient of 0.1 and incorporating a safety margin of factor 2 to prevent any slippage of the workpiece when subjected to gravitational acceleration (g). In circumstances where form-fitting or encapsulating gripping is utilized, the admissible weight capacity of the workpiece is greatly elevated.
The durations documented for the jaws of the base to close and open reflect only the physical movement of the core mechanism. It is crucial to note that these timings do not include delays from valve activation, the time taken for hoses to fill, or any latency associated with the Programmable Logic Controller (PLC) responses. It is imperative to account for these additional intervals when determining the overall cycle times.
The operational architecture of the mechanism is founded on the dual piston rack and pinion design, establishing its fundamental working concept.
The housing of the component is crafted from extruded profile aluminum , ensuring both durability and lightweight construction for superior performance.
The base jaw is constructed from high-quality aluminum alloy and finished with an anodized coating. This provides additional surface protection and extends the longevity of the component.
A profiled rail guide mechanism is employed to deliver precise and smooth guidance, ensuring the device operates with the highest levels of accuracy.

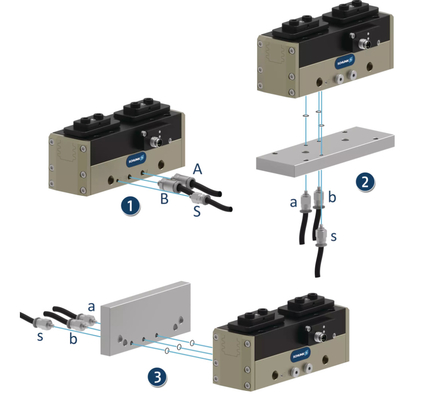

The unit is actuated pneumatically, utilizing filtered compressed air as specified by ISO 8573-1:2010 standards with purity class [7:4:4]. This promotes consistent performance and reliability.
We provide a comprehensive 24-month warranty with this product, backing its quality and craftsmanship.

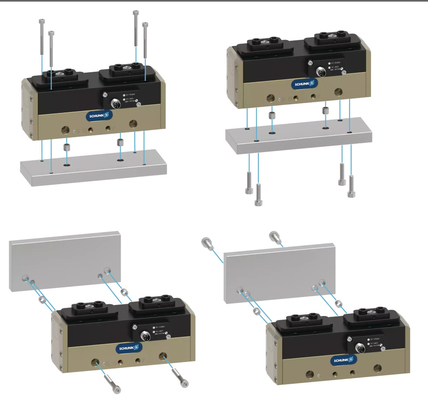

The product package includes centering sleeves , O-rings for a direct connection, and detailed assembly instructions . Additionally, customers can access the operating manual with the declaration of incorporation online, offering convenience and immediate availability of information.
Maintenance of the gripping force is possible for this model. Users have options such as opting for the version that comes with mechanical gripping force maintenance or with a pressure maintenance valve SDV-P , depending on their specific needs.
The SCHUNK PHL 25-045 represents a pinnacle of precision and reliability in the realm of Industrial Equipment Parts, especially designed for integration with complex automation systems. As a leading component of Robot Gripper technology, this product is crafted with the utmost care in China, ensuring that it adheres to stringent global standards. The SCHUNK brand is synonymous with exceptional quality, and the PHL 25-045 model is no exception, bearing a certification that testifies to its excellence.
With a minimum order quantity set at just one unit, the SCHUNK PHL 25-045 is accessible to both small-scale operations and large industrial projects. The price, set at 2600$, reflects the premium performance and durability of the product. Packaging details are meticulously handled, with the product being delivered in a standard package that guarantees its safe arrival. The delivery time is also noted as being timely, which is crucial for businesses looking to maintain or enhance their operational efficiency.
The terms of payment are flexible, with T/T and Link being accepted, which facilitates a smooth transaction process. The supply ability is marked as enough, suggesting that SCHUNK is fully prepared to meet the demands of the market for the PHL 25-045, ensuring that customers can acquire this essential Industrial Equipment Part whenever the need arises.
As a Robot Gripper, the SCHUNK PHL 25-045 boasts a formidable opening force of 500 N, enabling it to handle a variety of tasks with ease and precision. While stroke adjustability is not a feature of this model, its robust design and superior build quality make it a dependable part of any automated system. Classified as a Gripper System, it is designed to work seamlessly with other robotic components to create a comprehensive automation solution.
The SCHUNK PHL 25-045 is also designed with a protection rating of IP65, which ensures that it is well-shielded against dust ingress and low-pressure water jets from any direction, making it suitable for challenging industrial environments. This level of protection underscores the product’s durability and the brand’s commitment to providing equipment that can withstand the rigors of industrial use.
Application occasions and scenarios for the SCHUNK PHL 25-045 are diverse, ranging from assembly line automation, where precision and reliability are paramount, to the operation of machinery in sectors such as automotive manufacturing, electronics, and aerospace. This Robot Gripper is an indispensable part of any Industrial Equipment Parts inventory, designed to deliver performance and reliability in demanding industrial settings.
Brand Name: SCHUNK
Model Number: PHL 25-045
Place of Origin: China
Certification: Provide
Minimum Order Quantity: 1
Price: $2600
Packaging Details: standard package
Delivery Time: timely
Payment Terms: T/T, Link
Supply Ability: enough
Protection Level: IP23S
Product Classification: Gripper System
Calculated Mtbf: 30,000 Hours
Protection Rating: IP65
Max. ambient temperature: 90 °C
Discover exceptional Clamping & Gripping Solutions with our SCHUNK PHL 25-045 Handling Robot Arm parts. Engineered for precision and reliability, our Industrial Robot Parts are a testament to advanced manufacturing with a robust Protection Level of IP23S and a calculated MTBF of 30,000 hours. Each gripper system is specifically designed to enhance your automation processes, ensuring high performance and durability in even the most demanding industrial environments.
Our Robotic Arm Parts come with comprehensive technical support and services to ensure your satisfaction and the optimal performance of our products. Our team of experts is dedicated to providing you with the guidance and assistance you need for installation, operation, and maintenance.
Technical Support includes:
Services include:
Please refer to the documentation provided with your product for specific support and service instructions, or reach out to our support team for personalized assistance.
Product Packaging: Each Robotic Arm Part is individually encased in a custom-fit protective foam insert, ensuring the component remains secure during transport. The insert is placed within a sturdy, corrugated cardboard box designed to mitigate impact and prevent damage. The exterior of the box is clearly labeled with the product name, part number, and a fragile warning to handle with care.
Shipping: The packaged Robotic Arm Parts are shipped via a trusted courier service to provide reliable and efficient delivery. Tracking information is provided for each shipment, allowing customers to monitor their package's progress. We offer standard and expedited shipping options to meet various time-sensitive needs. Please note that shipping times may vary depending on the destination and customs processing for international orders.
