Explosion-Proof SIPOS Seven 7 Electric Valve Actuator for Water Utilities

1
MOQ
US $3000.00 - 3500.00/ Unit
Price
Explosion-Proof SIPOS Seven 7 Electric Valve Actuator for Water Utilities
Features Gallery Product Description Request A Quote
Features
Specifications
Torque Range: 10 Nm - 4000 Nm
Speed Range: Variable Speed Control From 0.5 Rpm To 60 Rpm (depending On Model)
Control Type: ON/OFF, Modulating (continuous), Positioning
Ambient Temperature: -30°C To +70°C (standard); Extended Range Available On Request
Thrust: Up To 150 KN (with Thrust Unit)
Power Supply: 3-phase: 380-500 V AC, 50/60 Hz
Protection Class: IP67 / IP68 Optional
Highlight:

explosion-proof electric valve actuator

,

SIPOS 7 water utility actuator

,

electric control valve with warranty
Basic Infomation
Brand Name: SIPOS
Model Number: Seven
Payment & Shipping Terms
Packaging Details: Wooden box + cardboard box + protection
Delivery Time: 90 work days
Payment Terms: T/T
Supply Ability: 500 units per year
Product Description
Explosion-Proof Electric Butterfly Valve Factory Customized SIPOS Seven 7 Water Utility Flow Control Electric Valve Actuator
Product Specifications
Attribute Value
Torque Range 10 Nm - 4000 Nm
Speed Range Variable speed control from 0.5 rpm to 60 rpm (depending on model)
Control Type ON/OFF, Modulating (continuous), Positioning
Ambient Temperature -30°C to +70°C (standard); extended range available on request
Thrust Up to 150 kN (with thrust unit)
Power Supply 3-phase: 380-500 V AC, 50/60 Hz
Protection Class IP67 / IP68 optional
Product Overview

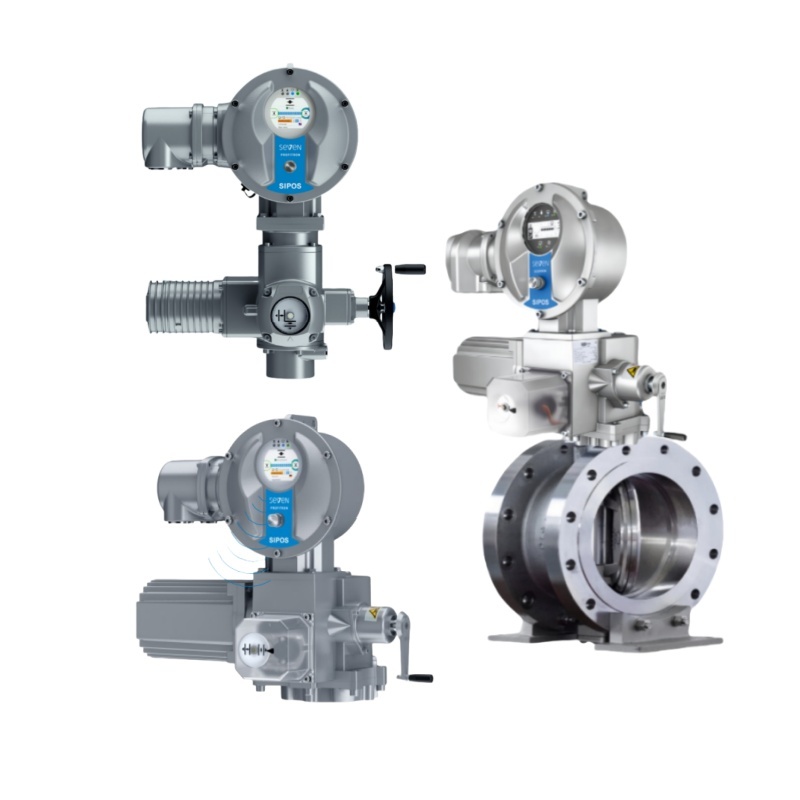

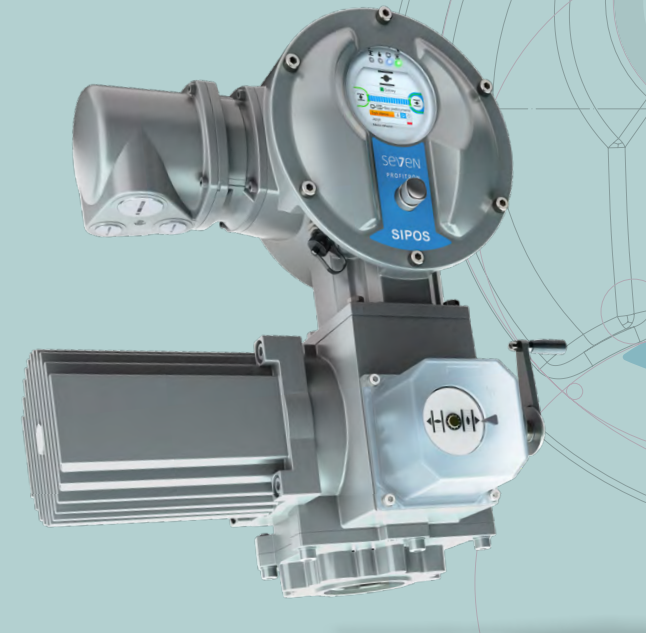

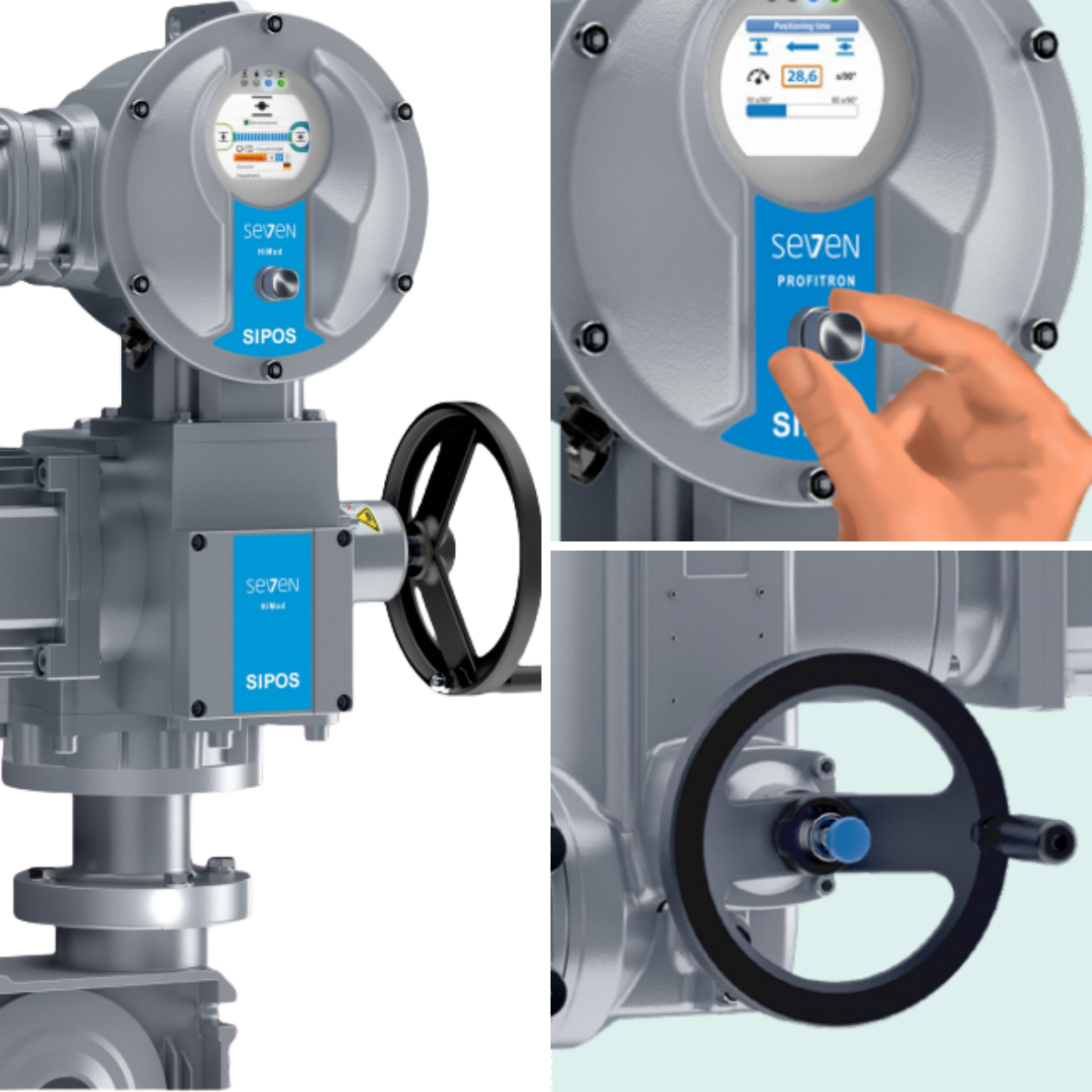

The SIPOS Seven 7 Electric Valve Actuator is a robust, explosion-proof solution designed for precise flow control in water utilities and industrial pipelines. Engineered for reliability in harsh environments, it combines high torque output with intelligent control capabilities. Compatible with butterfly valves, it ensures seamless automation for municipal water supply, wastewater treatment, and chemical processing applications.

Technical Parameters
Parameter Specification
Model SIPOS Seven 7 Series
Voltage 24V AC/DC, 110-240V AC
Explosion-Proof Grade ATEX II 2G Ex d IIC T6 Gb / IECEx
Torque Range 50-2000 Nm (adjustable)
Control Signal 4-20 mA, 0-10V, Modbus RTU
Communication HART, Profibus DP
Ambient Temperature -30°C to +70°C
Protection Class IP67 / NEMA 4X
Material Aluminum Alloy, Stainless Steel 316
Key Features
  • Explosion-Proof Design: Certified for hazardous zones (Zone 1/21)
  • High Torque Output: Suitable for large-diameter butterfly valves
  • Smart Diagnostics: Real-time status monitoring via HART/Profibus
  • Customizable Mounting: Tailored for factory-specific valve integration
  • Energy Efficiency: Low power consumption with emergency battery backup
Applications
  • Municipal Water Supply: Precise flow control in pumping stations and reservoirs
  • Wastewater Treatment: Automated sludge and effluent regulation
  • Chemical Industry: Safe handling of corrosive media in explosive atmospheres
  • Power Plants: Cooling water system automation
