Fisher FieldVue DVC6200 Smart Valve Positioner with HART Communication

1
MOQ
US $1500.00 - 2000.00/ Set
Price
Fisher FieldVue DVC6200 Smart Valve Positioner with HART Communication
Features Gallery Product Description Request A Quote
Features
Specifications
Communication Protocol: 4-20 MA HART
Diagnostics: Yes
Max Outlet Pressure: 145 Psig
Operating Temperature: Standard Temperature, High Temperature
Highlight:

Fisher DVC6200 HART valve positioner

,

smart valve positioner with HART

,

pneumatic control valve positioner
Basic Infomation
Brand Name: Fisher
Model Number: DVC6200
Document: xiangjing valve&instrument ...t .pdf
Payment & Shipping Terms
Packaging Details: Cardboard box + protection
Delivery Time: 35-60 days
Payment Terms: T/T
Supply Ability: 2000 set per year
Product Description

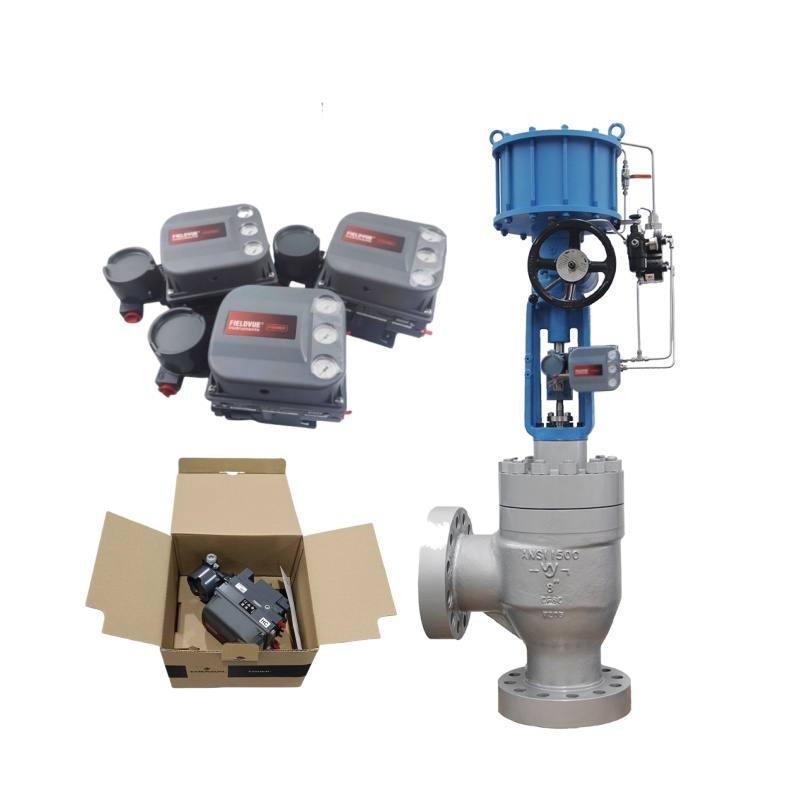

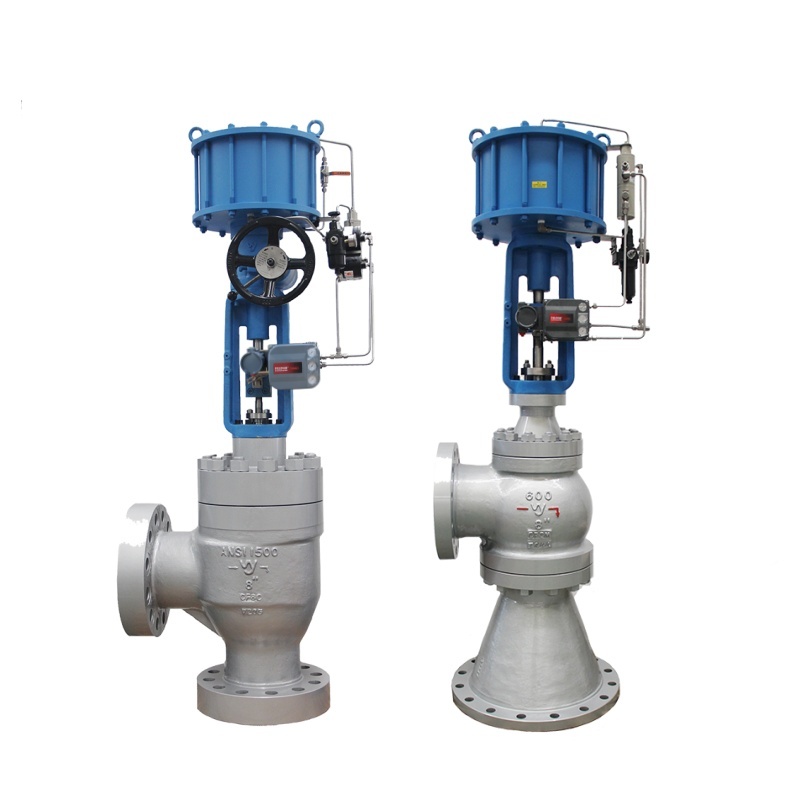

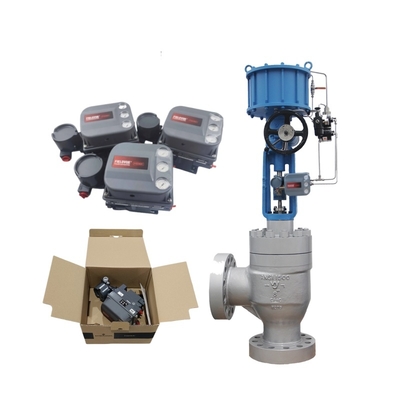

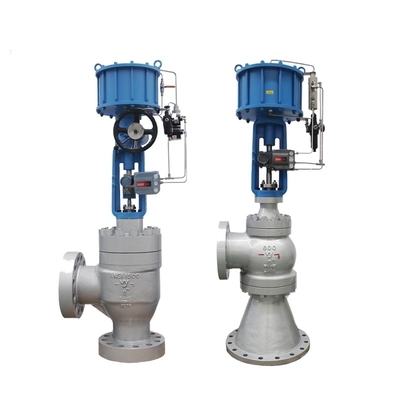

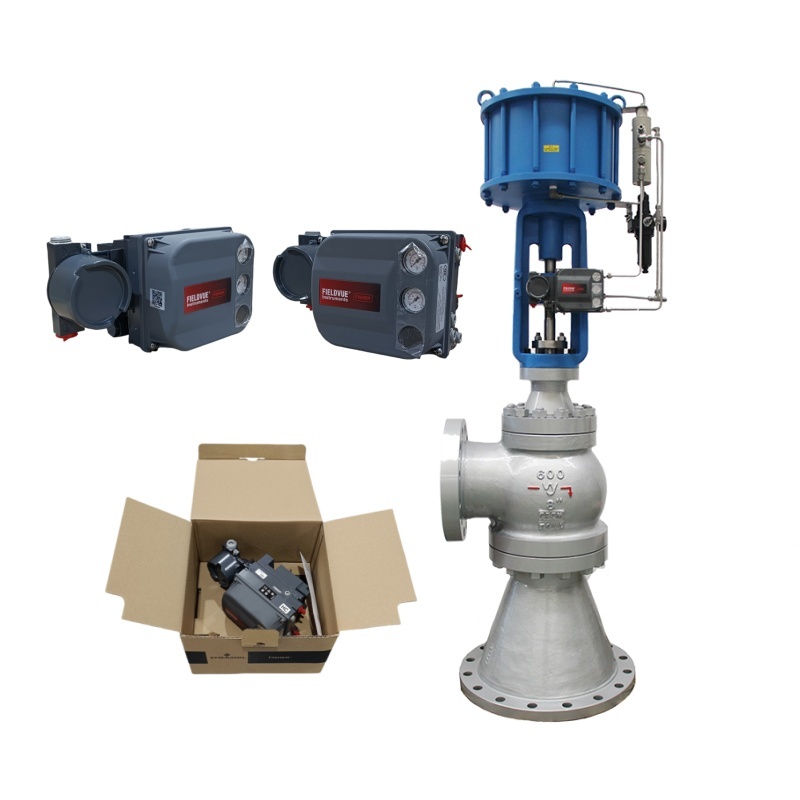

Fisher FieldVue DVC6200 Smart Valve Positioner

Advanced pneumatic control device designed for precise regulation of industrial valves, including black water angle valves and sliding-stem actuators.

Product Attributes
Attribute Value
Communication Protocol 4-20 mA HART
Diagnostics Yes
Max Outlet Pressure 145 psig
Operating Temperature Standard Temperature, High Temperature
Technical Specifications
Parameter Specification
Input Signal 4-20 mA DC (HART 5/7 compatible)
Pneumatic Output 1/4 NPT, 0.056-29.5 m³/hr (2.1-1100 scfh)
Supply Pressure Range 1.4-5.5 bar (20-80 psig)
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Protection Rating IP66 / NEMA 4X
Communication Protocol HART 5/7, Multi-drop Network
Accuracy ±1% of Travel Span
Hazardous Area Approvals ATEX, IECEx, CSA, FM, Lloyd's Register
Key Features
  • Digital Intelligence: HART communication for remote configuration and monitoring via Fisher ValveLink software.
  • Linkless Feedback System: Reduces mechanical wear in vibratory environments.
  • Self-Diagnostics: Monitors valve stem travel, air pressure, and electronics.
  • Modular Design: Easy component replacement without field wiring disruption.
  • Environmental Resistance: IP66-rated housing for dust, moisture, and extreme temperatures.
  • Energy Efficiency: Low air consumption (≤0.184 m³/hr at 80 psig) cuts operational costs.
Applications
  • Chemical & Petrochemical: Flow control in corrosive settings
  • Power Generation: Steam valve regulation for boiler efficiency
  • Water Treatment: Automation of black water angle valves in wastewater systems
  • Oil & Gas: ESD valve control in offshore platforms
  • Food & Beverage: Hygienic process control for CIP/SIP systems
  • Marine & Offshore: Reliable operation under vibration and saltwater exposure
