Attribute | Value |
---|---|
Measurement Range | 0.1...20 m/s (200:1) |
Process temperature | -40...+200°C/ -40...+392°F |
Digital outputs | FOUNDATION fieldbus, HART, Profibus-PA, Profibus-DP, Modbus RTU |
Analogue outputs | 4...20 mA |
Measured media | Liquids |
Connectivity | Flange and Thread |

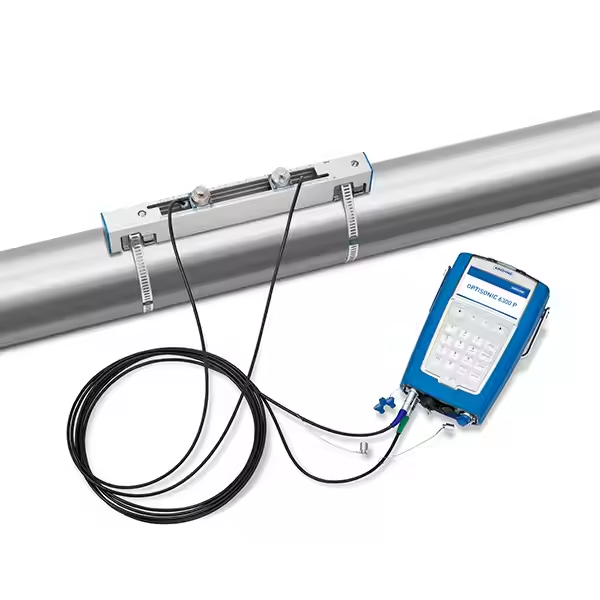

The Krohne OPTISONIC 6300 is a cutting-edge ultrasonic clamp-on flowmeter designed for non-invasive liquid flow measurement in harsh industrial environments. With a stainless steel construction and IP67 protection, it excels in chemical, power, and water treatment industries. Its wireless programming and portable design enable rapid deployment, while dual-channel measurement ensures high accuracy for fluids like cooling water, chemicals, and ultrapure water.
Parameter | Specification |
---|---|
Measurement Principle | Ultrasonic time-of-flight |
Pipe Diameter Range | DN15…DN4000 (0.6…157.5") |
Accuracy | ±1.0% of reading |
Repeatability | ±0.2% |
Temperature Range | -50…+200°C (-58…+392°F) |
Material | Stainless Steel 316L |
Protection Class | IP67/NEMA 6P |
Power Supply | 220V AC or rechargeable battery |
Communication | Bluetooth, USB, Modbus TCP |
