Attribute | Value |
---|---|
Torque Range | 10 Nm - 4000 Nm |
Speed Range | Variable speed control from 0.5 rpm to 60 rpm (depending on model) |
Control Type | ON/OFF, Modulating (continuous), Positioning |
Ambient Temperature | -30°C to +70°C (standard); extended range available on request |
Thrust | Up to 150 kN (with thrust unit) |
Power Supply | 3-phase: 380-500 V AC, 50/60 Hz |
Protection Class | IP67 / IP68 optional |

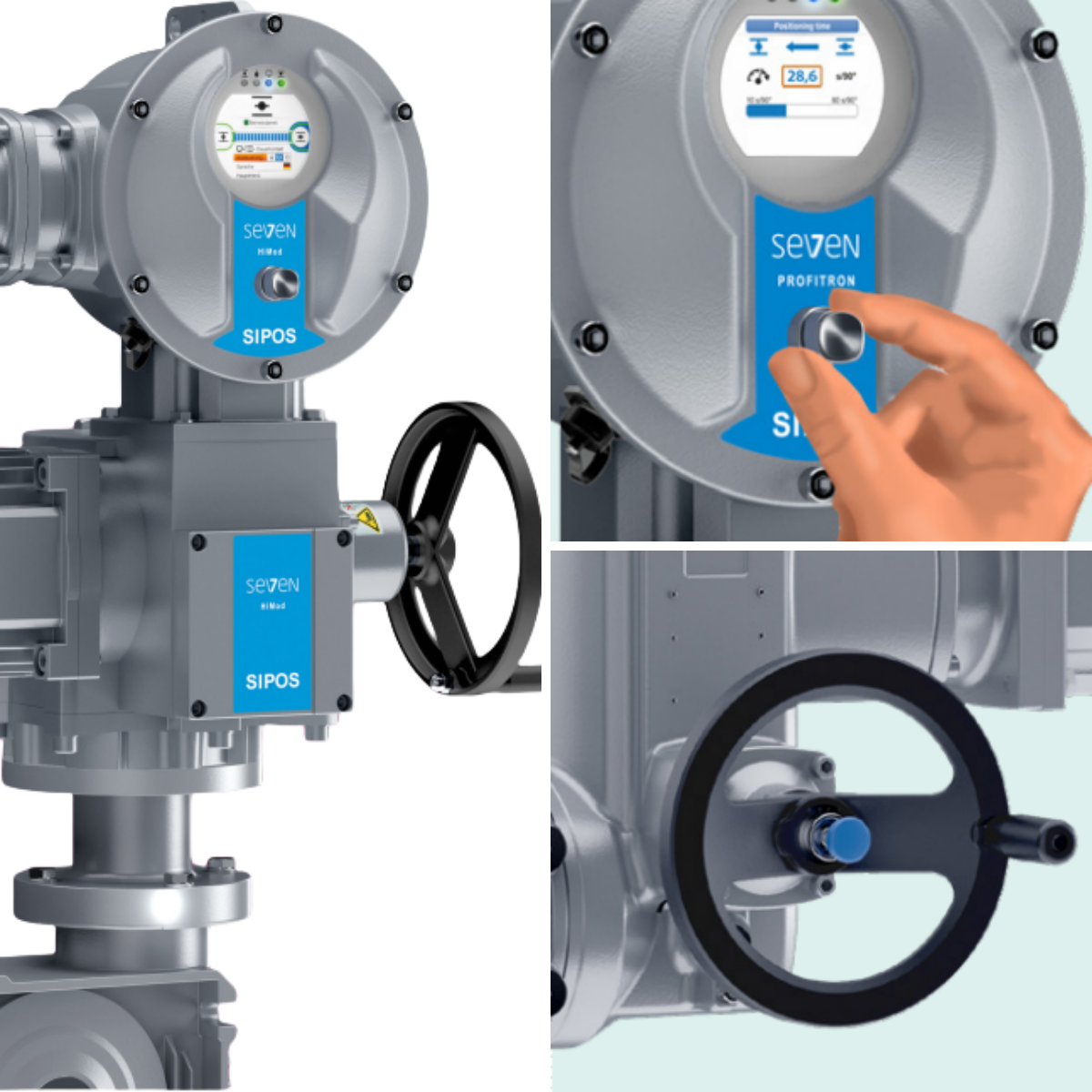

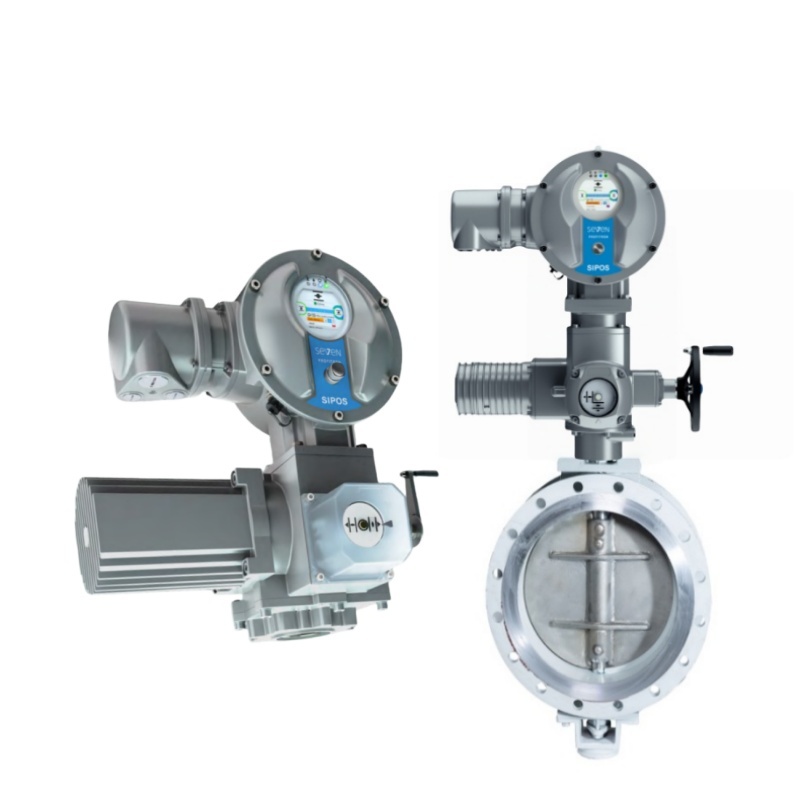

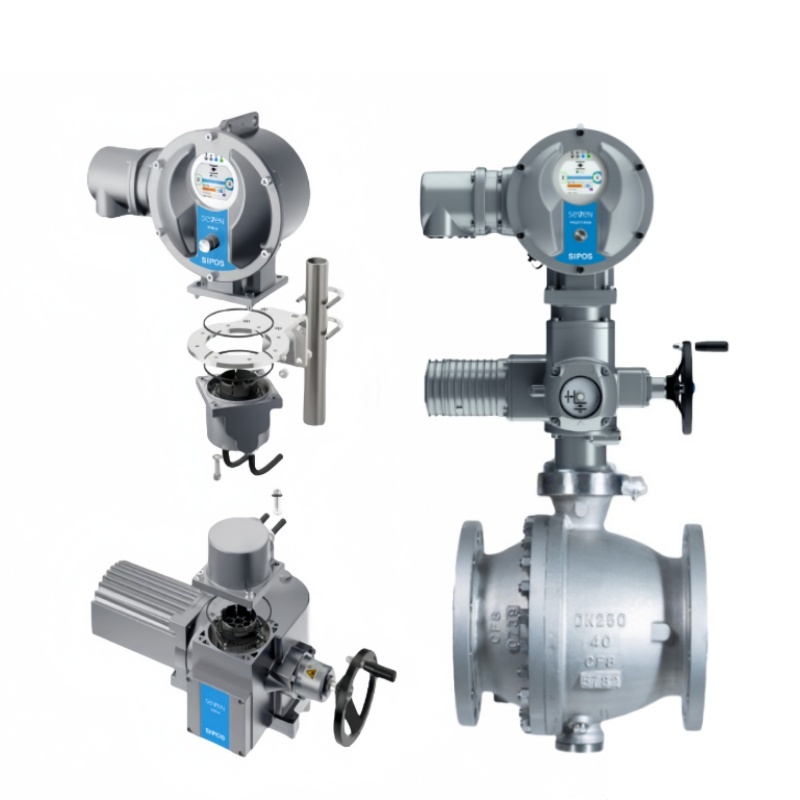

The SIPOS SEVEN 7 Variable Speed Electric Actuator is a cutting-edge solution designed for precise control of electric butterfly valves in industrial automation. Engineered with adjustable speed settings, it optimizes valve performance while reducing energy consumption. Paired with China-made electric butterfly valves, it ensures seamless integration for water treatment, chemical processing, and HVAC systems.
Parameter | Specification |
---|---|
Model | SIPOS SEVEN 7 Series |
Voltage | 24V AC/DC, 110-240V AC |
Speed Range | 0.1-120 RPM (adjustable) |
Torque Output | 20-1500 Nm |
Control Signal | 4-20 mA, 0-10V, Modbus TCP |
Protection Class | IP67 / NEMA 4X |
Operating Temp | -30°C to +85°C |
Material | Aluminum Alloy, Stainless Steel 304 |
Certification | CE, ATEX, SIL 2 |
