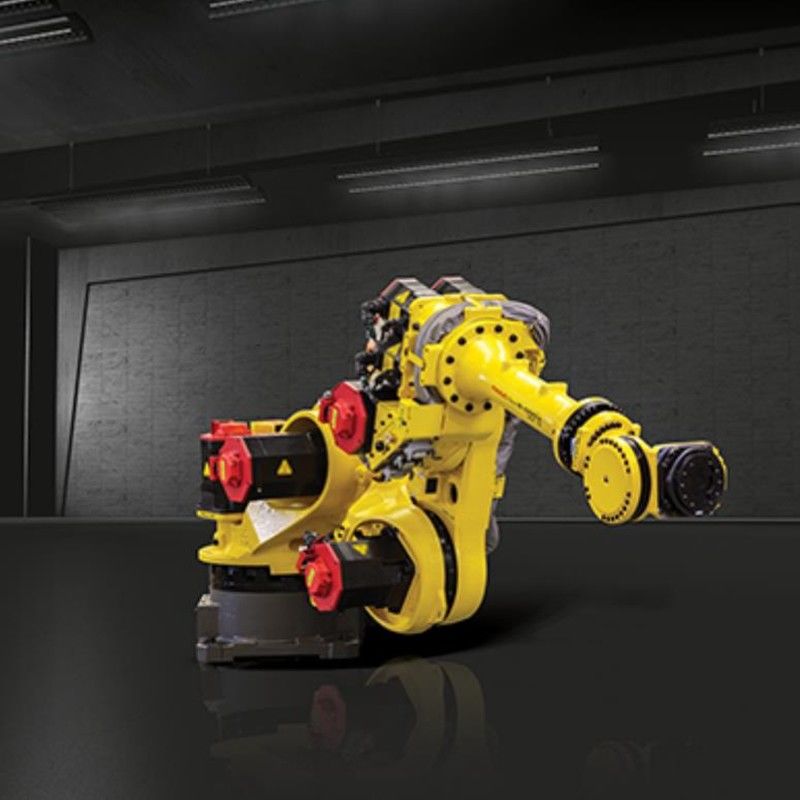

Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder

Basic Information
Place of Origin: Japan
Brand Name: FANUC
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder Factory sales wooden case
Supply Ability: 100 Set/Sets per Month
Condition: New After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Product Name: Handling Robot 7 Axis Robotic Arm R-1000 IA 120F-7B With Robot Welder Number Of Axes: 7
Maximum Reach: 2230mm Max Payload: 120 Kg
Pose Repeatability(ISO 9283): ±0.03mm Mount Position: Floor Inverted Angle Mount
Weight: Approx. 790 Kg (without Controller) Protection Rating: IP54/IP65
Type: Articulated Type Drive Method: Electric Servo Drive By AC Servo Motor
Port: Shanghai
High Light:

fanuc material handling robot

,

delta robot arm

Product Description

Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder

Based on an added seventh axis in its second arm, the R-1000iA/120F-7B gains more agility, making it ideal for material handling and spot welding. Nevertheless, its' compact design enables it to fully operate within small work cells, reaching the same cycle times as the six-axis.

Main Features

1.Compact, flexible design

Ability to fold and shorten its second arm due to seventh axis allowing it to work within small work cells and narrow environments. Its design prevents interference contours due to integrated services in the arm

2.Strong, sturdy and agile

Capable of handling heavy payloads due to an enhanced payload of 120 kg and possibility to fold back the arm without changing its gun positioning

3.Short cycles and high throughput
While handling the same payload (e.g. 100 kg), compared to the six-axes, the seven-axes can perform more complex tasks
Infinite possibilities

1.Built for speed

All components of the R-1000 series are purpose build for maximum speed and reliability.


Product name
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder
Controlled axes
7
Max. payload at wrist
120kg
Repeatability
±0.03mm
Reach
2230mm
Mass (without controller)
790kg
Drive method
Electric servo drive by AC servo motor
Installation
Floor Inverted, Angle
Matching controller / Input power capacity
FANUC R-30iB Controller

FANUC R-30iB Mate Cabinet Controller

FANUC R-30iB iPendant Touch Controller

FANUC R-30iB A-Cabinet Controller

FANUC R-30iB B-Cabinet Controller
                                                                              Robot Motion Speed
J1
130 °/s
J2
110°/s
J3
120°/s
J4
170°/s
J5
170°/s
J6
250°/s
E1
130°/s
                                                                            Robot Motion Range
J1
±360°
J2
±200°
J3
±385°
J4
±720°
J5
±250°
J6
±720°
E1
±225°
Application
Palletizing, Assembly, Machine Loading, Machine Tending, Milling, Part Transfer  Robots
Detailed Images
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 0
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 1
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 2
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 3
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 4
Our Service
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 5
1.Swift delivery
For common parts, we can deliver the goods within 3 days

2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.

.

Certifications
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 6
FAQ
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 7
Our Company
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 8
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 9
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 10
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 11
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder 12
