6 axes industrial Robot assembling robotic arm M-3iA/6A

6 axes industrial Robot assembling robotic arm M-3iA/6A

MOQ: 1 Set/Sets
Price: Negotiation
Standard Packaging: Packing type: cardboard box/non-fumigation wooden box
Supply Capacity: 999 Set/Sets per Month
Detail Information
Brand:
FANUC
Product Name:
M-3iA/6A
Controlled Axes:
6
Max. Payload At Wrist:
6kg
Repeatability:
±0.03mm
Installation:
Ceiling
Mass:
175kg
Matching Controller:
R-30iB/R-30iB Plus 12kVA
Type:
Assembling Robotic Arm, Automatic Control
Motion Range:
1350mm, 500mm
Other:
Intelligent Equipment
Port:
Shanghai Port
Minimum Order Quantity:
1 Set/Sets
Price:
Negotiation
Packaging Details:
Packing type: cardboard box/non-fumigation wooden box
Supply Ability:
999 Set/Sets per Month
High Light:

fanuc material handling robot

,

delta robot arm

Product Description
Product Description

M-3iA/6A Intelligent Industrial Robot for FANUC


FEATURES


FANUC Robot M-3iA is a large-sized parallel link robot for high speed picking and assembly.
The exclusive 6 axes type of parallel link robot expanded robotization of transferring and assembling application.
Total 4 axes robot including single axis rotation at wrist. The maximum payload is 8kg (option), suitable for high speed arranging and handling of multi work pieces at the same time on the conveyer.


Specifications

Controlled axes
6
Max. payload at wrist
6kg
Motion range (X, Y)
φ1350mm, 500mm
Repeatability
±0.03mm
Mass
160kg
Installation
Ceiling
Application
Assembling
Matching controller / Input power capacity
R-30iB/R-30iB Plus (A-cabinet), R-30iB Mate/R-30iB Mate Plus (standard, open air) / 12kVA
Detailed Images

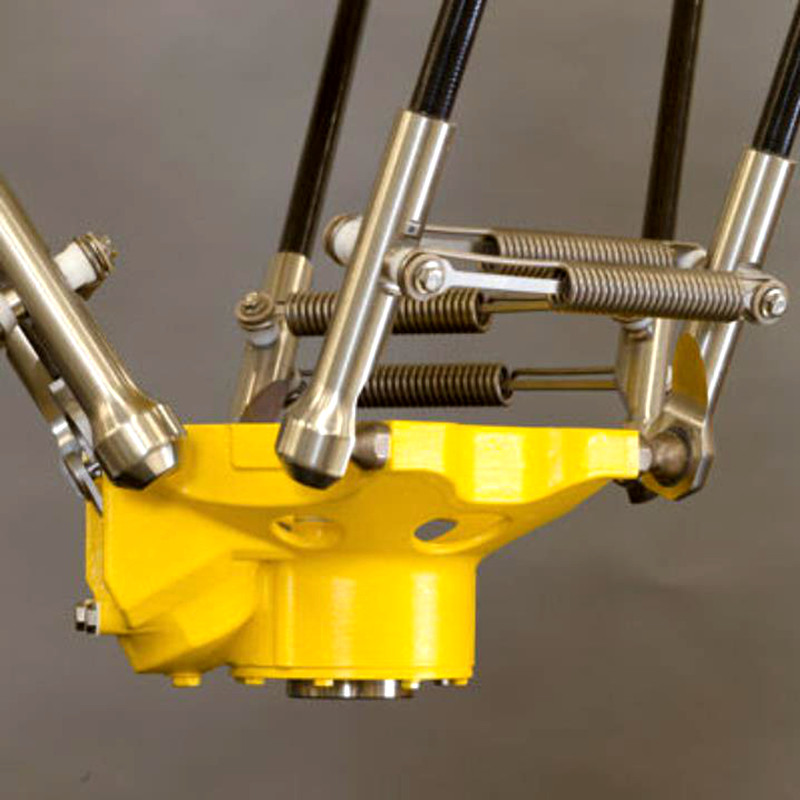

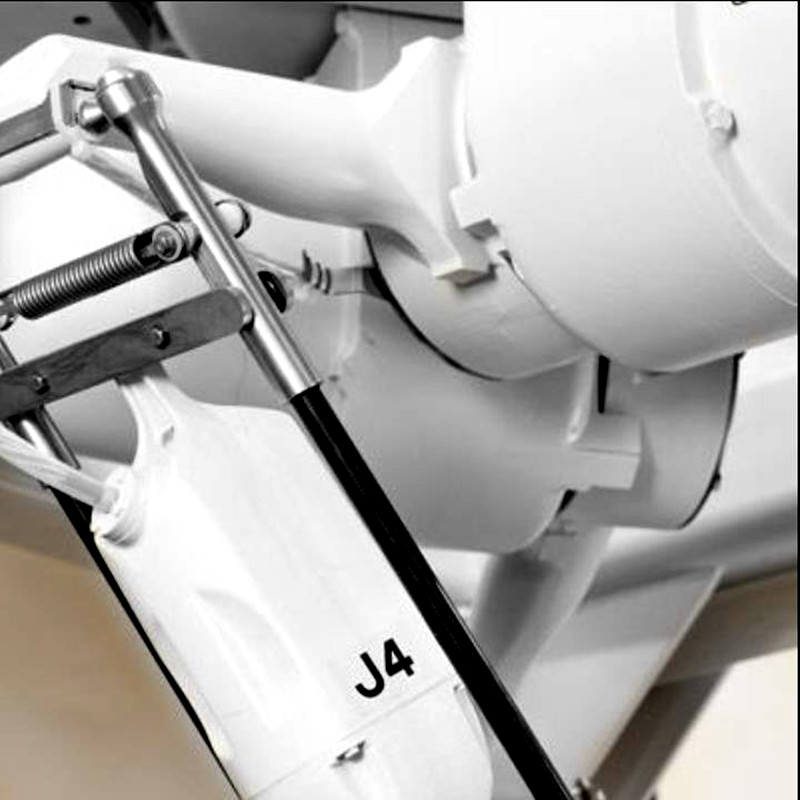

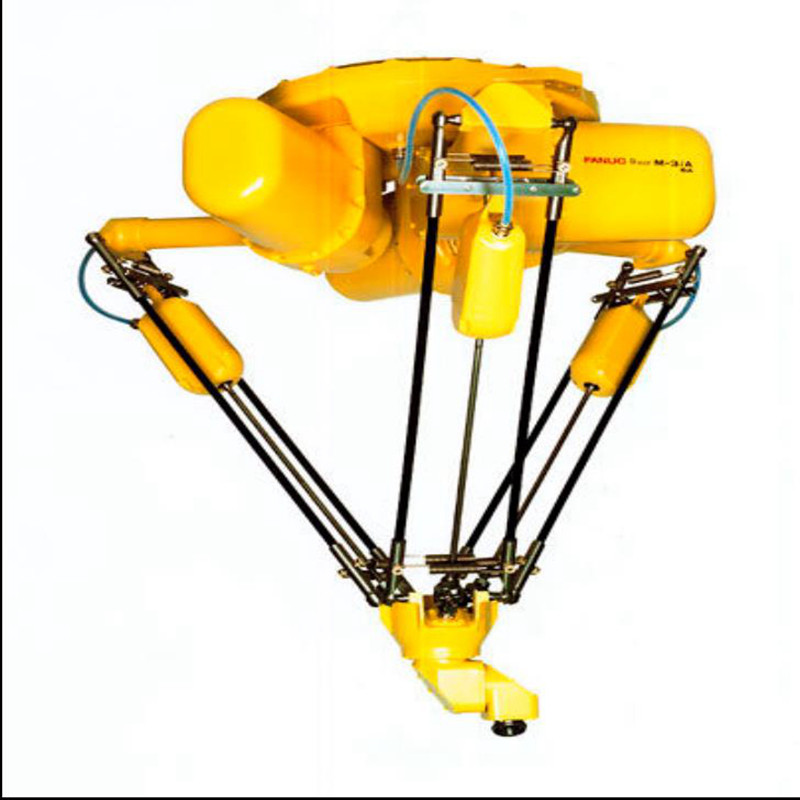

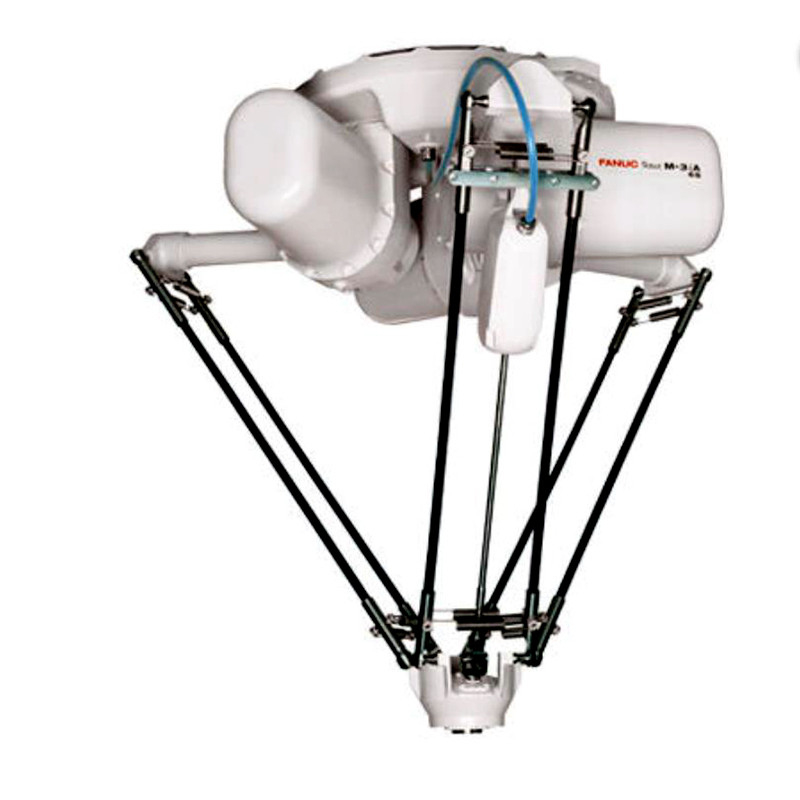

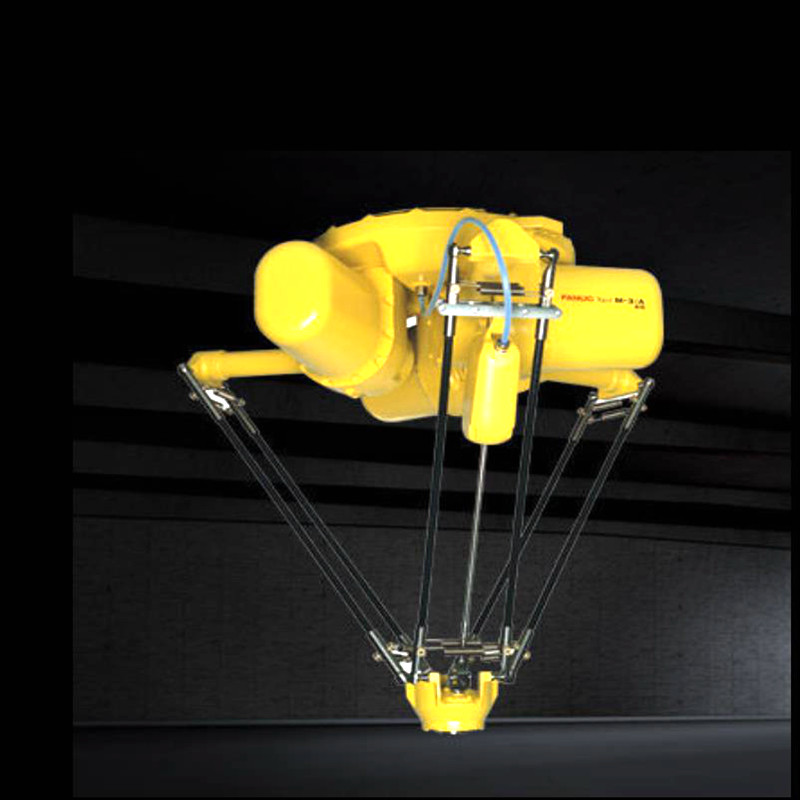

6 axes industrial Robot assembling robotic arm M-3iA/6A 0
6 axes industrial Robot assembling robotic arm M-3iA/6A 1
6 axes industrial Robot assembling robotic arm M-3iA/6A 2
6 axes industrial Robot assembling robotic arm M-3iA/6A 3
6 axes industrial Robot assembling robotic arm M-3iA/6A 4
Certifications
6 axes industrial Robot assembling robotic arm M-3iA/6A 5
Packing & Delivery
6 axes industrial Robot assembling robotic arm M-3iA/6A 6
FAQ
6 axes industrial Robot assembling robotic arm M-3iA/6A 7
Our Company
6 axes industrial Robot assembling robotic arm M-3iA/6A 8
Related Products
6 axes industrial Robot assembling robotic arm M-3iA/6A 9
6 axes industrial Robot assembling robotic arm M-3iA/6A 10
6 axes industrial Robot assembling robotic arm M-3iA/6A 9
M-3iA/6S Intelligent Industrial Robot for FANUC


M-3iA/6A Intelligent Industrial Robot for FANUC


M-3iA/12H Intelligent Industrial Robot for FANUC
