Place of Origin:
Chinese
Brand Name:
ABB
Certification:
ce
Model Number:
ABB IRB 1100
Contact Us

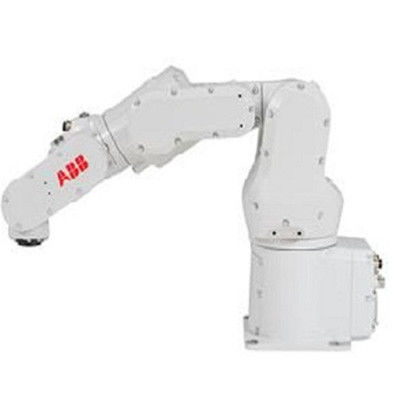

ABB IRB 1100 the most compact robot arm with 6 axis application on Assembly & Testing robot arm for new model
Main Specifications
Model:IRB 1100
Maximum reach:500 mm
Maximum payload:4kg
Pose repeatabilit: ± 0.01mm
Number of axes :6
Weight:21kg
Protection rating:Standard IP40. Option IP67
| Production Name | ABB robot arm 6 axis IRB 1100 |
| Model | IRB 1100-4/0.5 |
| Application | Assembly &Testing |
| Maximum reach | 500 mm |
| Maximum payload | 4 kg |
| Pose repeatability (ISO 9283) | ± 0.01 mm |
| Number of axis | 6 |
| Mounting position | any angle |
| Footprint | |
| Weight | 21 kg |
| Protection rating | IP67 |
| Controller | OmniCore C30/C90XT |
| Motion range | |
| A1 | 230° to -230° |
| A2 | 113° to -115° |
| A3 | 55° to -205° |
| A4 | 230° to -230° |
| A5 | 120° to -125° |
| A6 | 400° to -400° |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
