Fisher Control Valves is a brand under Emerson Process Management , with a century-long history in delivering top-notch control valve solutions. These control valves are highly sought-after in industries ranging from oil and gas to chemical and electric power, owing to their excellent quality and functionality.
With a track record spanning more than 100 years, Fisher Control Valves have been at the forefront in offering expertly designed control valve systems that meet and even exceed the demands of numerous industrial applications. These control valves are innovative, efficient and incorporate cutting-edge technology, ensuring reliable and safe operation, every time.
At Fisher, we pride ourselves in offering tailor-made solutions that are best suited for your application. Our control valves are designed to meet different specifications and requirements, including those customized for specific working environments.
Dynamic Stability and Frequency Response
The Fisher control valve boasts excellent dynamic stability and frequency response capabilities. Its shallow membrane cover on the air supply side allows for a smaller chamber volume, resulting in faster response times. With this design, the control valve can respond quickly and effectively under various operating conditions.
Thrust and Service Life
The Fisher control valve can withstand high thrust, and its molded diaphragm can provide thrust corresponding to the size of the diaphragm. Its construction, made of strong, thick-walled cast iron and steel, provides a stable and corrosion-resistant structure that can maintain deformation under overpressure conditions. This results in an extended service life for the control valve.
Suitability for Low Temperature Conditions
The 657 and 667 diaphragm actuators come in various sizes and are available in enhanced product specifications that allow for use in temperatures as low as -50°C. A positioner is recommended to ensure the responsiveness of the actuator at temperatures below -40°C.
Rigid Connection Design
The Fisher control valve features a clamp stem connection design that delivers reliable motion and is easy to install. Without the use of a connecting rod, there is no problem of connection gaps or inaccurate valve positioning.
| Technical Parameters | Values |
|---|---|
| Operating Temperature | Standard Temperature |
| Valve Size | NPS 1, NPS 2 |
| Material | Stainless steel |
| Critical Service | Dirty Service, Erosive |
| Flow Characteristics | Equal Percentage |
| Output characteristic | Linearity |
| Pressure Class | ANSI CL150, ANSI CL300, ANSI CL600, ANSI CL1500 |
| Warranty period | 1 Year |
| Shutoff Class | Class IV (FCI 70-2) |
| Gas supply pressure range | 140 To 700 KPa |

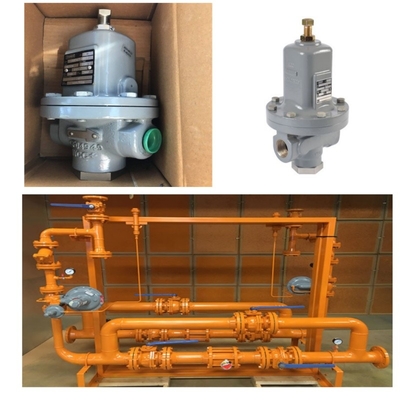

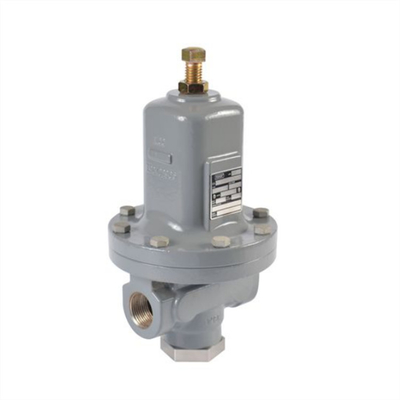

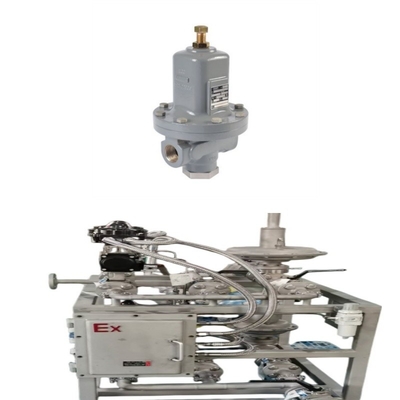

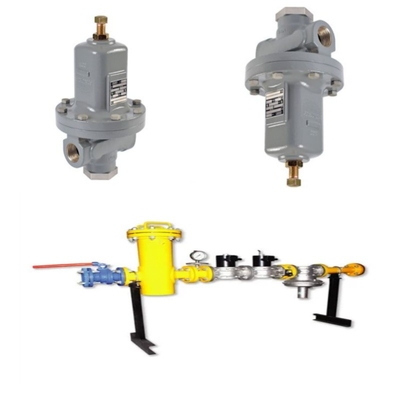

| Pressure regulator | MR95/MR95L/MR95H/MR95HP/MR95HT/MR95LD/MR95HD/MR95HDP |
Fisher control valves are designed to cater to a variety of control valve application needs. With its extensive range of actuator types and sizes, it is a one-stop solution for all your requirements. The Fisher control valves also offer a vast range of spring stiffness, travel limiter, and manual devices to ensure that the valves' applications are not limited to any specific range.
Whether you need a control valve for your chemical, petrochemical, oil and gas, or water treatment plant, Fisher control valves provide precisely what you need. The vast range of applications that Fisher control valves can cater to makes it an ideal choice for various industries.
If you are looking for a highly versatile and efficient control valve, Fisher control valves are undoubtedly the way to go. Its ability to cater to various industries' needs makes it the perfect solution for all your control valve requirements.
The Pneumatic Control Valve product technical support and services include:
- Installation and commissioning guidance
- Troubleshooting assistance
- Maintenance and repair services
- System optimization consultation
- Technical training and education
