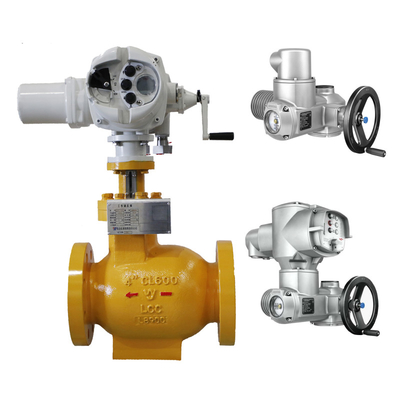

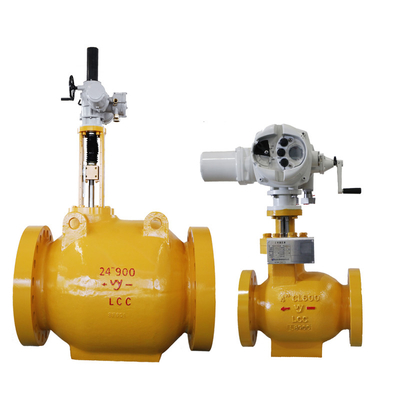

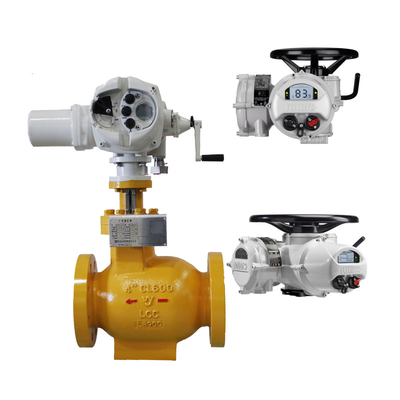

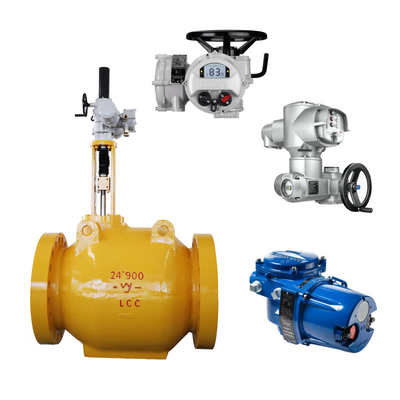

The A2000 axial flow control valve is a fully pressure-balanced sleeve control valve. It features a streamlined and uniformly symmetrical free-flow path, which reduces the impact of local instability of the valve.
This valve can be widely used for various applications including pressure regulation, speed control, turbulence reduction, and jet stream management. It enhances flow regulation in pipelines conveying natural gas, liquefied gas, crude oil, refined oil, and various chemical products.
With excellent pressure resistance and high flow capacity, the A2000 valve is particularly suitable for applications with significant pulsating pressure. It can effectively manage capacity issues even at the compressor outlet while improving control stability and reducing noise generation.
In a completely pressure-balanced spool design, the fluid medium flows uniformly through the flow sleeve. This results in minimal dynamic force from the medium on the spool and negligible impact on the operating force of the actuator from the pressure difference between the two sides of the valve. This feature allows even large-diameter valves to operate efficiently with smaller actuators, even under high-pressure drop conditions.
| End Connection Size | 1/2" - 24" |
| Handwheel Operation | Manual |
| Warranty | 1 Year |
| Actuator Control Signal | 4-20mA, 0-10V, On/Off |
| Set Pressures | Up To 7250 Psig [500 Barg] |
| Valve Controlled | SCSSV/SSV |
| Material | Alloy/Steel |
| Fuel | Diesel |
| Operating Temperature | Standard Temperature: –30 °C To +70 °C |
| Processing Type | Casting |
Wuzhong Instrumentation Co., Ltd., known as the largest regulating valve manufacturer in China, embarked on a significant collaboration in 2001. The company joined hands with PetroChina Huayu Natural Gas Co., Ltd. to localize major equipment. This strategic partnership aimed to enhance the development and production of essential instruments.
A major milestone was reached in 2002 with the successful development of the A2000 axial flow valve. This breakthrough innovation positioned the company as a leader in the industry. The valve was successfully integrated at the NgaMenKou end station of the Shaan-Beijing pipeline, where two DN500 ANS1400 valves were installed. Over the next three years, a meticulous development process further refined the ANS1400 valve's performance and functionality.
Subsequently, the ANS1400 valve series was born, offering a range of products that found extensive applications in various projects. These valves were widely deployed in twelve sub-transmission stations of the eastern section of the second line of the West-East Natural Gas Pipeline, as well as in gas pipeline projects in Hebei Zhuozhou, Shijiazhuang, Jiangsu Jintan, Hongkong China, and Chongqing Gas Group. The company's presence extended to over 50 pipeline projects.
Our Product Technical Support and Services for Electric Control Valves include:
- Installation guidance and support
- Troubleshooting assistance
- Maintenance recommendations
- Repair services
- Software updates and upgrades
- Training programs for operating the control valves efficiently
Our dedicated team is committed to providing comprehensive support to ensure the optimal performance of your Electric Control Valves.
Product Packaging and Shipping for Electric Control Valves:
Our Electric Control Valves are carefully packaged to ensure safe delivery to our customers. Each valve is securely placed in a protective box with ample padding to prevent any damage during transit.
For shipping, we use reliable carriers to deliver your order in a timely manner. You can track your shipment using the provided tracking number to know the status of your delivery.
