Masoneilan SVI3 Digital Valve Positioner Intelligent Valve Control with HART & Advanced Diagnostics

1 Set
MOQ
Negotiation
Price
Masoneilan SVI3 Digital Valve Positioner Intelligent Valve Control with HART & Advanced Diagnostics
Features Gallery Product Description Request A Quote
Features
Specifications
Set Point: 4 To 20 MA
Valve Travel: 3.6 To 300 Mm
Opening Angle: 24 To 100°
Material: Steel
Communication: HART® Field Communication Protocol
Screwed: NPT 1/4" Through 2" (20 Through 50 Mm)
Highlight:

Intelligent digital Valve Positioner

,

Advanced Diagnostics digital Valve Positioner

,

HART SVI3 digital Valve Positioner
Basic Infomation
Place of Origin: America
Brand Name: Masoneilan
Certification: CE EAC
Model Number: SVI 3
Payment & Shipping Terms
Packaging Details: Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time: 7 to 20 Work days
Payment Terms: L/C,T/T,D/A,D/P,MoneyGram
Supply Ability: 50 Set Per Month
Product Description

Meta Description & Product Overview

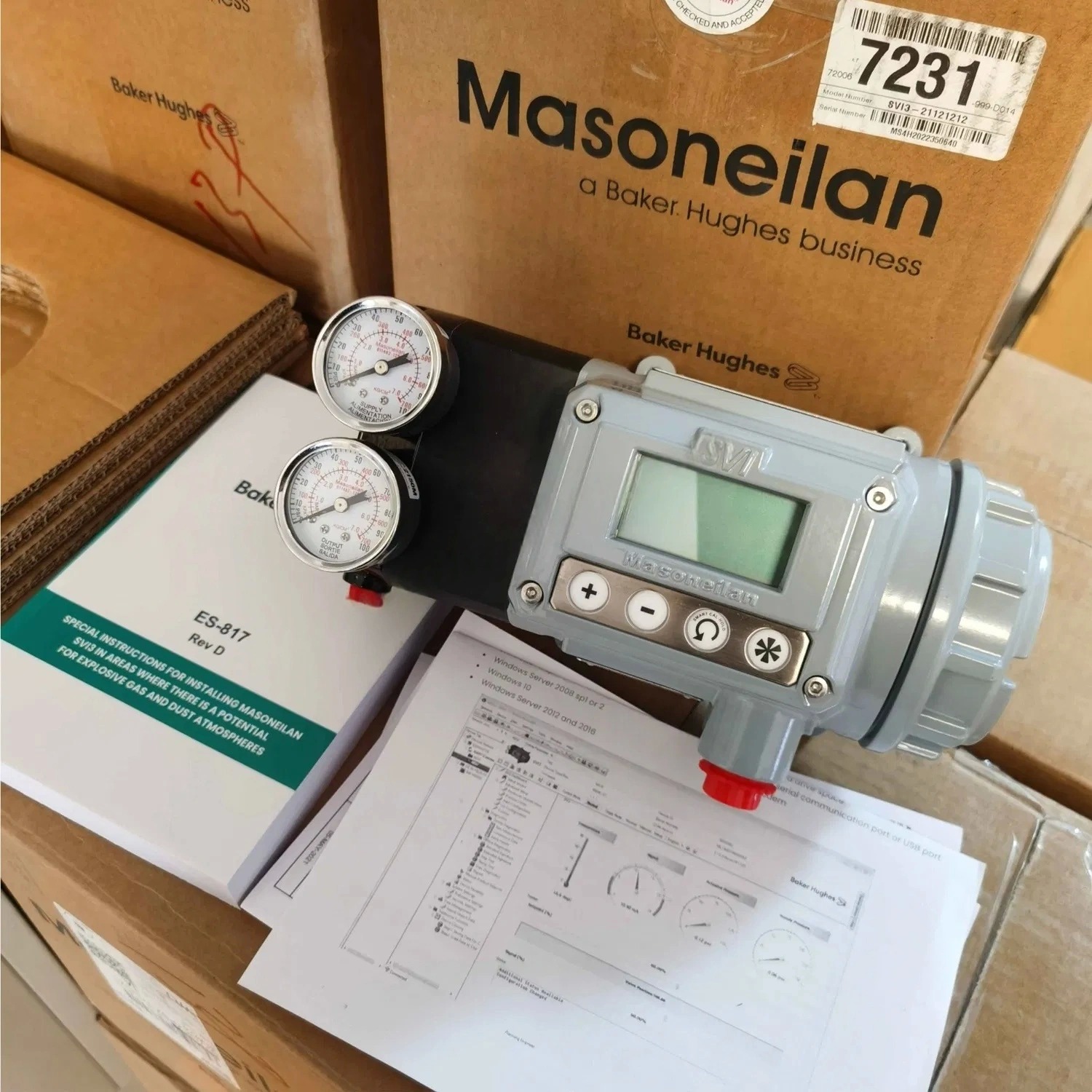

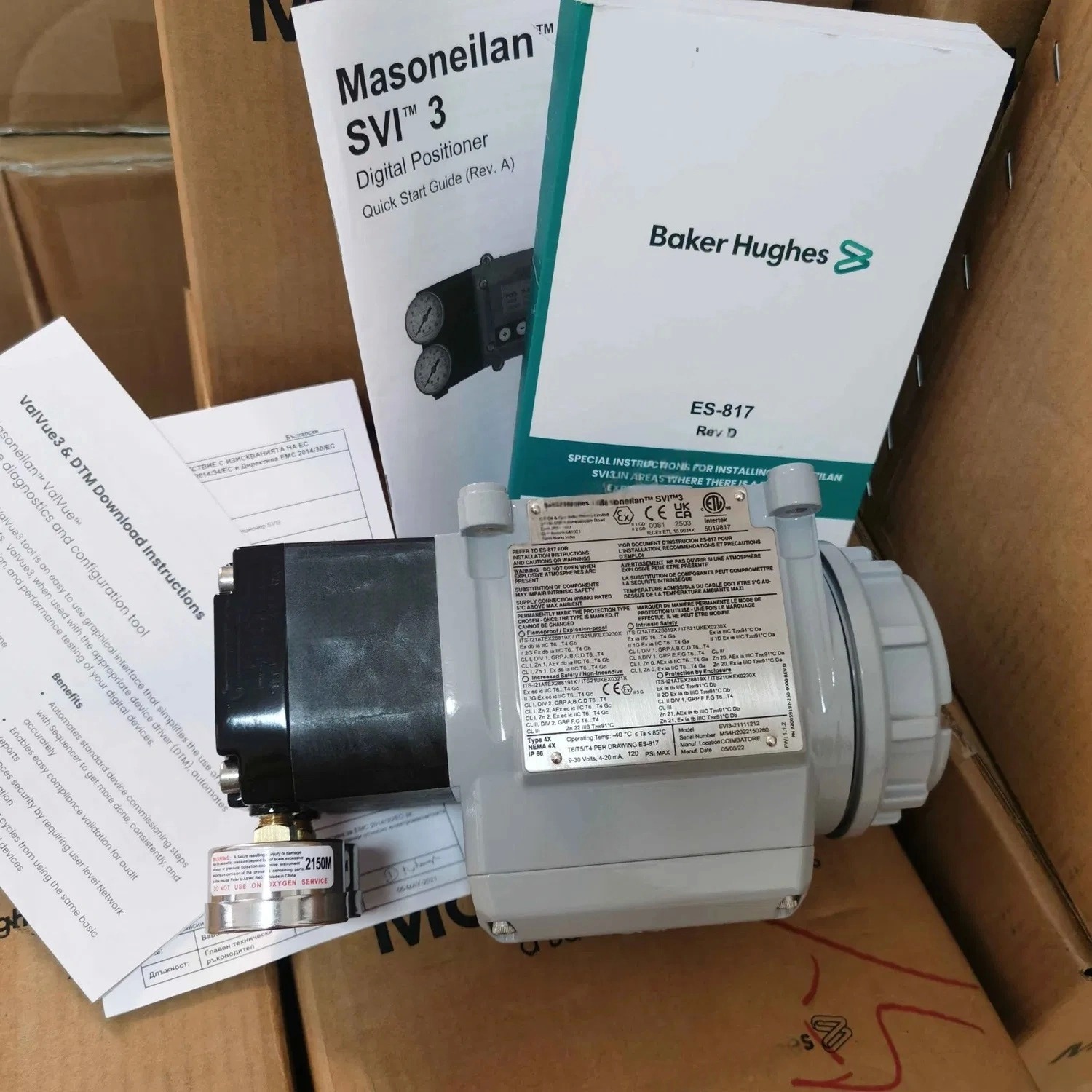

The Masoneilan SVI3 Digital Valve Positioner is a next-generation smart positioner designed to deliver exceptional performance, intelligent diagnostics, and simplified setup in demanding process environments. the SVI3 supports HART® 7 communication and provides precise control for both linear and rotary valve actuators. Its intuitive interface, rugged construction, and real-time monitoring capabilities make it a leading solution for advanced valve automation in industries such as oil & gas, power, refining, and chemicals.



Key Features & Benefits


  • Precision Control: Enhanced valve positioning accuracy with advanced PID control algorithms

  • HART 7 Communication: Seamless integration with plant asset management systems and remote configuration

  • Easy Commissioning: Auto-calibration and user-friendly LCD with push-button setup

  • Advanced Diagnostics: Monitors valve friction, travel deviation, air supply, actuator performance, and more

  • Smart Alerts: Predictive maintenance notifications reduce unplanned downtime

  • Compact, Durable Design: IP66-rated housing suitable for harsh environments

  • Flexible Mounting: Supports both linear and rotary actuators without adapters

  • Fail-Safe Options: Configurable failsafe modes ensure safety in the event of signal loss



Technical Specifications


Parameter Specification
Input Signal 4–20 mA with HART® 7
Positioning Accuracy ≤0.2% of full travel
Repeatability ≤0.1%
Communication HART 7 (Wireless option available)
Supply Pressure 1.4–6.9 bar (20–100 psi)
Response Time ≤100 ms
Auto-Calibration Yes (fully automated)
Display LCD with multi-language interface
Diagnostics Functions Real-time valve condition monitoring, alerts
Mounting Types Linear & rotary (standard NAMUR mounts supported)
Ambient Temperature Range –40 °C to +85 °C
Housing Protection IP66 / NEMA 4X
Hazardous Area Certifications ATEX, IECEx, CSA, FM (Explosion-proof models available)
