Home /Products/Other/ABB IRB 1600 as Manipulator for Handling And Packaging Robot 6 Axis Robot

ABB IRB 1600 as Manipulator for Handling And Packaging Robot 6 Axis Robot

1 set
MOQ
US $20123.00 - 25872.00/ Set
Price
ABB IRB 1600 as Manipulator for Handling And Packaging Robot 6 Axis Robot
Features Gallery Product Description Request A Quote
Features
Specifications
Protection: Standard IP54
Mounting: Any Angle
Controller: IRCS Single Cabinet/IRCS Compact
Position Repeatability: 0.02mm
Function: Handling And Packaging
Relative Humidity: Max.95%
Emission: EMC/MEI Shielded
Payload: 6kg
Armload: 30.5kg
Reach: 1450mm
Highlight:

Reach 1450mm ABB Robot Arm

,

Payload 10kg ABB Robot Arm

,

6 Axis ABB Robot Arm
Basic Infomation
Place of Origin: China
Brand Name: ABB
Model Number: IRB 1600-10/1.45
Payment & Shipping Terms
Packaging Details: ONE ABB large industrial total station robotic 6 axis IRB1600-10/1.45 material handling machine packing with fumigation wooden frame, WG:450KG(>VG)
Delivery Time: 30-60 work days
Payment Terms: L/C, T/T
Supply Ability: 100 pieces per month
Product Description

Industrial Robot Arm Handling and Packaging Robot Reach 1450mm Payload 10kg Armload 30.5kg 6 Axis Robot China

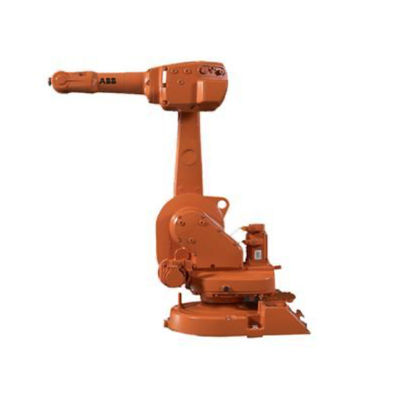

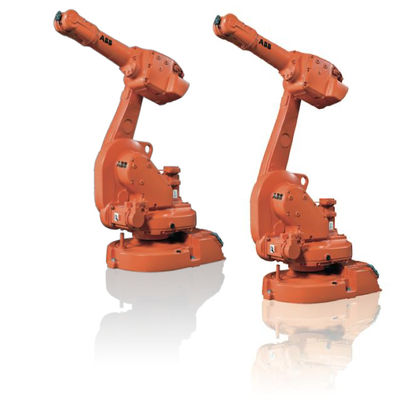

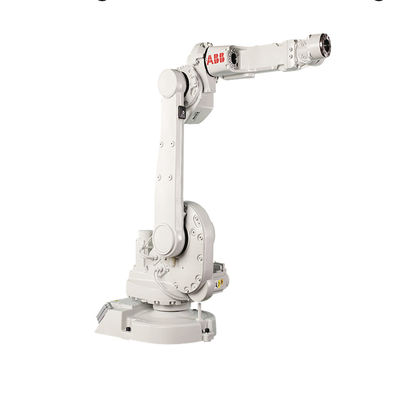

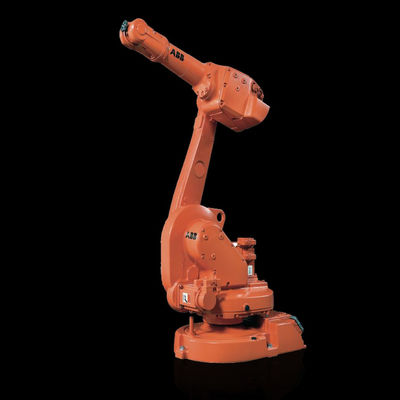

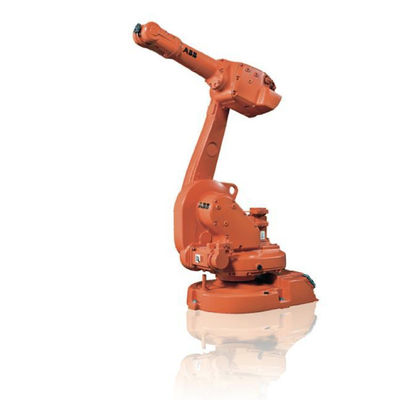

ABB IRB 1600 as Manipulator for Handling And Packaging Robot 6 Axis Robot 0ABB IRB 1600 as Manipulator for Handling And Packaging Robot 6 Axis Robot 1ABB IRB 1600 as Manipulator for Handling And Packaging Robot 6 Axis Robot 2ABB IRB 1600 as Manipulator for Handling And Packaging Robot 6 Axis Robot 3ABB IRB 1600 as Manipulator for Handling And Packaging Robot 6 Axis Robot 4

Specification

Robot version Reach(m) Payload(kg) Armload(kg)
IRB 1600-6/1.2 1.2 6 30.5
IRB 1600-6/1.45 1.45 6 30.5
IRB 1600-10/1.2 1.2 10 20.5
IRB1600-10/1.45 1.45 10 20.5
Number of axes

6+3 external

(up to 36 with Multi-move)
Protection

Standard IP54

Option Foundry Plus 2 (IP67)
Mounting Floor,wall,shelf,tilted,inverted
Controller IRCS Single Cabinet/IRCS Compact



Performance(according to ISO 9283)
  Position   Path
repeatability   repeatability
IRB 1600-6/1.2 0.02mm   0.13mm
IRB 1600-6/1.45 0.02mm   0.19mm
IRB 1600-10/1.2 0.02mm   0.06mm
IRB1600-10/1.45 0.05mm   0.13mm

Technical information

Electrical Connections
Supply voltage 200-600v,50-60hz
Energy consumption 0.58kw
Physical
Robot base 484x648mm
IRB 1600-6/1.2 1069mm
IRB 1600-10/1.2 1069mm
IRB 1600-10/1.45 1294mm

IRB1600-10/1.45

Robot weight

1294mm

250kg
Environment
Ambient temperature for mechanical unit
During operation +5°C(41°F)to +45°C(113°F)
During transportation and storage -25°C(-13°F)to +55°C(131°F)
During short periods(msx.24h) Up to +70°C(158°F)
Relative humidity Max.95％
Safety Double circuits with supervisions,emergency


Stops and safety functions,3-position

Enable device
Emission EMC/MEI shielded

IRB 1600 The highest performance 10 Kg robot

Performance is often a trade off, optimazing for speed accuracy. With ABB's 1600, you don't have to choose. The robot's cycle times are shorter, sometimes half that of other robot, allowing you to increase throughput. Meanwhile, you will enjoy the work piece quality that only an ABB robot can offer. Extra ecerything.

Main applications: Assembly/Arc Welding/ Material Handling/Machine Tending/Material Removal/Cleaning/Spraying/Dispensing/Packing

ABB IRB 1600 as Manipulator for Handling And Packaging Robot 6 Axis Robot 5



Our Service

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
