Home /Products/Other/ABB IRB 1200 Manipulator as Material Assembly and Packing 6 Axis Robot Arm

ABB IRB 1200 Manipulator as Material Assembly and Packing 6 Axis Robot Arm

1 set
MOQ
US $21148.00 - 22032.00/ Set
Price
ABB IRB 1200 Manipulator as Material Assembly and Packing 6 Axis Robot Arm
Features Gallery Product Description Request A Quote
Features
Specifications
Robot Version: IRB 1200-7/0.7
Reach: 700mm
Payload: 7Kg
Armload: 0.3Kg
Protection: Standard Robot(IP40) Optional

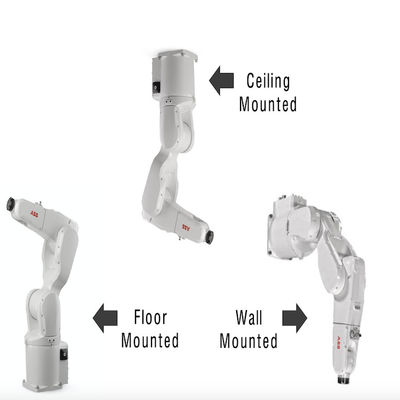

Mounting: Any Angle
Weight: 54Kg
Controller: IRC5 Compact/IRC5 Single Cabinet
Position Repeatability: 0.025mm
Accuracy: 0.02mm
Highlight:

6 Axis Articulated Robot Arm

,

Payload 7kg Articulated Robot Arm

,

Reach 700mm Articulated Robot Arm
Basic Infomation
Place of Origin: China
Brand Name: ABB
Model Number: IRB 1200-7/0.7
Payment & Shipping Terms
Packaging Details: ONE ABB large industrial total station robotic 6 axis IRB1200-7/0.7 material handling machine packing with fumigation wooden frame, Total WG:110KG(>VG)
Delivery Time: 30-60 work days
Payment Terms: L/C, T/T
Supply Ability: 100 pieces per month
Product Description

ABB IRB 1200 Manipulator as Material Assembly and Packing 6 Axis Robot Arm 0ABB IRB 1200 Manipulator as Material Assembly and Packing 6 Axis Robot Arm 1ABB IRB 1200 Manipulator as Material Assembly and Packing 6 Axis Robot Arm 2ABB IRB 1200 Manipulator as Material Assembly and Packing 6 Axis Robot Arm 3ABB IRB 1200 Manipulator as Material Assembly and Packing 6 Axis Robot Arm 4

Specification

Robot version Reach(m) Payload(kg) Armload(kg)
IRB 1200-7/0.7 0.7 7 0.3
IRB 1200-5/0.9 0.9 5 0.3
Protection Standard robot(IP40) or IP67,Foundry Plus 2 based on IP67,Food Grade Lubricant and Clean Room(ISO class 3)based on IP67
Mounting Any angle
Controllers IRC5 compact/IRC5 single cabinet
Integrated signal and power supply 10 signals on wrist
Integrated air supply 4 air on wrist(5 Bar)
Integrated ethernet One 100/10 Base-TX Ethernet port
Accuracy 0.02mm

Performance (according to ISO 9283)

Robot version

1 kg picking cycle

Reach(m)



 Payload(kg)
25x300x25 mm 0.42s 0.42s
Max.TCP Acceleration 35m/s*s 36m/s*s
Acceleration time 0-1m/s 0.06s 0.06s
Position repeatability 0.02mm 0.025mm

Applications:Assembly/Material Handling/Machine Tending/Laser Marking/Polishing/Die Casting/Packaging



ABB IRB 1200 Manipulator as Material Assembly and Packing 6 Axis Robot Arm 5
