ABB IRB2600 6 Axis Industrial Robot Arm Automatic Welding Robot

Basic Information
Place of Origin: China
Brand Name: ABB
Model Number: IRB 2600-12/1.65
Minimum Order Quantity: 1 set
Packaging Details: ONE ABB large industrial total station robotic 6 axis IRB2600-12/1.65 material handling machine packing with fumigation wooden frame, Total WG:450KG(>VG)
Delivery Time: 30-60 work days
Payment Terms: L/C, T/T
Supply Ability: 50 pieces per month
Function: Automatic Welding, Assembly And Packing Protection: Standard IP67
Position Repeatability: 0.04mm Path Repeatability: 0.14mm
Supply Voltage: 200-600V,50/60 Hz Energy Consumption: 3.4kw
Robot Base: 676x511mm Robot Height: 1382mm
Relative Humidity: Max.95% Emission: EMC/EMI Shielded
Max Payload: 12kg Max Reach: 1650mm
Robot Weight: 272kg
High Light:

Payload 12kg ABB Robot Arm

,

3.4kw ABB Robot Arm

,

EMI Shielded ABB Robot Arm

ABB IRB 2600 6 Axis Industrial Robot Arm Automatic Welding Robot

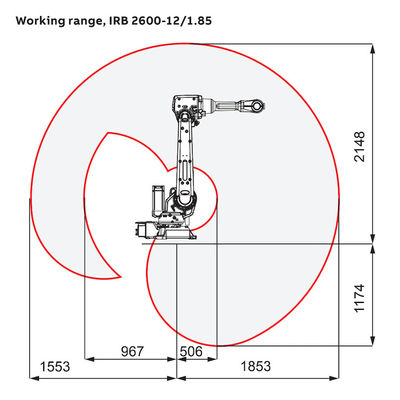

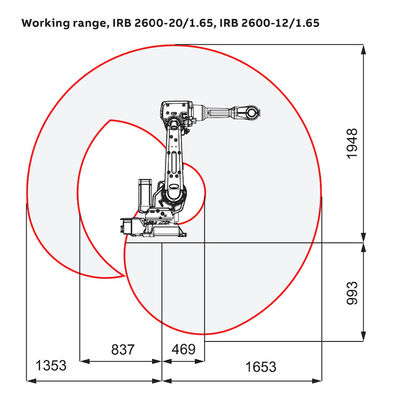

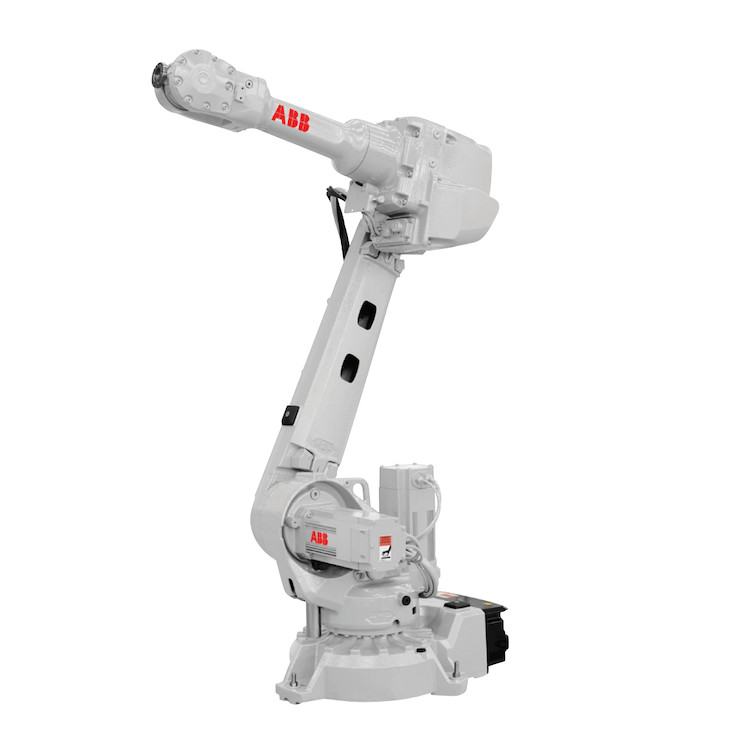

ABB IRB2600 6 Axis Industrial Robot Arm Automatic Welding Robot 0ABB IRB2600 6 Axis Industrial Robot Arm Automatic Welding Robot 1

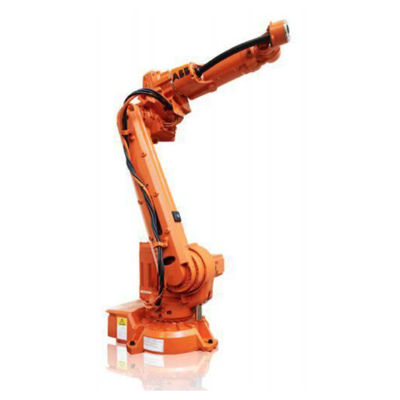

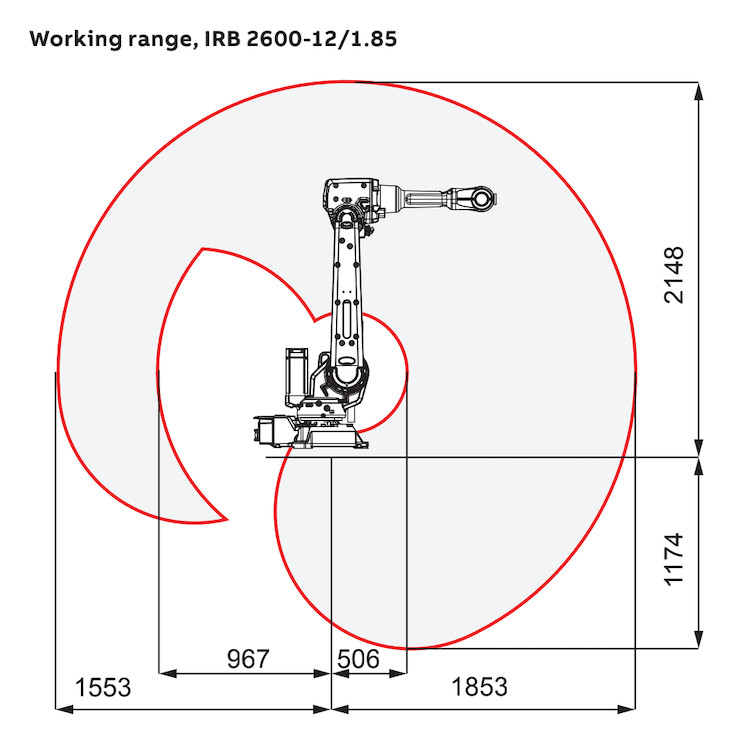

ABB IRB2600 6 Axis Industrial Robot Arm Automatic Welding Robot 2ABB IRB2600 6 Axis Industrial Robot Arm Automatic Welding Robot 3

Specification


Robot version Reach(m) Handing capacity(kg) Wrist torque(Nm)
      Axis 4&5 Axis 6
IRB 2600-20/1.65 1.65 20 36.3 16.7
IRB 2600-12/1.65 1.65 12 21.8 10
IRB 2600-12/1.85 1.85 12 21.8 10
Number of axes 6+3external(up to 36 withMultiMove)
Protection

Standard IP67;optional

Mounting Floor,wall,shelf,tilted,inverted
Controller IRC5 Single Cabinet


Performance(according to ISO 9283)



Position repeatability

Path repeatability

IRB 2600-20/1.65 0.04mm 0.13mm
IRB 2600-12/1.65 0.04mm 0.14mm
IRB 2600-12/1.85 0.04mm 0.16mm


Technical information

Electrical Connections
Supply voltage 200-600V,50/60 Hz
Energy consumption 3.4kw
Physical
Robot base 676x511mm
Robot height
IRB 2600-20/1.65 1382mm
IRB 2600-12/1.65 1382mm
IRB 2600-12/1.85 1582mm
Robot weight
IRB 2600-20/1.65 272kg
IRB 2600-12/1.65 272kg
IRB 2600-12/1.85 284kg
Environment
Ambinet temperature for mechanical unit
During operation +5°C(41°F)up to +50°C(122°F)
During transportation and storage -25°C(13°F)up to +55°C(131°F)
During short periods(max.24h) up to +70°C(158°F)
Relative humidity Max.95%
Noise level

Max.69dB(A) IRB 2600-12/1.85
Max.72dB(A) IRB 2600-20/1.65;IRB 2600-12/1.65

Safety Double circuits with supervision, emergency stops and safety functions 3-positions enable device
Emission EMC/EMI shielded
Options

Foundry Plus 2
