Spirax Sarco FT14 Ball Float Steam Trap Flanged for Industrial Steam Systems High Efficiency Condensate Drain

1
MOQ
535 dollars
Price
Spirax Sarco FT14 Ball Float Steam Trap Flanged for Industrial Steam Systems High Efficiency Condensate Drain
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Body Design Conditions: PN16
PMA Maximum Allowable Pressure: 16 Bar G @ 100 °C /232 Psi G @ 212 °F
TMA Maximum Allowable Temperature: 250 °C @ 13 Bar G /482 °F @ 189 Psi G
Minimum Allowable Temperature: -10 °C / 14 °F
PMO Maximum Operating Pressure: 14 Bar G /203 Psi G
TMO Maximum Operating Temperature: 250 °C @ 13 Bar G /482 °F @ 189 Psi G
Minimum Operating Temperature: 0 °C / 32 °F
Basic Infomation
Place of Origin: China
Brand Name: Spirax Sarco
Model Number: FT14
Document: FT14-TI-S02-26-EN.pdf
Payment & Shipping Terms
Packaging Details: Carton + Wooden crate + Protective packaging
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 600 units per year
Product Description
Product Overview

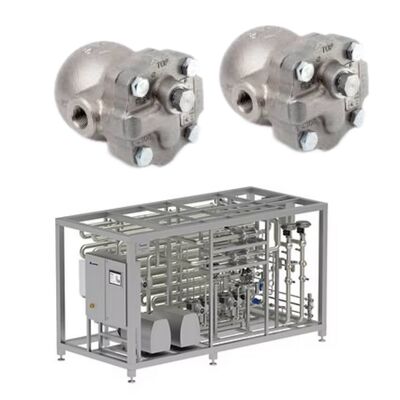

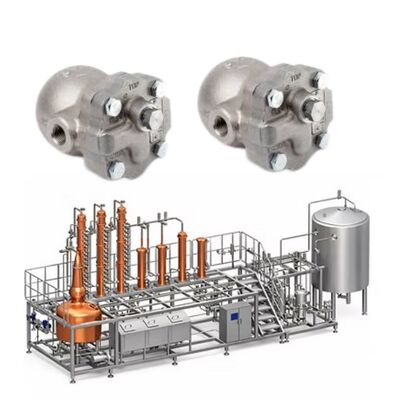

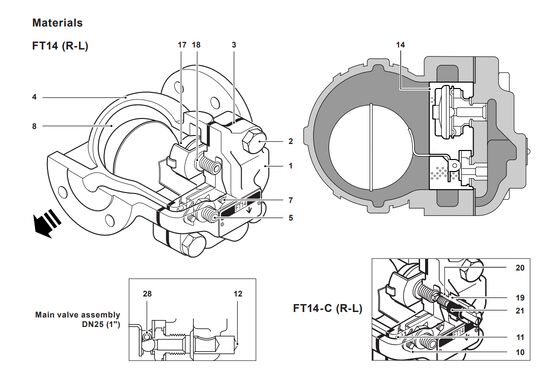

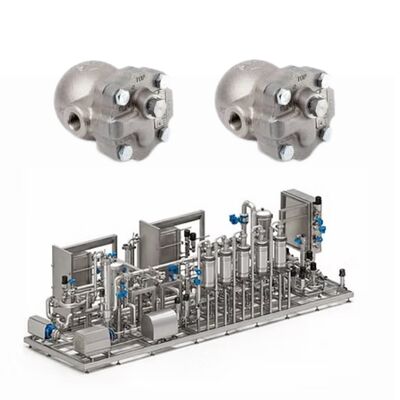

The Spirax Sarco FT14 is a robust SG iron-bodied ball float steam trap (Float & Thermostatic type) with stainless steel working internals and an integral automatic thermostatic air vent. Designed for flanged connections, it is available in sizes DN15, DN20 and DN25 (½", ¾", 1"). The trap can be maintained without disturbing the pipework and is supplied in horizontal flow configurations (R-L or L-R), with on-site adjustment possible for downward vertical flow applications.

Key Features
  • Integral thermostatic air vent for automatic air and non-condensable gas removal
  • Stainless steel internals and main valve for long service life
  • Maintainable in-line without removing from pipework
  • Optional steam lock release (SLR) via manually adjustable needle valve (FT14-C)
  • Optional integral strainer screen (FT14X-)
  • Suitable for superheated steam up to 150 °C at 0 bar g and 50 °C at 32 bar g
  • Complies with European Pressure Equipment Directive 2014/68/EU
Technical Specifications
Parameter Value
Sizes DN15, DN20, DN25 (½", ¾", 1")
Connections Flanged EN 1092 PN16, ASME 150, JIS/KS 20
Body material SG iron (EN-GJS-400-15)
Maximum operating pressure (PMO) 14 bar g (203 psi g) saturated steam
Maximum differential pressure 4.5 / 10 / 14 bar (FT14-4.5 / -10 / -14)
Maximum operating temperature 250 °C @ 13 bar g (482 °F @ 189 psi g)
Minimum operating temperature 0 °C (32 °F)
Cold hydraulic test pressure 24 bar g (348 psi g)
Capsule type BPG9/32
Applications

Applications Ideal for process steam lines, heat exchangers, steam mains, and heating systems in industrial plants, food & beverage,  and hospitals where reliable condensate removal and air venting are critical.

Frequently Asked Questions

Q: Can the flow direction be changed on site? A: Yes – the cover orientation can be adjusted for downward vertical flow applications.

Q: What is the purpose of the optional 'C’ designation? A: It adds a manually adjustable steam lock release (SLR) needle valve in addition to the standard air vent.

Q: Is the FT14 suitable for superheated steam? A: Yes, the BPG9/32 capsule is rated for 150 °C superheat at 0 bar g and 50 °C at 32 bar g.
