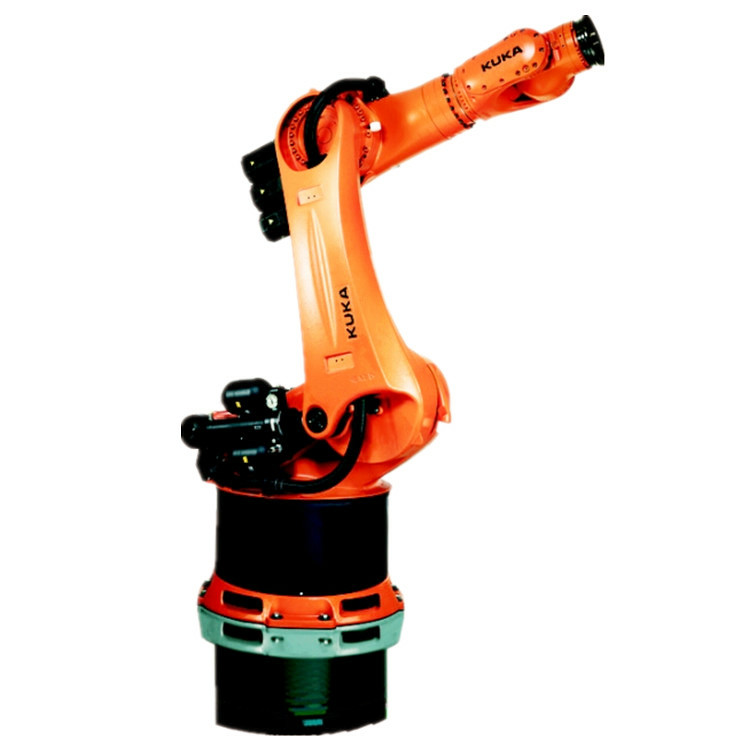

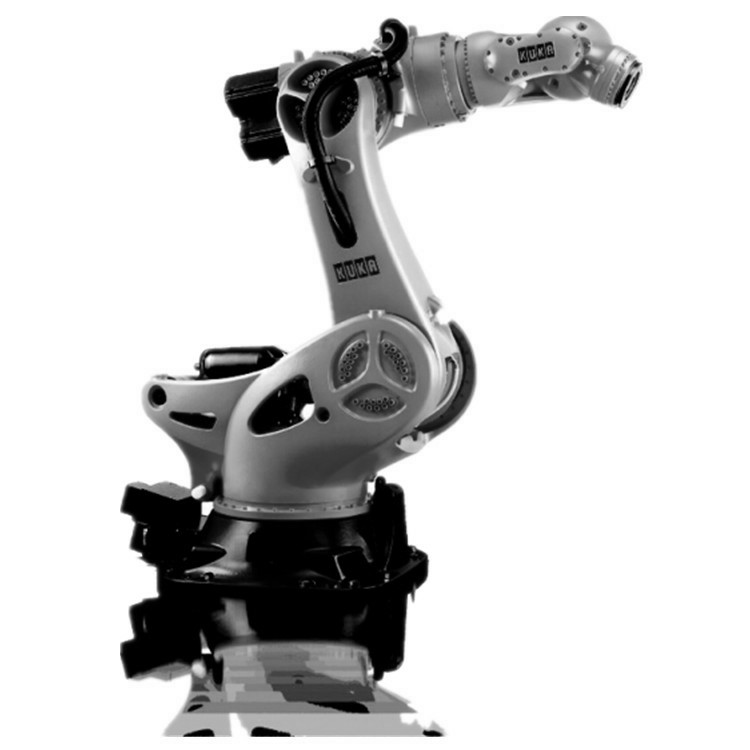

6 dof robot arm KUKA payload 500 kg reach 2830 mm arm robot milling robot
Main Specification
Self weight:2385Kg
Payload: 500Kg
Degree of freedom:6
Working radius:2830mm
Maximum speed:2.8 m/S
Pose repeatability:± 0.08mm
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
| Specification | |
| Maximum reach | 2826 mm |
| Maximum payload | 500 kg |
| Pose repeatability (ISO 9283) | ± 0.08 mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Footprint | 1050 mm x 1050 mm |
| Weight | approx. 2385 kg |
| Protection rating | IP65 |
| Controller | KR C4 compact |
| Teach pendant | KUKA smartPAD |
| Motion range | |
| A1 | ±185° |
| A2 | (-130° / 20°) |
| A3 | (100°- 144°) |
| A4 | ±350° |
| A5 | ±125° |
| A6 | ±350° |
