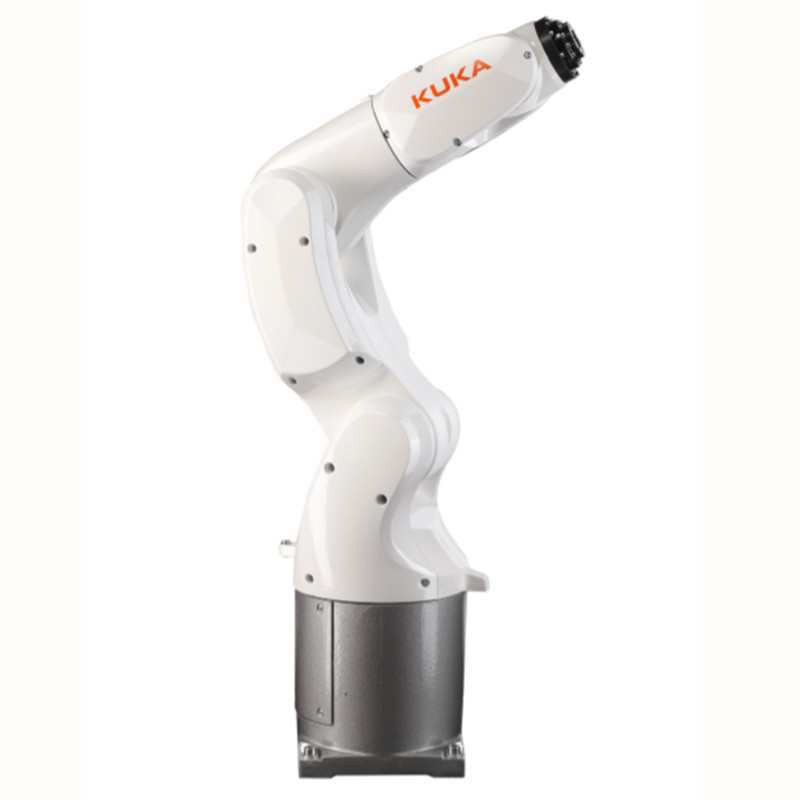

6 axis industrial robot and pcb assembly robot industrial

6 axis industrial robot and pcb assembly robot industrial

palletizing robot arm

industrial robotic arm

Place of Origin:

Shanghai, China (Mainland)

Brand Name:

KUKA

Contact Us

Request A Quote
Product Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertis
Condition:
New
After-sales Service Provided:
Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Product Name:
6 Axis Industrial Robot And Pcb Assembly Robot Industrial
Footprint:
179mm*179mm
Number Of Axes:
6
Maximum Reach:
541mm
Max Payload:
3 Kg
Pose Repeatability(ISO 9283):
±0.02mm
Mount Position:
Floor;ceiling;wall
Weight:
Approx. 26.5 Kg
Protection Rating:
IP40
Controller:
KR C4 Compact
Port:
Shanghai
Product Description

6 axis industrial robot and pcb assembly robot industrial



Product Description
Specification
Maximum reach 541 mm
Maximum payload 3 kg
Pose repeatability (ISO 9283) ± 0.02 mm
Number of axes 6
Mounting position Floor/ Ceiling/Wall
Footprint 179 mm x 179 mm
Weight approx. 26.5 kg
Protection rating IP40
Controller  KR C4 compact
Teach pendant  KUKA smartPAD

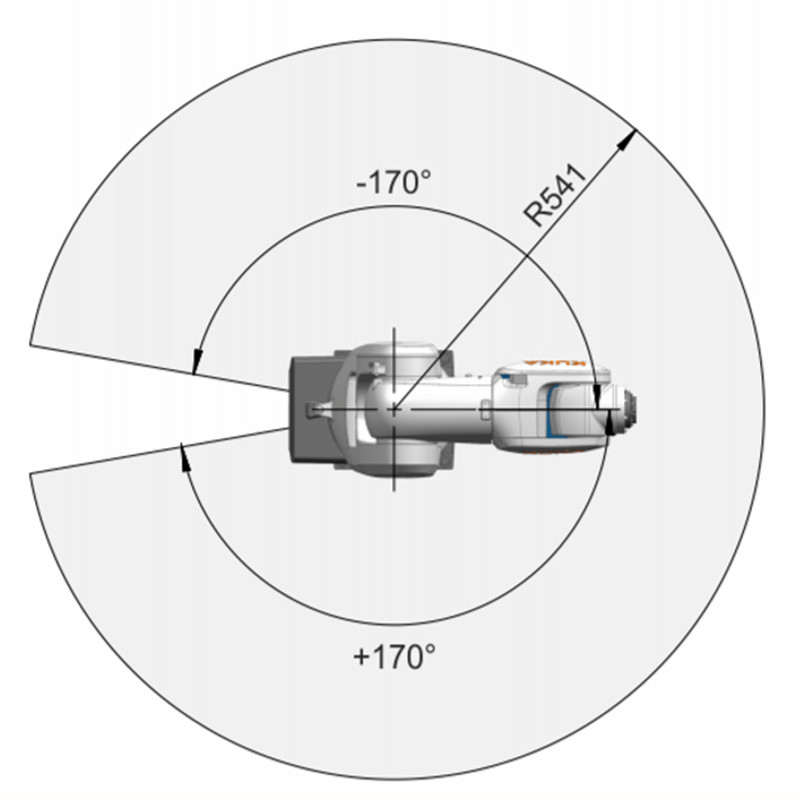

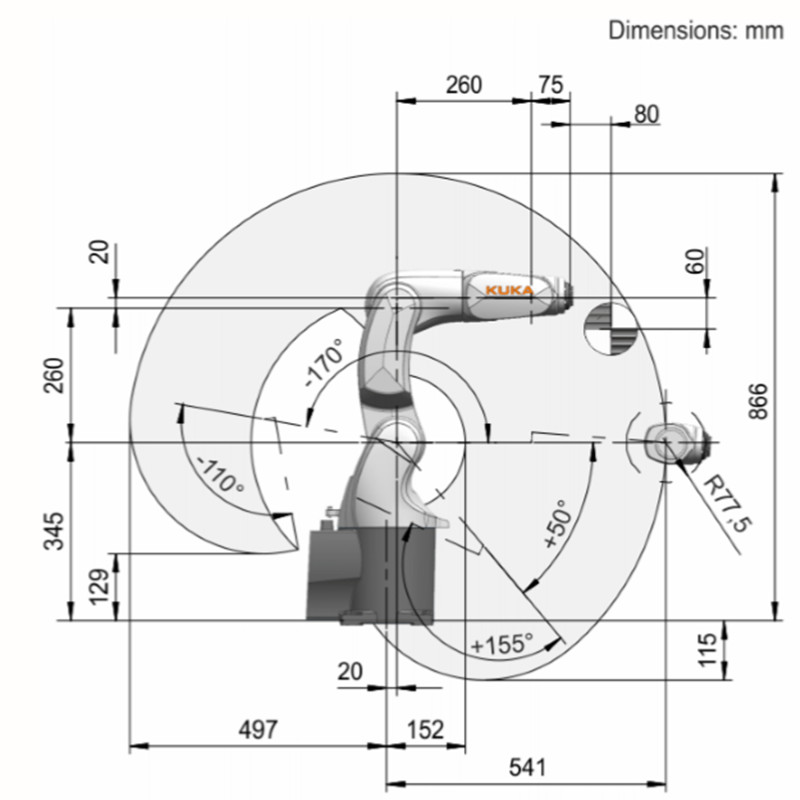

Motion range
A1 ±170°
A2 (-170° / 50°)
A3 (-110°- 155°)
A4 ±175°
A5 ±120°
A6 ±350°

6 axis industrial robot and pcb assembly robot industrial 06 axis industrial robot and pcb assembly robot industrial 16 axis industrial robot and pcb assembly robot industrial 26 axis industrial robot and pcb assembly robot industrial 3

6 axis industrial robot and pcb assembly robot industrial 4



Our Services

1.Swift delivery

 For common parts, we can deliver the goods within 3 days



2.Original products

 All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.



3.Quality Assurance



4.Technical Support

 Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

 Our staffs will keep 24h online and answer your question very quickly.
