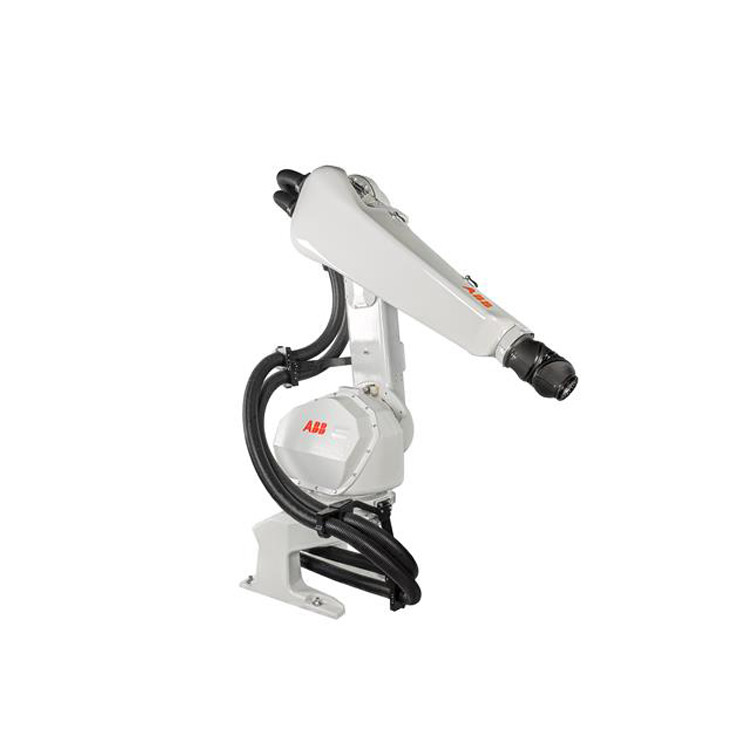

Industrial Automatic Robotic Arm IRB 5500-25 for ABB

Industrial Automatic Robotic Arm IRB 5500-25 for ABB

industrial welding robots

abb welding robot

Place of Origin:

Shanghai, China (Mainland)

Brand Name:


Contact Us

Request A Quote
Product Details
600kg, 600kg
One Year
Product Name:
Industrial Automatic Robotic Arm IRB 5500-25 For ABB
For Industry
IRB 5500-25
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Shanghai Port
Product Description
Product Description

Industrial  Automatic Robot Arm IRB 5500-25 for ABB


IRB 5500-25 - Industrial Robots From ABB Robotics

The Elevated Rail for the IRB 5500-25 reduces cycle times by as much as 10% on Stop & Go automotive paint lines.

The Elevated Rail for the IRB 5500-25 system is one of the most advanced paint solutions available on the market. Ideally suited for both interior and exterior automotive painting as well as other paint applications, the system expands the fl exibility of the IRB 5500-25 FlexPainter, which is the most versatile working envelope of any paint robot.

Designed for Stop & Go automotive paint lines, the Elevated Rail for the IRB 5500-25 increases the flexibility on these types of lines and allows for easy repositioning of the robot, guaranteeing an effective backup solution. It is able to accommodate most car body sizes which has the added advantage of potentially reducing the number of robots on a paint line. This added flexibility and the ability to place the robot in an optimal position directly contributes to reducing cycle times by up to 10%.

Based on more than 30 years of rail experience, the Elevated Rail for the IRB 5500-25 is the fifth generation of ABB rail systems for automotive paint shops.

The Elevated Rail for the IRB 5500-25, eliminates the need for additional engineering and other costs associated with installing an IRB 5500-25 on a third party rail. The integrated ABB dynamic modelling for all axes lowers energy consumption, increases accuracy and provides a fully synchronized and balanced paint robot motion.

The elevated rail sections (rail elements) are designed to be a self-carrying structure without the need for a beam support under the rail.

To maintain accuracy and prevent deflection only two pillars with up to 4.7meters (center-to-center) are employed with one or two robots on the rail.

The Elevated Rail for the IRB 5500-25 is fully supported for offline programming and 100% accurate cycle checks and path accuracy for all components (including the rail).

Features and benefits:
  • Extends unique features of IRB 5500-25, such as fully integrated process and motion- control and the special integration into the paint booth
  • Supports up to four robots on a single rail
  • Two pillar design accommodates most car body length configurations
  • Maximum flexibility for use with a variety of applications
  • Total height (dog house) 1123 mm
  • Numerous manipulator mounting positions on a single trolley design – tilted, upright, inverted
  • Protected cable chain – 300 mm cable chain integrated into the rail elements
  • Centralized lubrication - track rails and gear rack, and trolley roller
  • Automatic calibration sequence on axis 7 - sensor to detect the calibration position; no calibration tooling needed

Industrial  Automatic Robotic Arm IRB 5500-25 for ABB 0

Packaging & Shipping

We can delivery the cargo to transport company within 3 days upon receiving of the cargos from the plant
Any question, please do not hesitate to contact me.

Our Services

1.Swift delivery

 For common parts, we can deliver the goods within 3 days


2.Original products

 All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.


3.Quality Assurance


4.Technical Support

 Including inspection,repair and maintenance, we can give all kinds of technical support.


5.Quickly responce

 Our staffs will keep 24h online and answer your question very quickly.
