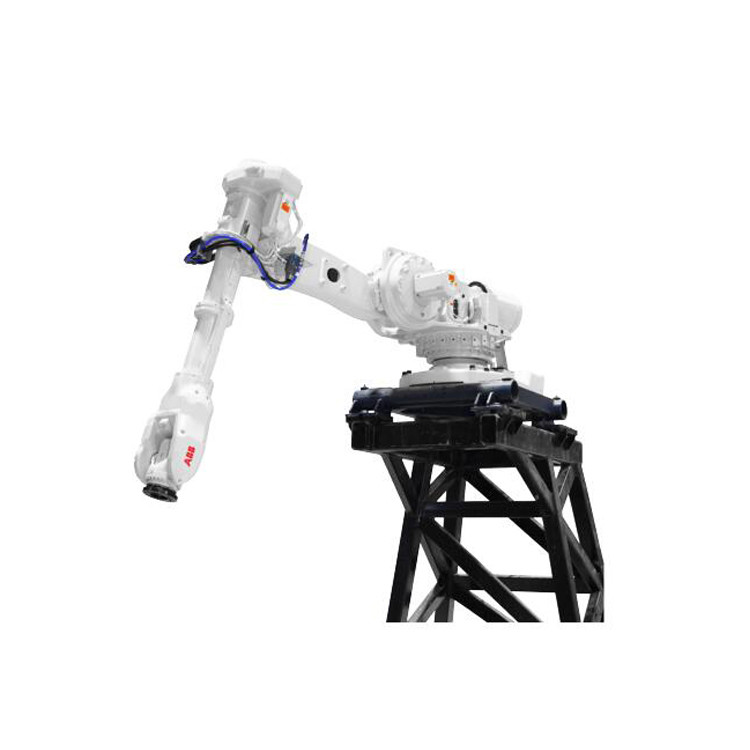

Iron Spot Robotic Arm Welding Machine , IRB 6650S - 200 / 3 Mobile Welding Robot

Iron Spot Robotic Arm Welding Machine , IRB 6650S - 200 / 3 Mobile Welding Robot

abb welding robot

robotic welding arm

Place of Origin:

Shanghai, China (Mainland)

Brand Name:

ABB

Contact Us

Request A Quote
Product Details
Voltage:
200-600 V
Dimensions:
Robot Base 1136 X 864 Mm
Weight:
2250 Kg
Usage:
Spot Welding, For Welding
Reach:
3m
Payload:
200kg
Position Repeatability RP (mm):
0.15
Path Repeatability RT (mm):
1
Type:
Other, Other
Port:
Shanghai Port
Product Description



6 Axis Iron Spot Welding Robot Arm IRB 6650S-200/3



Introduction

The IRB 6650S is the shelf robot form of the Power Robot family which offers a unique working envelope. It is capable of a full vertical and horizontal stroke motion, as well as an increased forward and downward reach.

This combination offers new possibilities to robot functions in numerous application areas.

IRB 6650S is reliable with a high production up time, fast with short cycle times and strong with maximized utilization. Its main applications are machine tending, material handling, spot welding and die casting.



SpotWelding
The IRB 6650S offers the possibility to improve robot density in framing stations; the key is to place the robots at different levels. The standard IRB 6700 robot can be mounted at floor level and the IRB 6650S be placed at about 1.5-2m above floor level.



By this the standard robots perform spot welding operations at the lower part of the car body and the IRB 6650S of the upper part of the car body. Thus making effi-cient use of space in the framing cell.

Robot Version Payload(kg) Number of axes Reach Controller
IRB 6650S-200/3 200 6 3m IRC5 Single cabinet, IRC5 Dual cabinet

Iron Spot Robotic Arm Welding Machine , IRB 6650S - 200 / 3 Mobile Welding Robot 0Iron Spot Robotic Arm Welding Machine , IRB 6650S - 200 / 3 Mobile Welding Robot 1
