This long arm Paint Mate model has an increased maximum reach but with the same 5 kg payload capacity as its model counterpart. Ideal for assembly and handling operations requiring increased reach even in hazardous environments.
1. Long arm design
This fast painter has a standard handling capacity of 5 kg and an increased reach of up to 892 mm.2. Flexible mounting

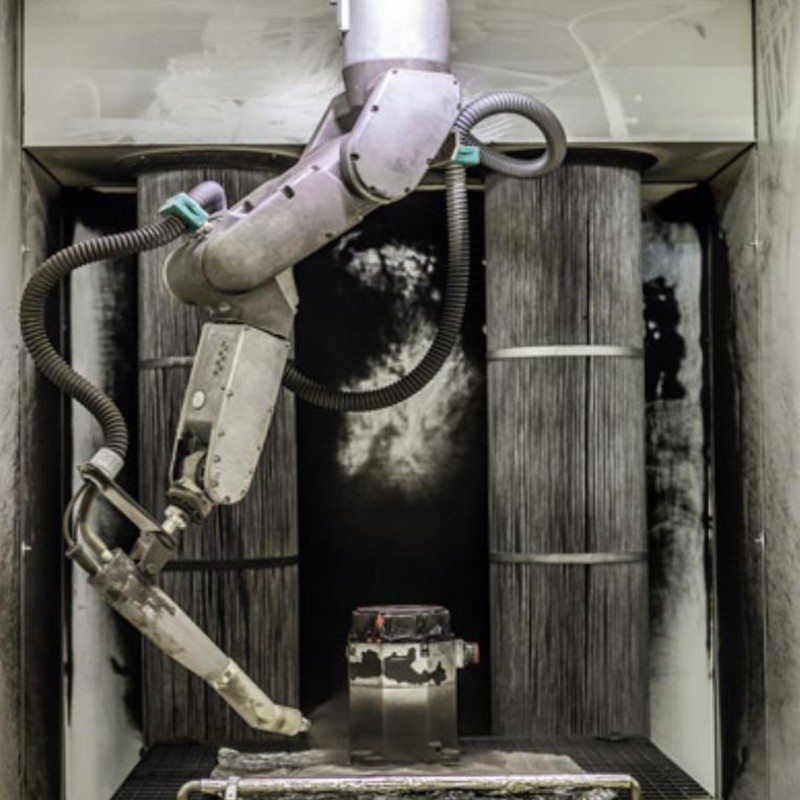

To get the most out of even the smallest of paint booths, this robot comes with floor, invert, angle and wall mounting options for increased locational versatility.1.iPendant™
Full colour, Internet-ready teach pendant for even easier programming and custom cell user interface design.2. Two standard software applications available
This model's Handling and PaintTool software options have been designed to make setting up and adjusting during production easy.
Product name
|

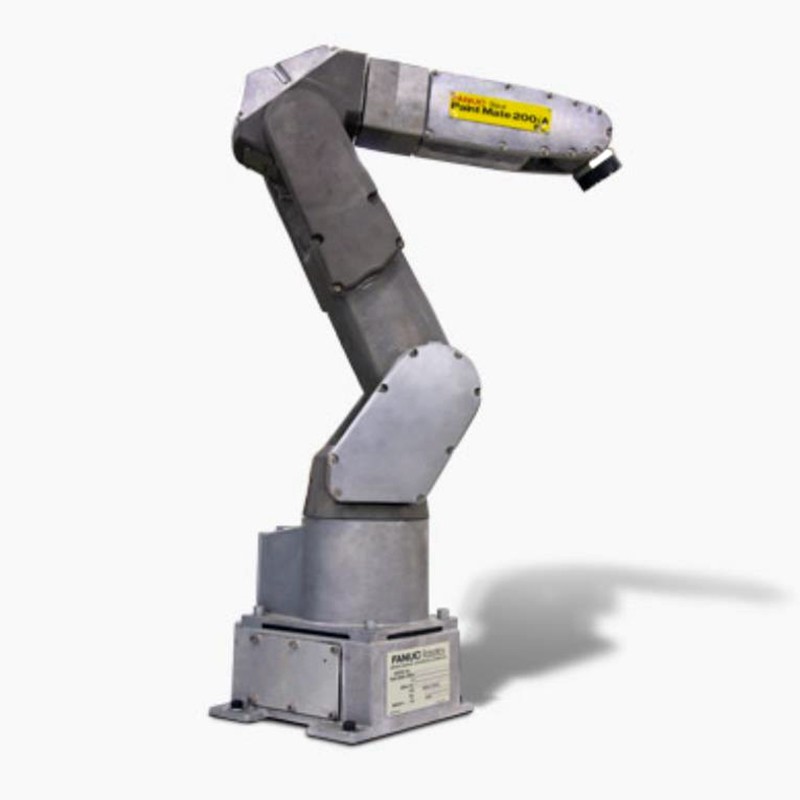

China supplier 6 axis robotic arm painting robot Paint Mate 200 iA 5L for assembly and handling operations
|
Controlled axes
|
6
|
Max. payload at wrist
|
5kg
|
Repeatability
|
±0.02mm
|
Reach
|
704mm
|
Mass (without controller)
|
85kg
|
Drive method
|
Electric servo drive by AC servo motor
|
Installation
|
Floor Inverted, Angle
|
Matching controller / Input power capacity
|
FANUC R-30iB Controller
FANUC R-30iB Mate Cabinet Controller FANUC R-30iB iPendant Touch Controller FANUC R-30iB A-Cabinet Controller FANUC R-30iB B-Cabinet Controller |
Robot Motion Speed
|
|
J1
|
350 °/s
|
J2
|
350°/s
|
J3
|
400°/s
|
J4
|
450°/s
|
J5
|
450°/s
|
J6
|
720°/s
|
Robot Motion Range
|
|
J1
|
±340°
|
J2
|
±200°
|
J3
|
±388°
|
J4
|
±380°
|
J5
|
±240°
|
J6
|
±720°
|
Application
|
Palletizing, Assembly, Machine Loading, Machine Tending, Milling, Part Transfer Robots
|
.
