M3iA Industrial Fanuc Robot Arm 4 Axes Assembly Max 6kg Payload At Wrist

M3iA Industrial Fanuc Robot Arm 4 Axes Assembly Max 6kg Payload At Wrist

fanuc material handling robot

fanuc industrial robots

Contact Us

Request A Quote
Product Details
Brand:
FANUC
Product Name:
M-3iA
Controlled Axes:
4
Max. Payload At Wrist:
6kg
Repeatability:
±0.03mm
Installation:
Ceiling
Mass:
175kg
Matching Controller:
R-30iB/R-30iB Plus 12kVA
Type:
Assembling Robotic Arm, Automatic Control
Motion Range:
1350mm, 500mm
Other:
Intelligent Equipment
Port:
Shanghai Port
Product Description
Product Description

M-3iA/6S Intelligent Industrial Robot for FANUC



FEATURES


FANUC Robot M-3iA is a large-sized parallel link robot for high speed picking and assembly.
The exclusive 6 axes type of parallel link robot expanded robotization of transferring and assembling application.
Total 4 axes robot including single axis rotation at wrist. The maximum payload is 8kg (option), suitable for high speed arranging and handling of multi work pieces at the same time on the conveyer.



Specifications

Controlled axes
4
Max. payload at wrist
6kg
Motion range (X, Y)
φ1350mm, 500mm
Repeatability
±0.03mm
Mass
160kg
Installation
Ceiling
Application
Assembling
Matching controller / Input power capacity
R-30iB/R-30iB Plus (A-cabinet), R-30iB Mate/R-30iB Mate Plus (standard, open air) / 12kVA
Detailed Images

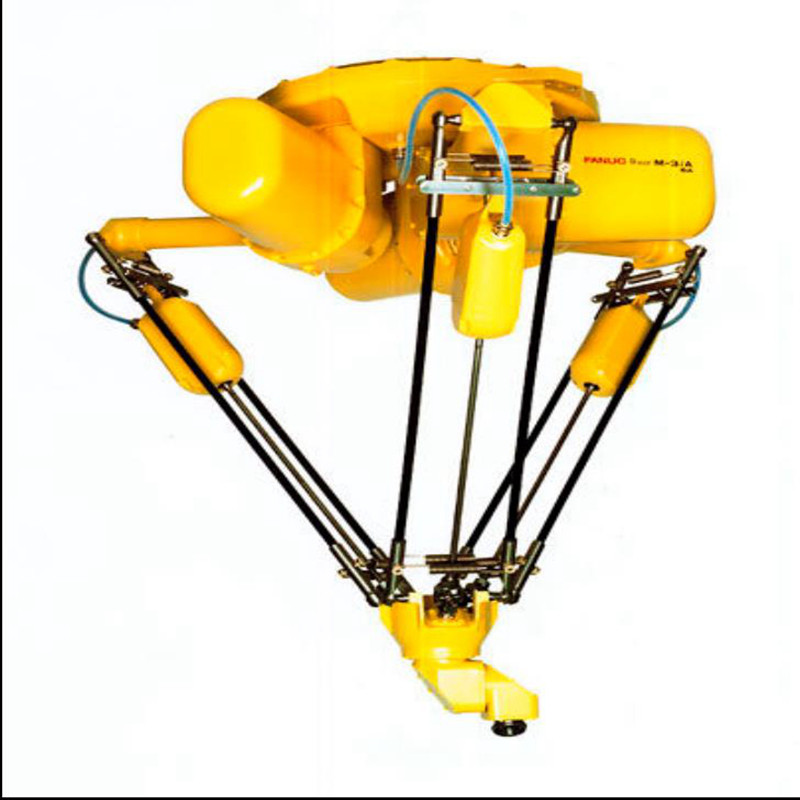

M3iA Industrial Fanuc Robot Arm 4 Axes Assembly Max 6kg Payload At Wrist 0

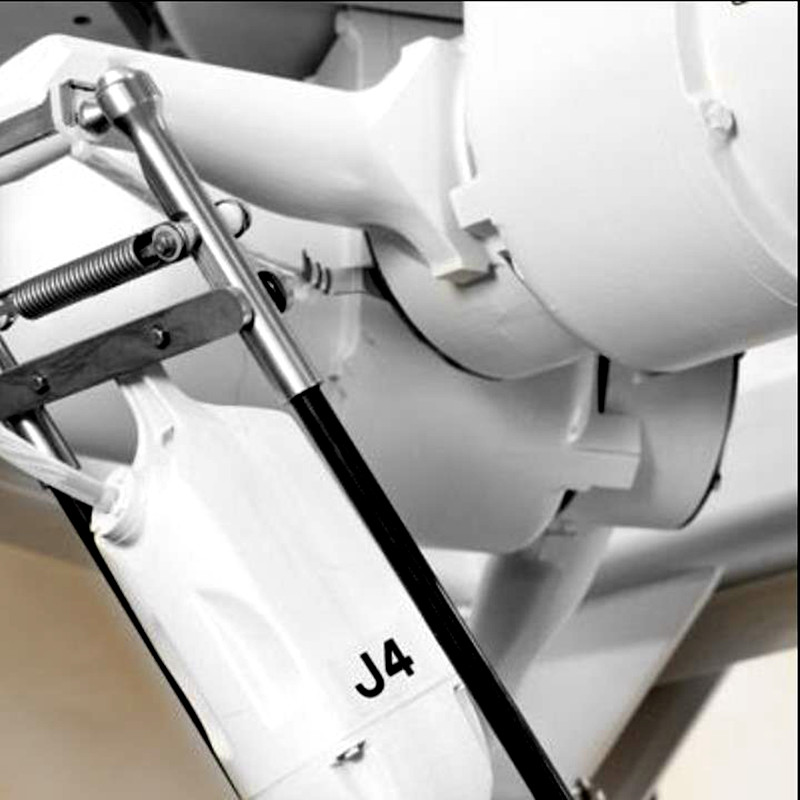

M3iA Industrial Fanuc Robot Arm 4 Axes Assembly Max 6kg Payload At Wrist 1

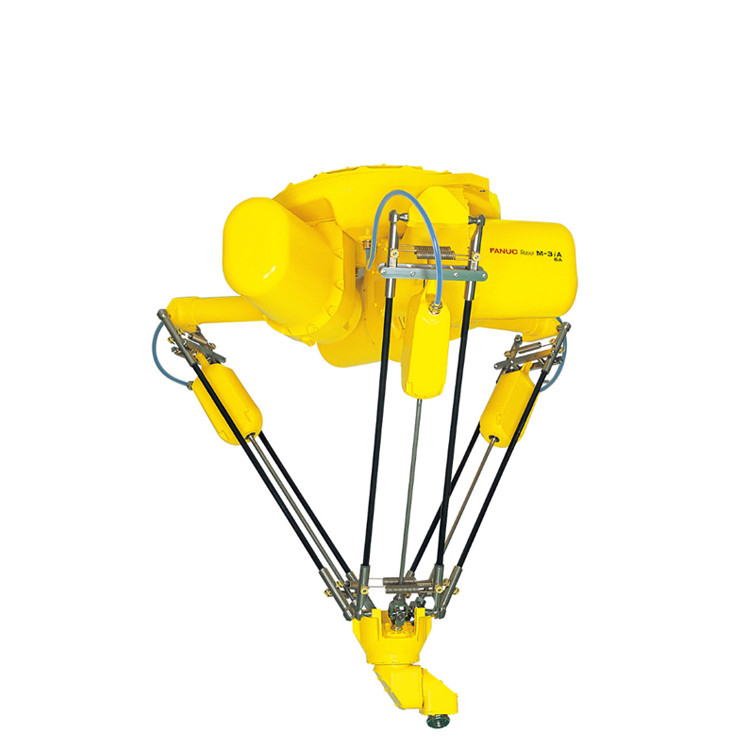

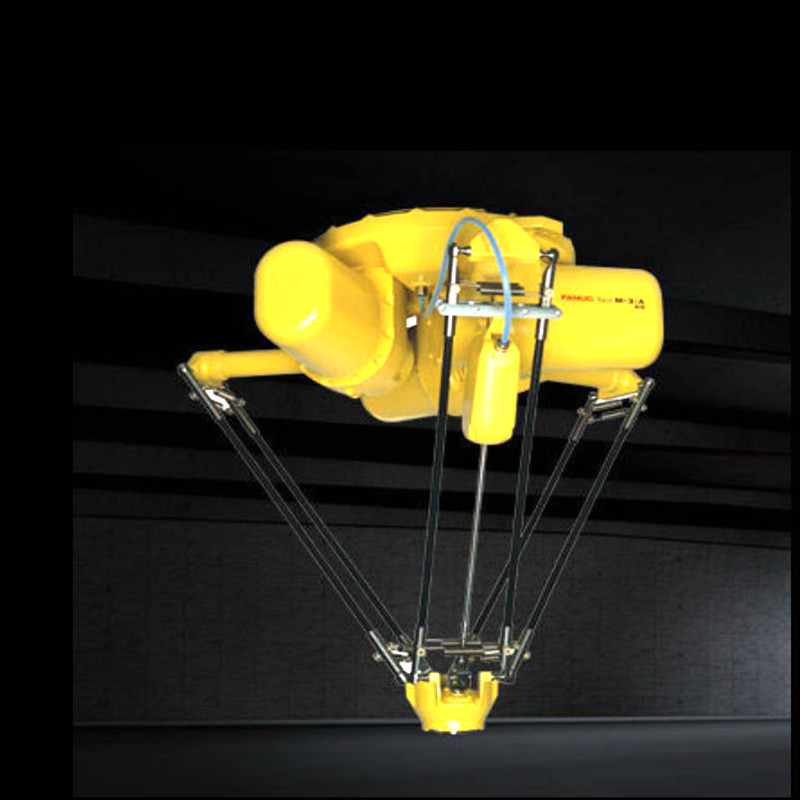

M3iA Industrial Fanuc Robot Arm 4 Axes Assembly Max 6kg Payload At Wrist 2M3iA Industrial Fanuc Robot Arm 4 Axes Assembly Max 6kg Payload At Wrist 3
Certifications

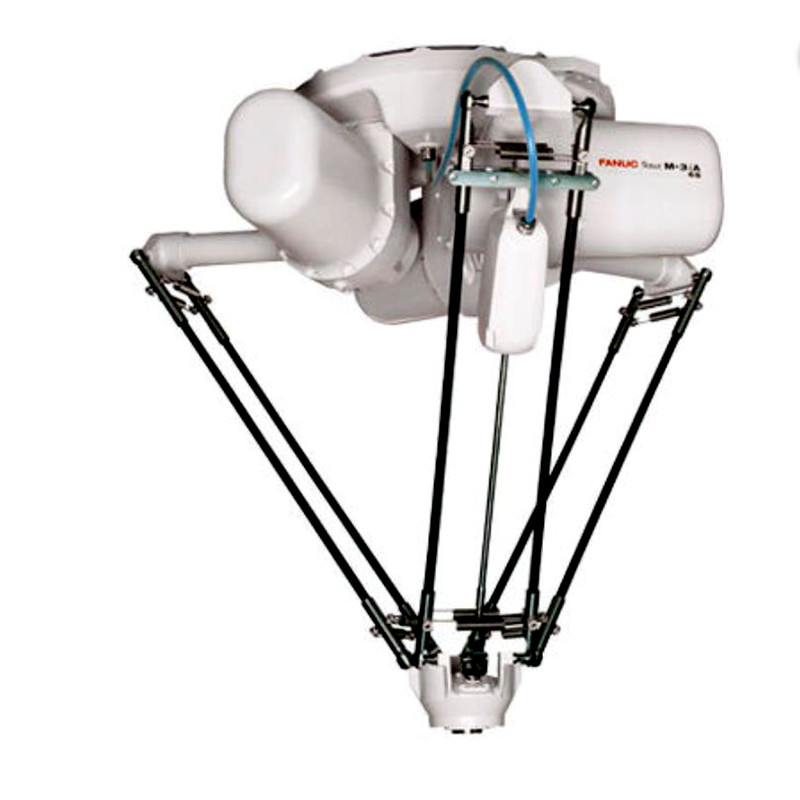

M3iA Industrial Fanuc Robot Arm 4 Axes Assembly Max 6kg Payload At Wrist 4
Packing & Delivery

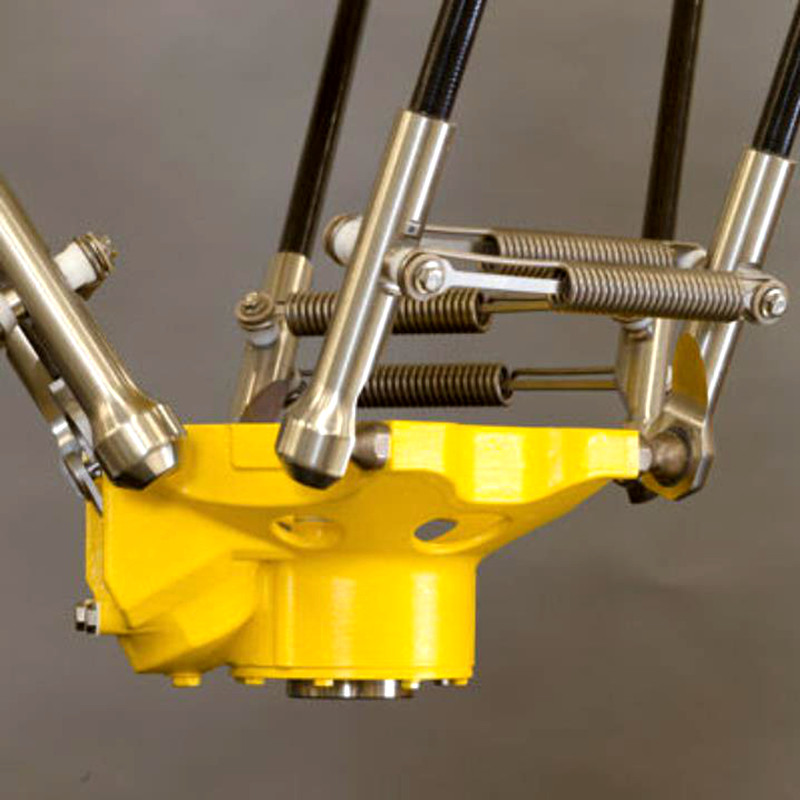

M3iA Industrial Fanuc Robot Arm 4 Axes Assembly Max 6kg Payload At Wrist 5
FAQ
M3iA Industrial Fanuc Robot Arm 4 Axes Assembly Max 6kg Payload At Wrist 6
Our Company
M3iA Industrial Fanuc Robot Arm 4 Axes Assembly Max 6kg Payload At Wrist 7
