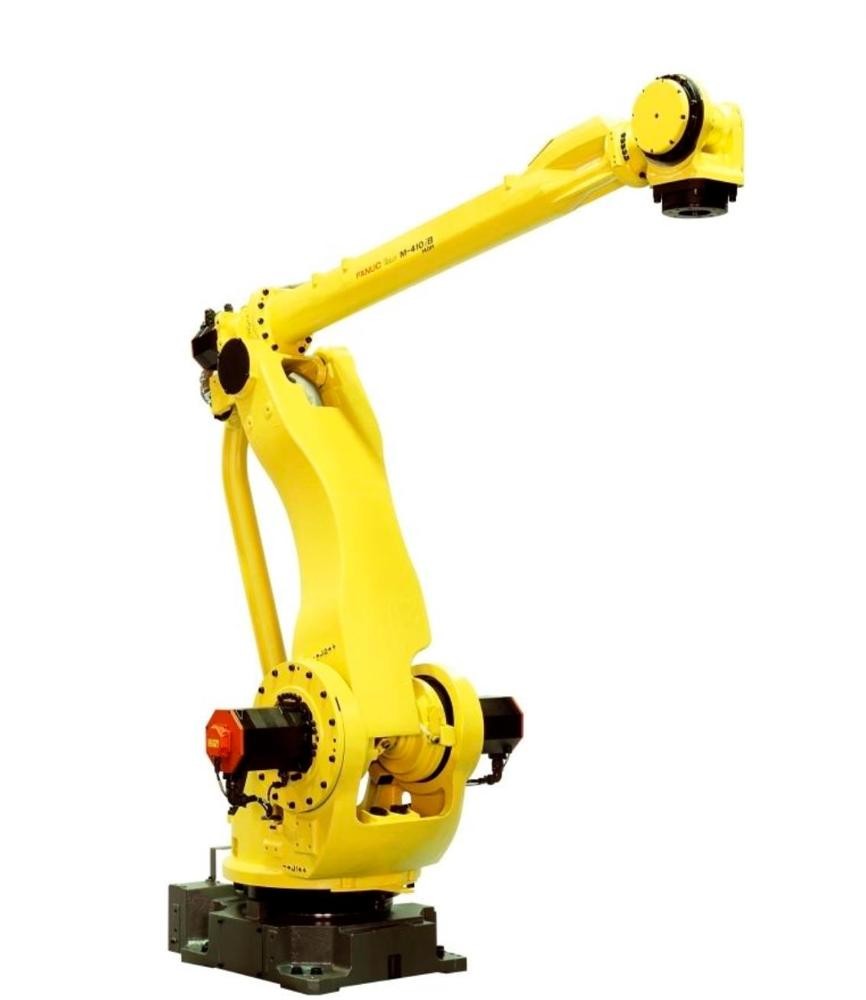

The M-410iB series robot is the latest generation of large-scale logistics intelligent robots from FANUC. It is suitable for precise, high-speed, high-load operation. It has four axes and is electric for integrated mechanical and multi-pattern manufacturing and palletizing system flow control units.
1. This is a large-scale logistics intelligent robot that contributes to the robotization of logistics systems.
2. The best model can be selected according to the workpiece to be transported: FANUC Robot M-410iB/160: can handle 160kg
|
SPECIFICATIONS
|
|
Controlled axes
|
4
|
|
Max. payload at wrist
|
160kg
|
|
Motion range (X, Y)
|
2850mm, 3546mm
|
|
Repeatability
|
±0.05mm
|
|
Mass
|
1940kg
|
|
Installation
|
Floor
|
|
Matching controller / Input power capacity
|
R-30iB/R-30iB Plus (A-, B-cabinet) / 15kVA
|
|
Robot Motion Speed
|
|
|
J1
|
130 °/s (2.27 rad/s)
|
|
J2
|
130 °/s (2.27 rad/s)
|
|
J3
|
135 °/s (2.36 rad/s)
|
|
J4
|
300 °/s (5.24 rad/s)
|
|
Robot Motion Range
|
|
|
J1
|
±360°
|
|
J2
|
±144°
|
|
J3
|
±136°
|
|
J4
|
±540°
|
|
Application
|
Palletizing Robots
|
.
