High Payload L Axis Automatic Paint Spraying Robot , Space Saving Fast Robot Arm

Basic Information
Place of Origin: Shanghai, China (Mainland)
Brand Name: YASKAWA
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Packing type: cardboard box/non-fumigation wooden box
Supply Ability: 100 Set/Sets per Month
Condition: New Type: Coating Production Line
Substrate: Steel Coating: Painting
Weight: 560 Kg Warranty: One Year
Name: Industrial Painting Robot MPX3500 For YASKAWA Usage: For Industry
Payload: 15 Kg Robot Mass: 560 Kg
Max Working Range: 2700 Mm Repeatability: 0.15 Mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai Port
High Light:

universal robot arm

,

yaskawa welding robot

Product Description

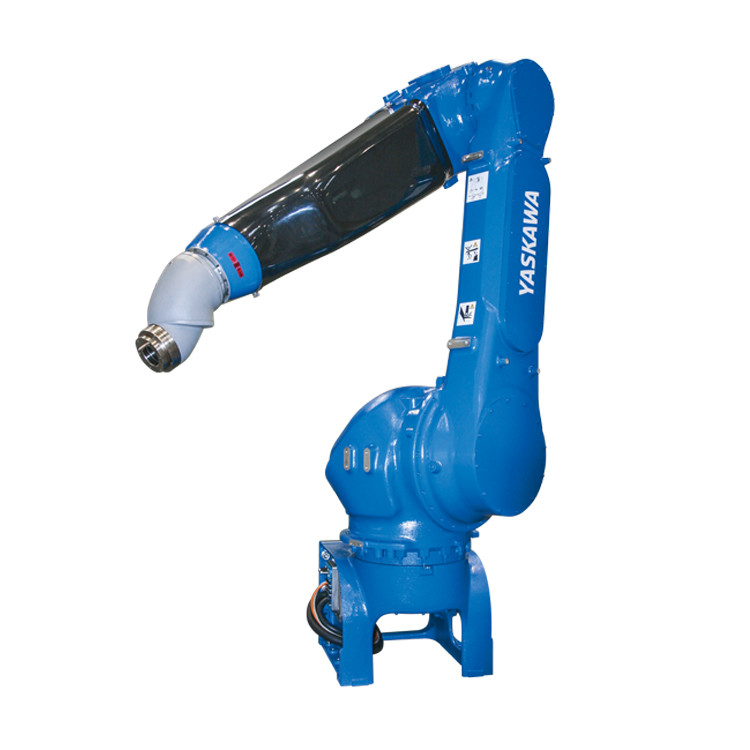

Industrial Painting Robot MPX3500 for YASKAWA



The fast and flexible MOTOMAN MPX3500 offers high performance in painting automobile bodies, bumpers, construction equipment and further more.



A high-density layout saves space by reducing the size of the painting booth. The L axis is designed with no offset to enabled installation of the manipulator closer to a work piece, which saves space.



The time required for teaching large cells can be shortened by converting the data created for the robot on one side for the robot on the opposite side.

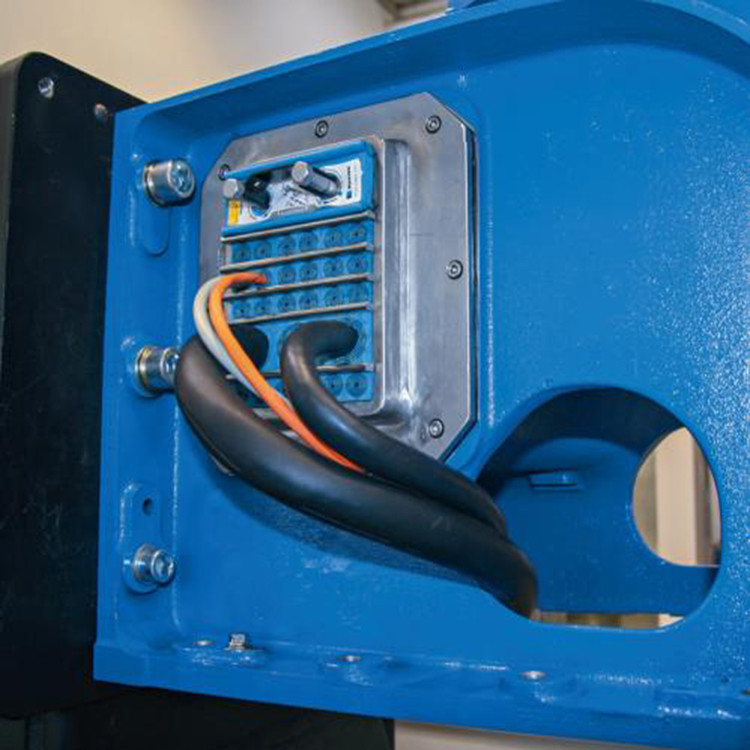

The hoses and tubes of the MOTOMAN MPX3500 can be routed inside the wrist section to prevent interferences. The process arm and high payload of this robot allows the mounting of large bell applicators, which enable multi-color painting.



The MOTOMAN MPX3500 is controlled by the high-performance MOTOMAN DX200 controller, which is available with the optional Functional Safety Unit (FSU) that offers a wide range of new safety functions.

High Payload L Axis Automatic Paint Spraying Robot , Space Saving Fast Robot Arm 0

More Products >>

Company Information1

High Payload L Axis Automatic Paint Spraying Robot , Space Saving Fast Robot Arm 1

Xiangjing(Shanghai)M&E Tech. Co., Ltd is subcompany of Dr. Industry Group Co., Ltd, Dr. Industry Robot Tech. Co., Ltd is subcompany of Dr. Industry Group Co., Ltd too, which focus on discrete industrial automation and process industrial  automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses.



Shanghai Office

High Payload L Axis Automatic Paint Spraying Robot , Space Saving Fast Robot Arm 2

Beijing Office

High Payload L Axis Automatic Paint Spraying Robot , Space Saving Fast Robot Arm 3

Hunan Province Office

High Payload L Axis Automatic Paint Spraying Robot , Space Saving Fast Robot Arm 4

Packaging & Shipping

We can delivery the cargo to transport company within 3 days upon receiving of the cargos from the plant
Any question, please do not hesitate to contact me.

Our Services

1. Swift delivery

 For common parts, we can deliver the goods within 3 days



2. Original products

 All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.



3. Quality Assurance



4. Technical Support

 Including inspection,repair and maintenance, we can give all kinds of technical support.



5. Quickly responce

 Our staffs will keep 24h online and answer your question very quickly.

FAQ

Q. How long will you need before delivery?

A: We have many common models in stock, so that we can deliver the goods very soon(less than 3 days).

Q. What is your payment term?

A: Normally T/T 30% in advance, balance to be paid before delivery, We also support the trade assurance,O/A.

Q: What is Trade Assurance?

A: Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

Q: Does Trade Assurance charge fees?

A: No. Trade Assurance is free for both buyers and suppliers.

Q: What kind of trade terms can you do?

A: EX-WORKS,FOB,CFR,CIF,etc.
