Faude Pro Light Cable Robot Arm , Ur3 / Ur5 / Ur10 Easy Robot Arm For Polishing

UNIVERSAL ROBOT ACCESSORIES FAUDE PROLIGHT

Introduction

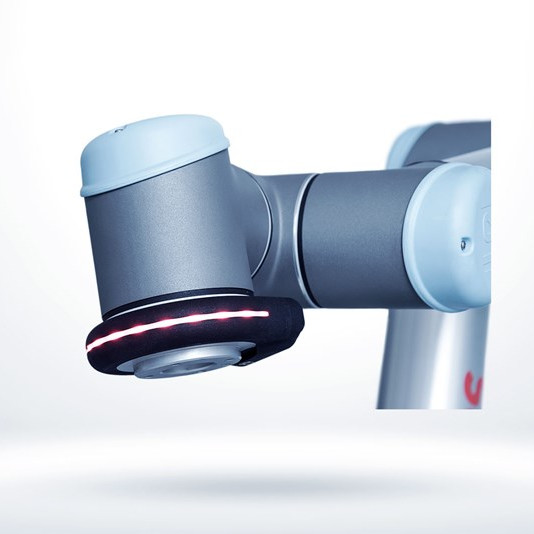

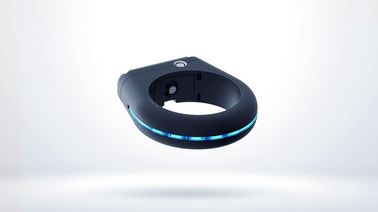

The ProLight is an illumination safety ring for two-colored visualization of the operating conditions of the robot and has the option of supplying electrical cables and pneumatic tubes via the robot to the end effector. The innovative and robust design of the C-Guide the cable guidance to the robot safely and flexibly.

 Features and Benefits

• Fulfills the safety requirements to industrial robots (DIN EN ISO 10218-1) for MRK applications
• The rounded shape reduces the danger of injury
• Visualization of the current operating conditions in two colors
• Despite the cover, the tool interface can still be used
• Is recommended for MRK as well as not MRK solutions, this means that the robot can be used for other purposes in a short-term
• Can be retrofitted for every UR robot type
• Dimensions:
  UR3: 98mm x 87mm x 25mm
  UR5: 115,5mm x 99mm x 25mm
  UR10: 118,85mm x 114,1mm x 25mm
• Preassembled lighting protection ring for direct attachment to the respective robot without any further assembly work. A SAC-6P-M 8MS / 1.5-PUR sensor cable is part of the scope of delivery.

Applications

• Gluing, Dispensing, and Welding

• Screw Driving

• Pick and Place

• Injection Molding

• CNC

• Quality Inspection

• Assembly

• Polishing

• Machine Tending
