49mm Tall Millibar Manual Tool Changer Flexible For Palletizing Easy Mounting

Basic Information
Place of Origin: Denmark
Brand Name: MILLIBAR, INC
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Packing type: cardboard box/non-fumigation wooden box
Supply Ability: 100 Set/Sets per Month
Condition: New Application: Palletizing
Warranty: 1 Year Product Name: MILLIBAR MANUAL TOOL CHANGER
Compatibility: UR3, UR5, UR10 UR3e, UR5e, UR10e Dimensions: 49 Mm Tall, 82mm Diameter, 1.2 Kg
Port: Shanghai Port
High Light:

universal collaborative robot

,

high precision robotic arm



UNIVERSAL ROBOT ACCESSORIES MILLIBAR MANUAL TOOL CHANGER

Introduction

The Millibar Manual tool Changer is field proven with Universal Robots and is designed for guaranteed integration with all UR robots delivering impressive productivity gains.

With the Millibar Manual Tool changer, it is possible to redeploy your UR robot to support more applications with just seconds of downtime.

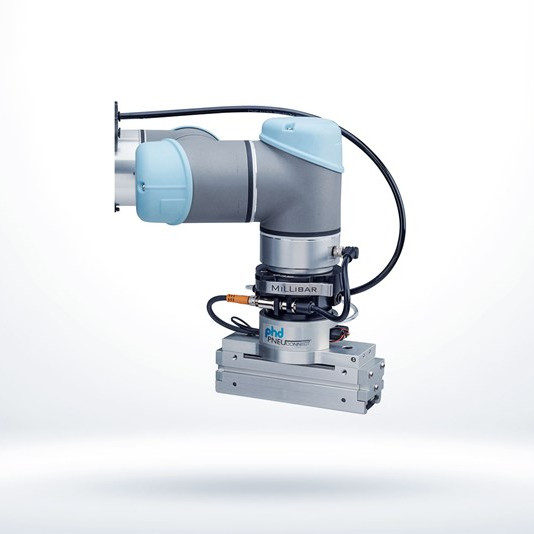

49mm Tall Millibar Manual Tool Changer  Flexible For Palletizing Easy Mounting 0

Features and Benefits

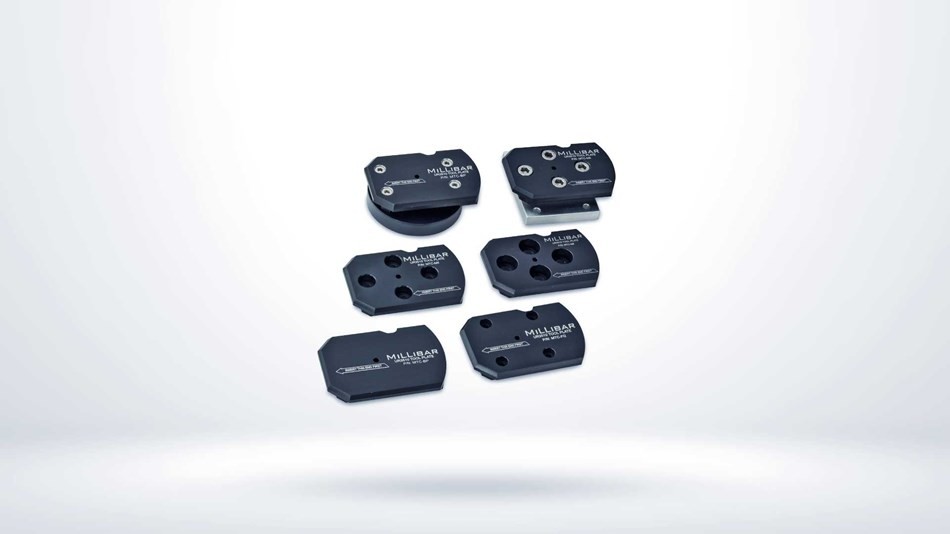

A variety of standard tool plates are available making it possible to assemble end-of-arm tools with minimal design time and effort.

Choose the base tool plate featuring the same mounting pattern as the robot wrist for easy mounting of your existing tooling

Millibar offers blank tool plates for customers to modify as needed and Millibar will modify tool plates based on customer request. Each tool changer includes one of 5 standard tool plates and mounting screws.

Choose the Millibar Manual Tool Changer for production as well as application proof-of-concept at the distributor level.

How does it work

Extend the flexibility of your Universal Robot with fast, repeatable and easy tool changes.  Complete with both electrical and pneumatic pass-throughs. There are 26mm push-to-connect fittings to easily plumb compressed air for opening and closing pneumatic grippers or compressed air to drive integral venturi vacuum pumps built into the tool plates.

Vacuum may also be plumbed to the tool to power foam vacuum grippers and suction cups and the second port may be used for monitoring vacuum levels in the system for use with vacuum switches and sensors mounted at the base of the robot.

The M8 8 Pin connector extends the functionality of the 8 Pin connector on the robot wrist.  Send power to valves and transmit signals from reed switches and vacuum sensors on the tool back to the robot controller.

Weighing just 7 kg and standing only 35 mm tall, Millibar’s line of tool changers are the lightweight and low profile to maximize robot payload and fit into confined spaces. Change tools easily with the single lever cam lock release bar. The extended length and ergonomic finger catch minimize opening and closing forces while providing a secure locking mechanism.



 Applications

• Pick and Place

• Injection Molding

• CNC

• Packaging and Palletizing

• Assembly

• Machine Tending

• Lab Analysis and Testing

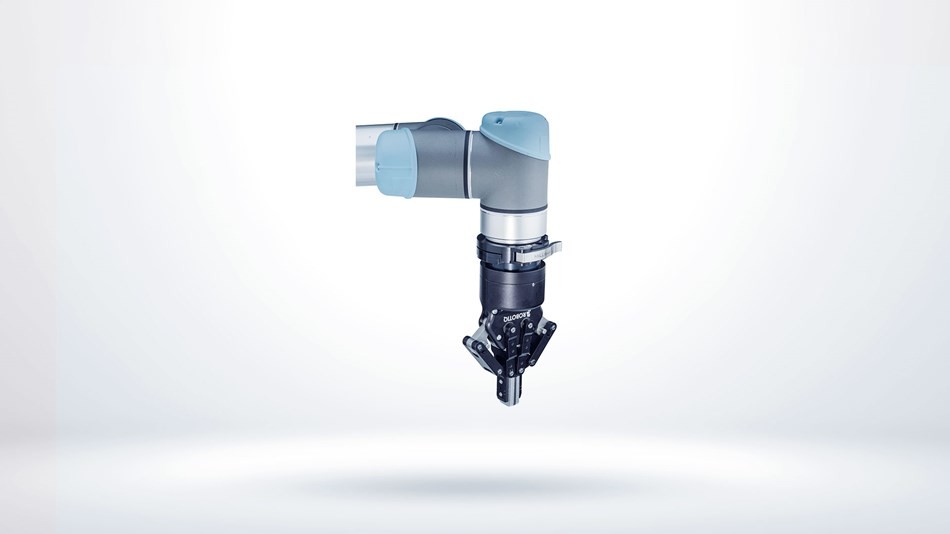

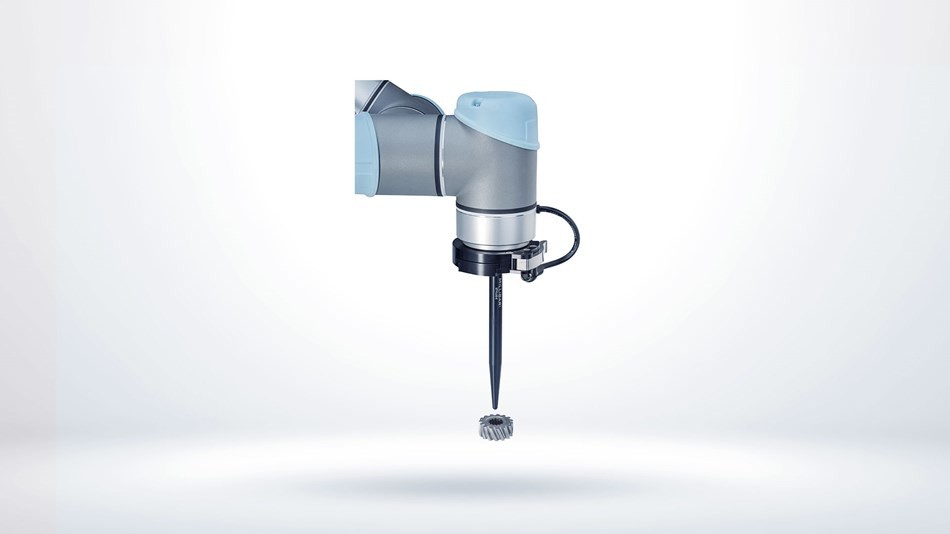

49mm Tall Millibar Manual Tool Changer  Flexible For Palletizing Easy Mounting 149mm Tall Millibar Manual Tool Changer  Flexible For Palletizing Easy Mounting 2
