UNIVERSAL ROBOT ACCESSORIES IGUS UR-CLAMP SECURE CABLE GUIDANCE

Introduction

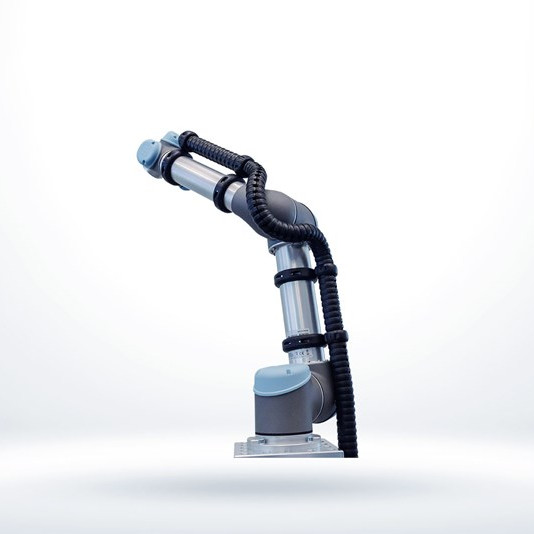

• The igus® triflex® R system guides cables and hoses secure along the UR Robot

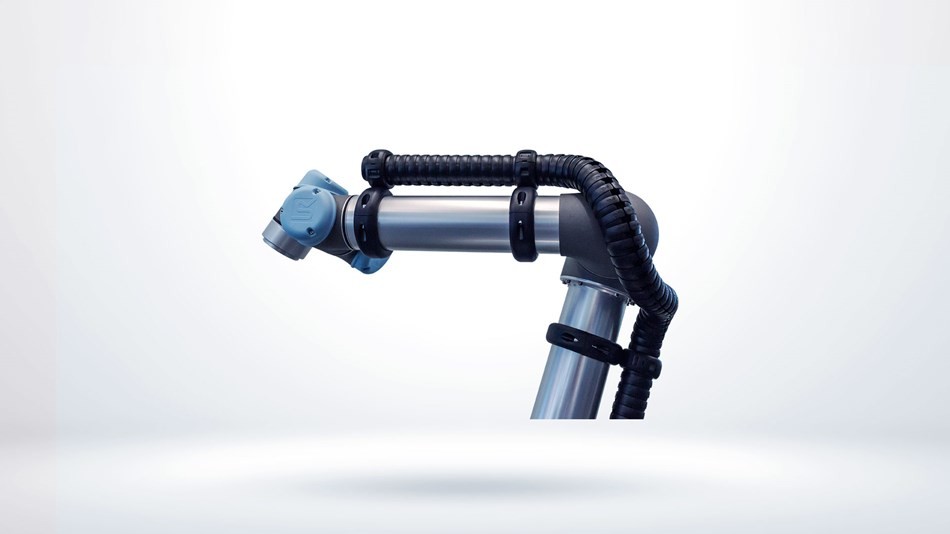

• Guidance via synthetic clamps and energy chains around the arms of the UR Robot

Features and Benefits

• Easy and fast installation
• Modular system – easy to shorten and lengthen
• Cable guidance with minimum bending radius and minimum torsion angle
• Easy and fast filling with harnessed cables (connectors) from outside (TRE, TRL)
• Two or three chambers for separating cables and hoses

• Dimensions:

  UR3/UR3e

  • TR.916.810.054
    • 30mm width,
    • 130,5mm height,
    • Ø 54mm
  • TR.916.810.066
    • 30mm width,
    • 142,5mm height,
    • Ø 66mm

  UR5

  • TR.916.810.075
    • 30mm width,
    • 152mm height,
    • Ø 75mm
  • TR.916.810.086
    • 30mm width,
    • 162,5mm height,
    • Ø 86mm

  UR10

  • TR.916.810.086
    • 30mm width,
    • 162,5mm height,
    • Ø 86mm
  • TR.916.810.108
    • 30mm width,
    • 185mm height,
    • Ø 108mm

How does it work

• New guidance of the triflex® R System with the use of protectors and synthetic clamps for all UR Robots.

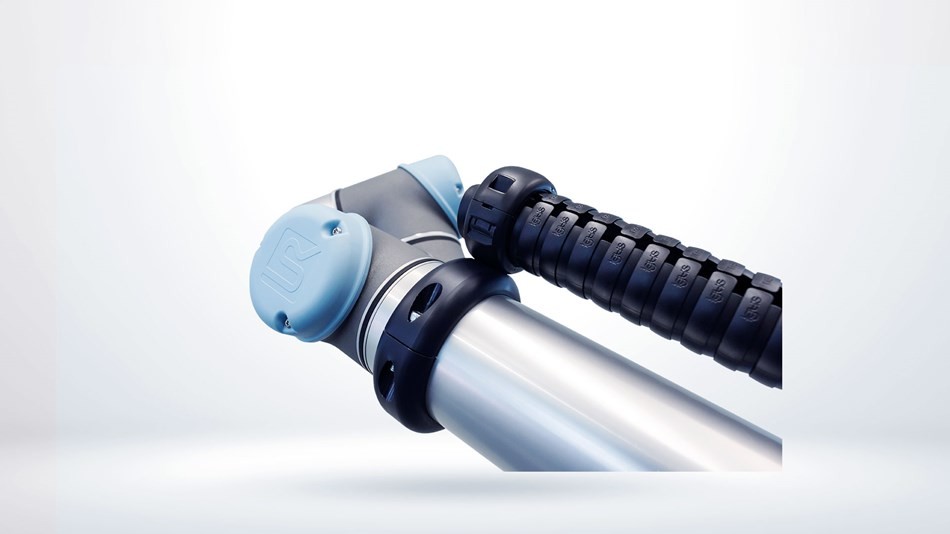

• Easy mounting of the NEW synthetic clamps with integrated screws for an elegant guiding energy system without any interfering contours

 Applications

• Gluing, Dispensing, and Welding
