HCR 20 Hybrid Cobot Collaborative Robot Arm High Payload 100kg Vehicle Payload

Basic Information
Place of Origin: Shanghai, China (Mainland)
Brand Name: SIASUN
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Packing type: cardboard box/non-fumigation wooden box
Supply Ability: 100 Set/Sets per Month
Condition: New Application: Assembly
Weight: 550kg Dimension(L*W*H): 1280mm*600mm*700mm
Warranty: One Year Product Name: Collaborative Robot HCR20 Hybrid Cobot
Cobot Payload: 20kg Vehicle Payload: 100kg
Operating Accuracy: ±0.05mm Parking Accuracy: ±10mm
Port: Shanghai Port
High Light:

multi axis robotic arm

,

high precision robotic arm

SS Cobot

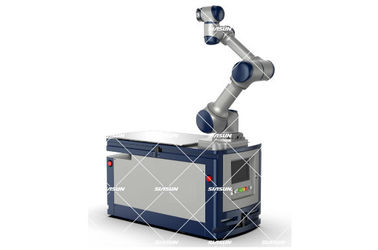

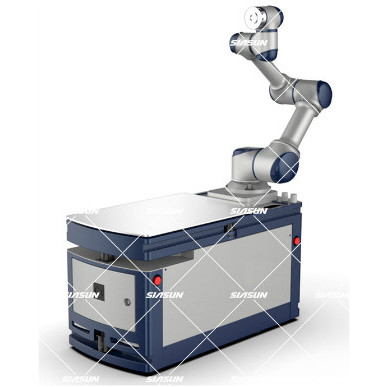

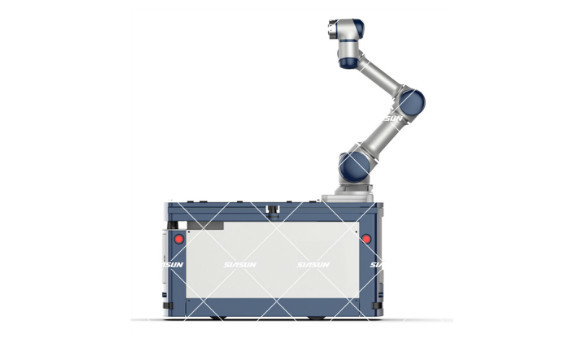

SIASUN Collaborative Robot  HCR20 Hybrid Cobot

Introduction

SIASUN HCR20 Hybrid Cobot adopts Natural Navigation and 20kg payload Cobot technology.

With a strong SIASUN AGV Dispatching System, HCR20 can operate from both sides of the vehicle. HCR20 combines perfect safety devices and modularized tray/fixture, together with various advantages of Cobot such as easy-to-use and safe, it makes deployment much simple and dramatically improves economic efficiency for end users.



 Characteristics

 1. Various Navigation Optional, including Natural/Laser/Multi-type navigation

 2. Cobot Payload up to 20kg, Load Tolerance 100kg

 3. Safety Interlock between Cobot and Vehicle, 360°Obstacle Avoidance

 4. Air Compressor Integrated



Type HCR20
Vehicle Size 1280mmx600mmx700mm
Gross Weight 550kg
Cobot TCP Speed 0~1m/s
Moving Speed 0~1m/s

Cobot

Payload

20kg
Vehicle Payload  100kg
Safety Device

Emergency Button/

Laser Collision Detection/Cobot Collision/others

Operating Accuracy ±0.05mm
Parking Accuracy ±10mm
Moving Direction Forward/Reverse/Turning
Navigation Natural/Laser/Multi-Type
Battery Lithium Battery 48VDC
Full Load Duration 5h
Charging Manual/Auto Battery Change Auto Charge







HCR 20 Hybrid Cobot Collaborative Robot Arm High Payload 100kg Vehicle Payload 0HCR 20 Hybrid Cobot Collaborative Robot Arm High Payload 100kg Vehicle Payload 1
