Lift Stand High Precision Robotic Arm L366 X W480 X H900 - H1400 Mm Dimensions

Basic Information

Place of Origin:	Denmark
Brand Name:	TECHNICON

Minimum Order Quantity:	1 Set/Sets
Price:	Negotiation
Packaging Details:	Packing type: cardboard box/non-fumigation wooden box
Supply Ability:	100 Set/Sets per Month

Contact Now

Condition:

New

Application:

Welding

Warranty:

1 Year

Product Name:

LIFTSTAND

Compatibility:

UR5, UR10

Dimensions:

L366 X W480 X H900~H1400 Mm

Software Version Required:

CB3.1

Port:

Shanghai Port

High Light:

universal collaborative robot

multi axis robotic arm

UNIVERSAL ROBOT ACCESSORIES LIFTSTAND

Introduction

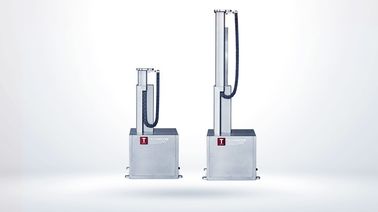

The LiftStand is a plug and play solution for the Universal Robots UR5 and UR10, that allows for the robot to meet your demand for increased vertical reach.

Features and Benefits

An extra degree of freedom, with a 500 mm stroke,
allowing a UR10 to reach from the floor and up to 2700 mm vertically,
A simple and safe design for UR5 and UR10,
Easy setup and connection, through a single ethernet cable between robot controller and LiftStand,
Easy programming through URCap.

How does it work

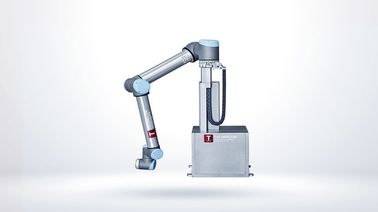

Mount the robot on top of the LiftStand,
Connect the UR controller and install the URCap.

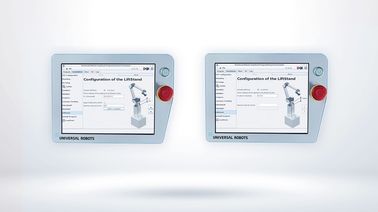

The height of the LiftStand is controlled through the use of a UR certified Cap, which is handled with the same ease as of the remaining PolyScope programming.

Applications

• Packing and Palletizing

• Gluing, Dispensing and Welding

• Pick and Place

• CNC

• Machine Tending
