E3 Collaborative Painting Robot for Industry

1 Set/Sets
MOQ
$37,000.00 - $38,000.00 / Sets
Price
E3 Collaborative Painting  Robot for Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Assembly,welding, Painting
Warranty: One Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 100-240VAC
Usage: For Assembly, Pickup,welding, Grinding,painting
Type: E3
Payload: 3kg
Weight: 17kg
Reach: 590mm
Repeatability: ± 0.05mm
Port: Shanghai Port
Highlight:

multi axis robotic arm

,

high precision robotic arm

Basic Infomation
Place of Origin: Shanghai, China (Mainland)
Brand Name: HAN'S
Payment & Shipping Terms
Packaging Details: Packing type: cardboard box/non-fumigation wooden box
Supply Ability: 100 Set/Sets per Month
Product Description

E3 Collaborative Painting  Robot for Industry 0



E3 Collaborative Painting Robot for Industry



Introduction

HAN'S Elfin robots are useful for integrated automatic production line, assembly, pickup,welding, grinding,painting,etc.

5kg in rated load with 23kg in weight

Modularity: All-in-one module of reducer, motor, encoder and drive

High accuracy: Repeatability up to ±0.05mm

Type E3Tool Speed1 m/sProgramminggraphical programming, remote process call
Weight17kg Repeatability±0.05(in normal condition)IP ClassIP54
Payload3kg Degree of FreedomCooperative Operation10 advanced configurations for safety
Reach590mm Control Box Size400*366*263mm Main Materialaluminum alloy
Power100w in typical cycle I/O Portdigital input/output:4, analog input:2 Working Temperature 0-50º
Joint Range ±360ºI/O Source24V 2A Power Input100-240VAC,50-60Hz
Joint Speed 90º/sCommunicationTCP/IP Cablecable to connect the control box:5m, cable to connect teach pendant:5m

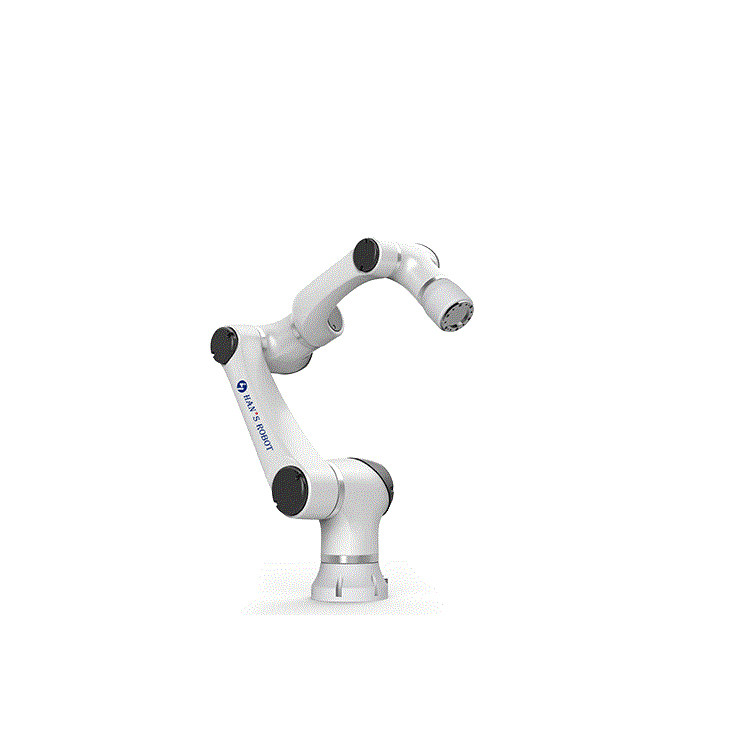

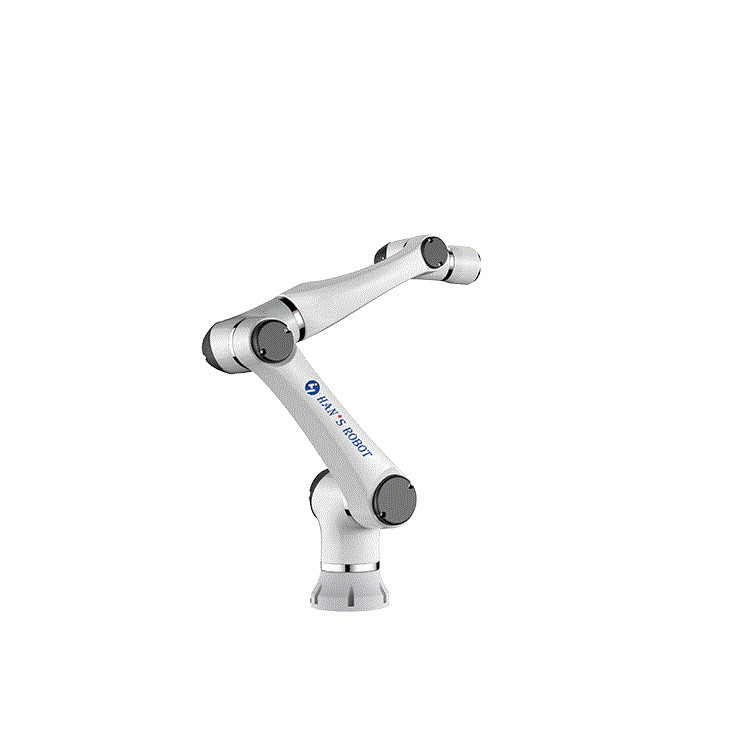

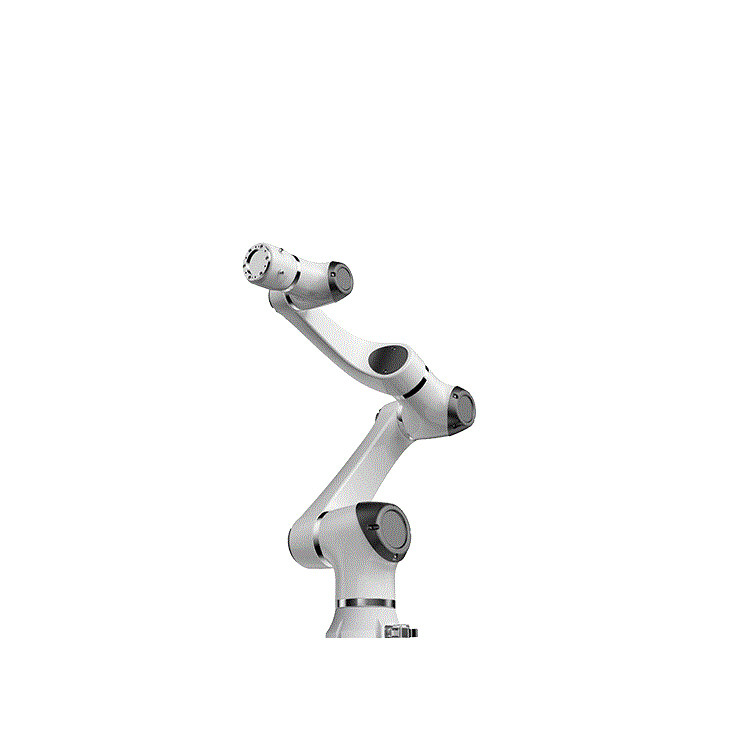

E3 Collaborative Painting  Robot for Industry 1E3 Collaborative Painting  Robot for Industry 2E3 Collaborative Painting  Robot for Industry 3
