Packaging Collaborative Robot Arm Lift Kit Vertical Positioning System

UNIVERSAL ROBOT ACCESSORIES LIFTKIT

Introduction

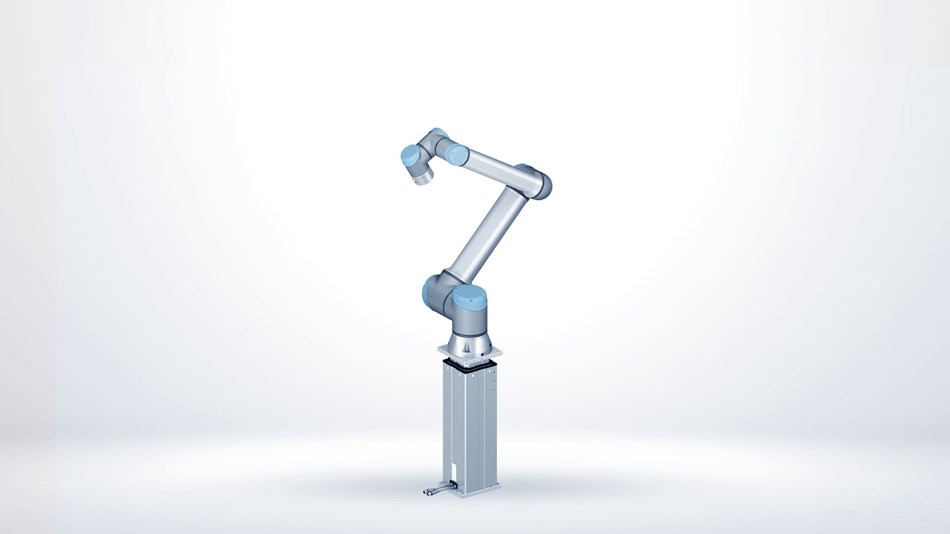

The LIFTKIT is a vertical positioning system for operating range extension of a Universal Robot. It is ready to install system including a telescopic pillar, controller and software plugin for Universal Robots (URCaps).

Features and Benefits

• UR+ certified vertical positioning axis for operating range extension of a Universal Robot
• Robust pillar design for industrial use, vibration-free motion and virtually maintenance free
• No hardware/software development required, ready to use complete system solution
• Software plugin (URCaps) included for direct positioning access within the UR control environment
• Attachment threads for third-party external cable management

 How does it work

• Ready to run in 15 minutes. Attach the robot to the pillar, plug in the cables and install the URCaps plugin.

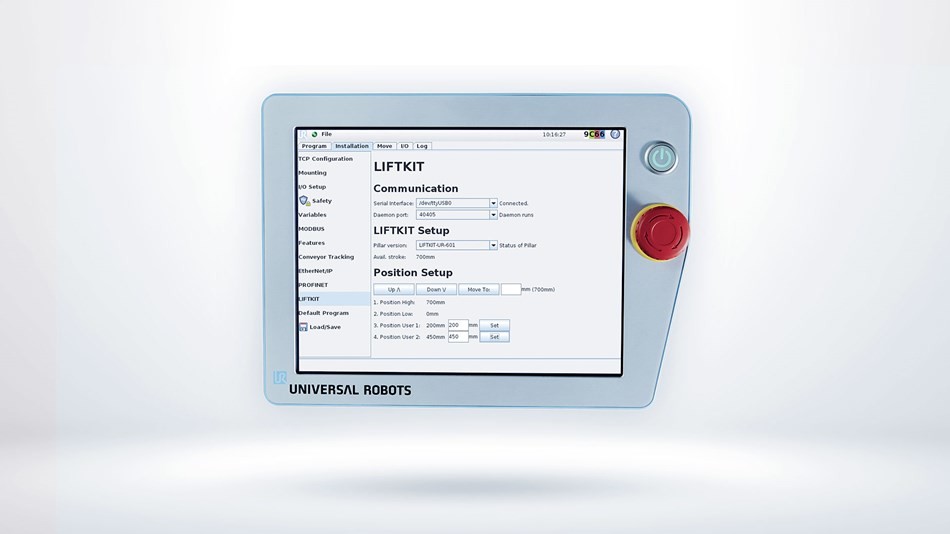

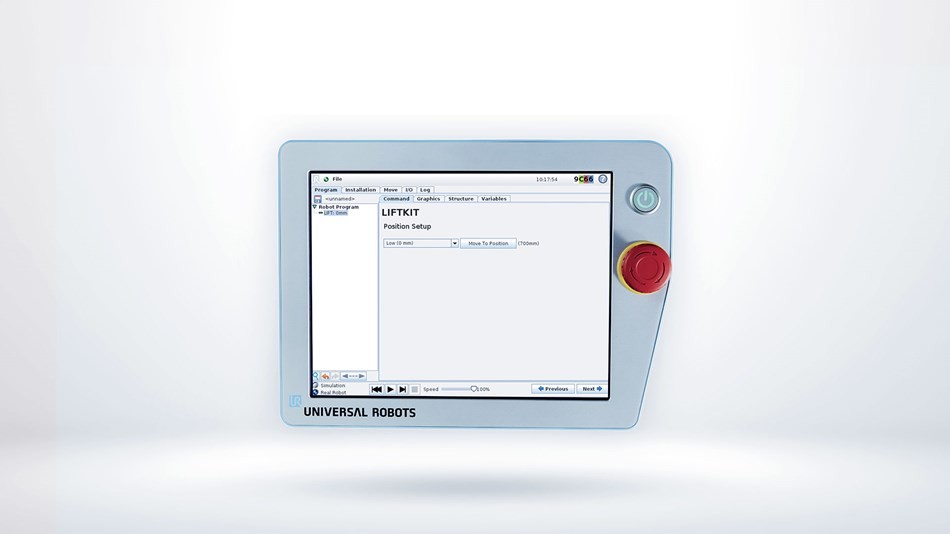

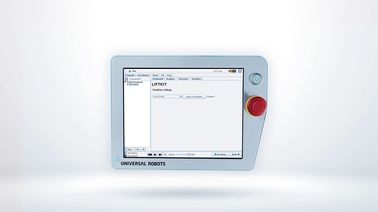

• Axis positioning is directly accessible in the UR Polyscope environment
• The maximum stroke range available ranges between 500 mm to 900 mm with a compact retracted height.

 Applications

• Packing and Palletizing
