UNIVERSAL ROBOT ACCESSORIES IGUS CABLE GUIDANCE

Introduction

3D TRIFLEX® R E-CHAINS® WITH CLAMPS FOR UNIVERSAL ROBOTS / STANDARD PRODUCT FOR SAVE CABLE GUIDING

The Universal Robots company builds easily to operate, lightweight robot systems. These robots do not have their own energy supply systems. The triflex® R sizes 30 and 40 are a perfect match, technically and also visually for the elegant UR3, UR5 and UR10 robot systems. The UR mountings offer a quick and easy connection.

Secure cable guidance with triflex® R for all UR robots:

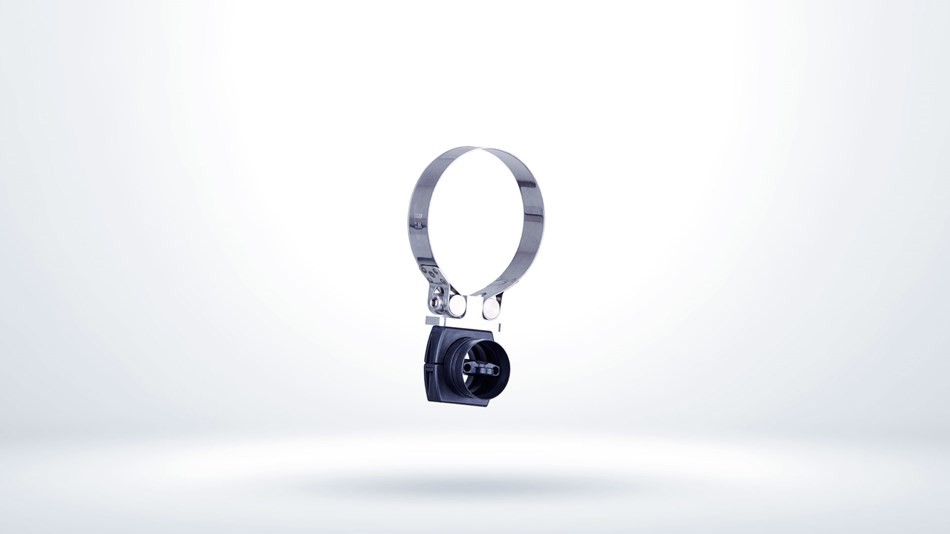

- Easy mounting with screw clips

- 2 triflex® R sizes – Ø 30 and Ø 40

- 5 different clamp diameters for UR3, UR5 and UR10 Robots

- 3 different triflex® R systems, closed version TRC, open Version for easy filling with cables and hoses from outside TRE and TRL (light version)

Dimensions:

Clamp diameter 54mm, 66mm, 75mm, 86mm, 108mm
triflex® R diameter TR.30 - 34.5mm, TR.40 - 43mm

 Features and Benefits

• Easy and fast installation

• Modular system – easy to shorten and lengthen

• Cable guidance with minimum bending radius and minimum torsion angle

• Easy and fast filling with harnessed cables (connectors) from outside (TRE and TRL)

• Two or three chambers for separating cables and hoses

How does it work

Secure cable guidance with triflex® R for all UR robots:

Easy mounting with screw clips

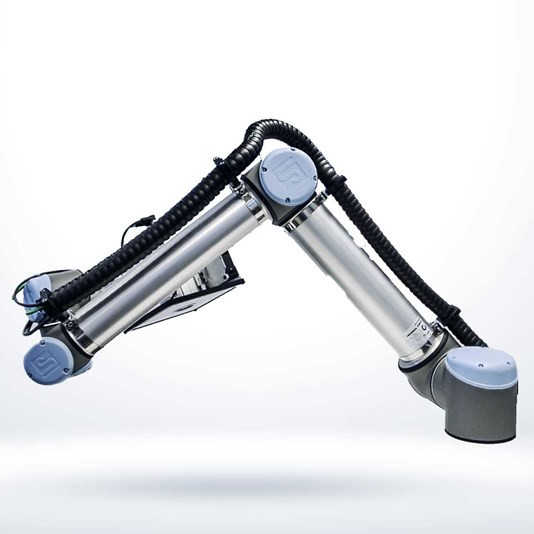

The igus triflex® R system guide cables and hoses along the UR robots

Necessary minimum triflex® R length depends on the UR robot type:

UR3 - 1.200mm
UR5 - 1.500mm
UR10 - 1.800mm

Applications

• Gluing, Dispensing, and Welding
