| MOQ: | 1 Set |
| Price: | Negotiable |
| Standard Packaging: | Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm) |
| Delivery Period: | 7 to 20 Workdays |
| Payment Method: | L/C, T/T, D/A, D/P, MoneyGram |
| Supply Capacity: | 500 Set Per Month |
Product Introduction
Type 3244 Three-way Valve or Type 3241 Globe Valve with Type 3374 Electric Actuator • Type 3241 Globe Valve, refer to Data Sheet u T 8015 • Type 3244 Three-way Valve, refer to Data Sheet u T 8026 The Type 3374 Electric Actuator is available in various versions (for details, refer to Data Sheet u T 8331): • With additional electrical equipment (limit contacts, resistance transmitter, positioner) Also available: – Electric control valves with other electric actuators, refer to Data Sheets u T 5874, u T 8340 and u T 8331 – Pneumatic actuators, refer to Data Sheet u T 8015 – Versions tested according to DIN EN 14597, refer to Data Sheet u T 5871 Installation The control valves can be installed in any desired position except with the actuator suspended downwards. The actuator is attached to the yoke with a fastening nut.
Specifications
|
Attachment
|
Pipe or wall mounting
|
| Mounting Position | Upright, condensate drainage downwards |
| Fast mm/s | 0.25 |
| Ambient temperature | -40° to + 60 |
| Application | Angle Valve, Global Valve |
|
Power supply |
230 V (+10/–15 %), 50 Hz
230 V (+10/–15 %), 60 Hz
24 V (+10/–15 %), 50 Hz
24 V (+10/–15 %), 60 Hz
|
|
Duty type
|
S1 - 100 % according to EN 60034-1
|
|
Degree of protection
|
IP 54 according to EN 60529,
IP 65 with cable glands (can be retrofitted) 1)
Suspended mounting not permitted
|
|
Signal pressure (output)
|
0 bar up to the capacity of the supply pressure · Can be limited to approx. 2.3 bar by software
|
|
Permissible ambient temperature
|
–20 to +80 °C
–25 to +80 °C with metal cable gland
The limits in the test certificates additionally apply for explosion-protected versions
|
|
Influences
|
Temperature: ≤0.15 %/10 K
Effect of vibration: ≤0.25 % up to 2000 Hz and 4 g according to IEC 770
Supply air: None
|

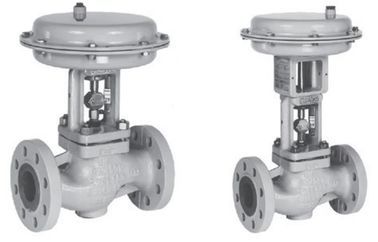

Detailed Image
Packaging and Delivery
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.
5. Quickly response
Our staffs will keep 24h online and answer your question very quickly.
|
|
