Double Eccentric Pneumatic Control Valve , Industrial Rotary Plug Control Valve

Basic Information
Place of Origin: Garmany
Brand Name: Samson
Certification: CE EAC
Model Number: 82.7
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time: 7 to 20 Workdays
Payment Terms: L/C, T/T, D/A, D/P, MoneyGram
Supply Ability: 500 Set Per Month
Valve Size: DN 25 To 250 NPS 1 To 10 Material: Steel
Nominal Pressure: PN 10 To PN 40 CL 150 And 300 Weight, Approx.: 1.8 Kg
Temperature Range Of Medium: –100 To +400 °C –148 To +752 °F
High Light:

3 way pneumatic valve

,

pneumatic speed control valve

Germany Series V2001 Type 3321 Globe Valves with electro-pneumatic, pneumatic or electric actuators Samson



Product Introduction


Valve Body Material  Cast carbon steel  Cast stainless steel  Low temperature carbon steel  Special alloys (Duplex, Hastelloy etc.)  Other special materials on request

Special features



Seat version  Metal sealing, armored or unarmored  Soft sealing  Standard seat factors 1 / 0.6 / 0.4 / 0.25 Standard version For temperatures from –100 to +400 °C (–148 to +752 °F) Flanged version  DN 25 to 250, PN10/ PN16/ PN25/ PN40, faceto-face dimensions acc. to EN 558, Table 16, Series 36  NPS 1 to 10, CL 150 / CL 300, face-to-face dimensions acc. to EN 558, Table 16, Series 36 Further versions  TA-Luft packing / double packing  Special materials for body and trim  Noise reduction devices for gaseous mediums  Anti-cavitations devices for liquids  Flange version with tongue/groove or male-face/female-face according to EN 1092-1  RF and RTJ according to ANSI B16.5  Versions for higher and lower temperatures on request The valves can be equipped with different accessories, such as positioners, solenoid valves and other accessories according to VDI/VDE 3845.



Specifications


Valve Type 82.7
Valve size  DN 25 to 250  NPS 1 to 10
Style Flanged
Flange pressure rating CL 150 / 300
Max. operating pressure 40 bar /50 bar


Temperature range of medium

Medium: –100 to +400 °C
Opening angle 75°
Body 1.0619/A216 WCC
Shaft 1.4404
Plug
1.4404/Stellite 6
Seat ring 1.4404 armored with Stellite / seat with soft sealing


Detailed Image

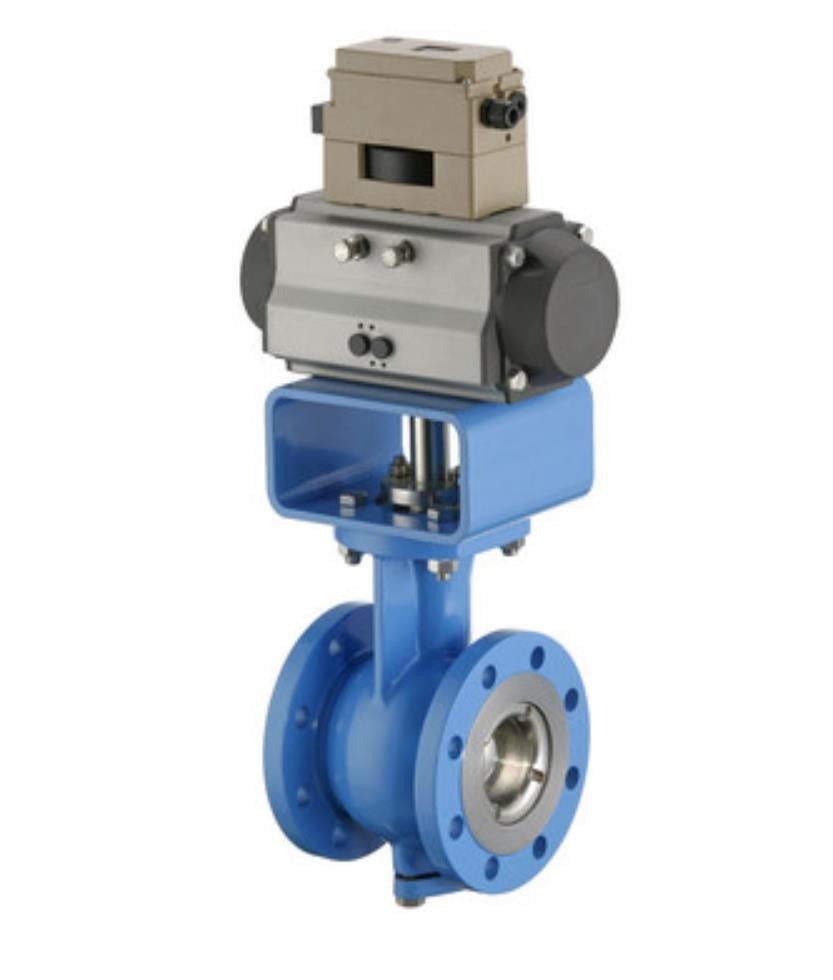

Double Eccentric Pneumatic Control Valve , Industrial Rotary Plug Control Valve 0

Double Eccentric Pneumatic Control Valve , Industrial Rotary Plug Control Valve 1





Packaging and Delivery


Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free.  Size: 60*30*40 (cm)

The products will be shipped after receiving the deposit or full payment within 15 working days



Our Service


1. Swift delivery
For common parts, we can deliver the goods within 3 days

2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3. Quality Assurance

4. Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.

5. Quickly response
Our staffs will keep 24h online and answer your question very quickly.
