Heating / Ventilation / Air Pneumatic Control Valve , Steel 3 Way Pneumatic Valve

Basic Information
Place of Origin: Garmany
Brand Name: Samson
Certification: CE EAC
Model Number: 3226
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time: 7 to 20 Workdays
Payment Terms: L/C, T/T, D/A, D/P, MoneyGram
Supply Ability: 500 Set Per Month
Valve Size: DN 25 To 250 NPS 1 To 10 Material: Steel
Nominal Pressure: PN 10 To PN 40 CL 150 And 300 Weight, Approx.: 1.8 Kg
Temperature Range Of Medium: –100 To +400 °C –148 To +752 °F
High Light:

3 way pneumatic valve

,

pneumatic speed control valve

Type 3226 Three-way Valve Control valves for use in heating, ventilation and air



Product Introduction


Valve Body Material  Cast carbon steel  Cast stainless steel  Low temperature carbon steel  Special alloys (Duplex, Hastelloy etc.)  Other special materials on request

Special features



Type 3226 Three-way Valve designed as a mixing valve with male thread connection and welding ends or threaded ends (DN 15 to 50) or with female thread connection (G ½ to G 1) • Type 3226 Three-way Valve designed as a diverting valve with male thread connection and welding ends or threaded ends (DN 15 to 50) • Type 3226 Three-way Valve combined with Type 5857 and TROVIS 5757-7 (with special spring) • Force-locking connection between valve and actuator • Type 3226 Three-way Valve (mixing or diverting valve) in special version: DVGW-tested



Specifications


Nominal size  DN 15 20 25 32 40 50
Thread size  ½ ¾ 1
Nominal pressure 25
Permissible temperature range +5 (–15) to 150 1)
Max. operating pressure 40 bar /50 bar


Temperature range of medium

Medium: –100 to +400 °C
Opening angle 75°
Body CC499K (CuSn5Zn5Pb2-C)
Plug CW617N (CuZn40Pb2zh) with EPDM
Packing O-rings made of EPDM
Threaded ends Red brass


Detailed Image

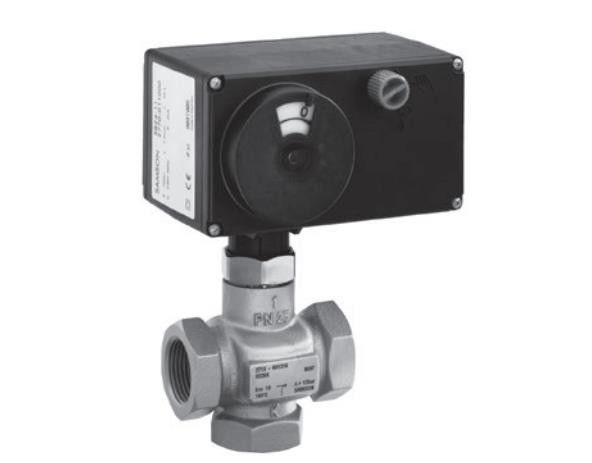

Heating / Ventilation / Air Pneumatic Control Valve , Steel 3 Way Pneumatic Valve 0







Packaging and Delivery


Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free.  Size: 60*30*40 (cm)

The products will be shipped after receiving the deposit or full payment within 15 working days



Our Service


1. Swift delivery
For common parts, we can deliver the goods within 3 days

2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3. Quality Assurance

4. Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.

5. Quickly response
Our staffs will keep 24h online and answer your question very quickly.
