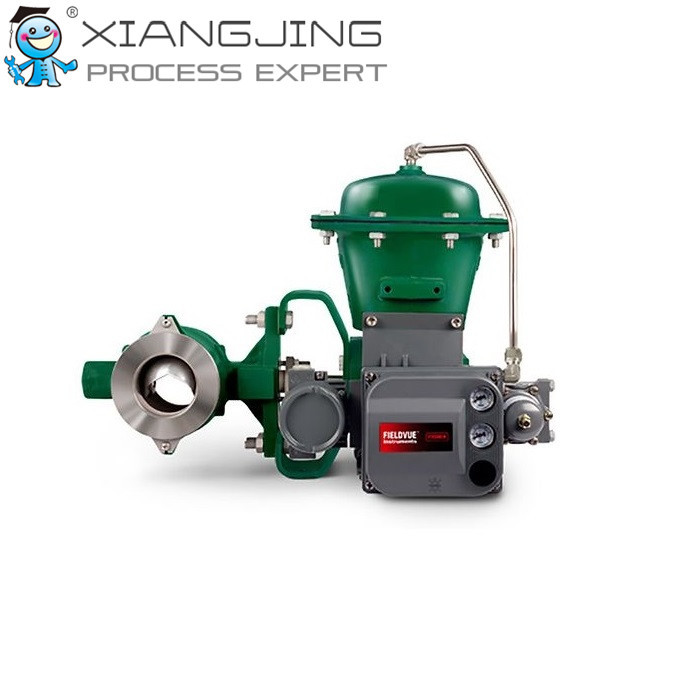

Fisher Vee-Ball V200 Control Valve

Basic Information
Place of Origin: China
Brand Name: Fisher
Model Number: Vee-Ball V200
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Packing type: cardboard box/non-fumigation wooden box
Supply Ability: 100 Set/Sets per Month
Application: General Material: Casting
Temperature Of Media: Medium Temperature Pressure: Medium Pressure
Power: Pneumatic Media: Acid
Port Size: Standard Structure: Regulating
Standard Or Nonstandard: Standard Port: Main Ports In China
High Light:

electric pinch valve

,

electric hydraulic control valve

Product Description

Fisher Vee-Ball V200 Control Valve

The Fisher Vee-Ball V200 control valve is your best choice for performance and cost-effectiveness across a broad range of applications. The precision-machined parts and pressure balanced seal designs allow smooth, precise valve operation.



Specifications

Certifications SIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE
Critical Service Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service
Flow Characteristics Equal Percentage
Material Carbon Steel, Stainless, Duplex, Alloy
Operating Temperature Standard Temperature
Pressure Class ASME
Process Connection Type Flanged
Shutoff Class Class III (FCI 70-2), Class IV (FCI 70-2), Class VI (FCI 70-2)
Valve Size NPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10
Valve Size Standard NPS
Other Configurations Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.



Features

Available with flangeless or flanged body style for flexible installation.
The solid HD ball seal construction provides long service life in demanding applications.
Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic.
Materials are available for applications involving sour liquids and gases. These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156.
Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve.
The one-piece valve body improves structural integrity of the pressure boundary by eliminating leak paths that could be caused by the gaskets in two-piece, bolted valve designs.
The optional ENVIRO-SEAL™ packing systems are designed with very smooth shaft surfaces and live loading to provide exceptional sealing.

Packaging & Shipping

We can delivery the cargo to transport company within 3 days upon receiving of the cargos from the plant
Any question, please do not hesitate to contact me.

Our Services

1.Swift delivery

 For common parts, we can deliver the goods within 3 days



2.Original products

 All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.



3.Quality Assurance



4.Technical Support

 Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

 Our staffs will keep 24h online and answer your question very quickly.
