| Place of Origin: | China |
|---|---|
| Brand Name: | Fisher |
| Model Number: | DLC3010 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Packing type: cardboard box/non-fumigation wooden box |
| Delivery Time: | 12-14 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Set/Sets per Month |
| Area Classification: | Intrinsically Safe, Explosion Proof, Dust Ignition Proof, Flame Proof, Non-incendive, Type N | Certifications: | CSA, FM, ATEX, KGS, Peso, CIMFR, NEPSI, TIIS, Ukraine Metrology, Belarus Metrology, Kazakhstan Metrology, IECEx, INMETRO, CUTR |
|---|---|---|---|
| Communication Protocol: | HART®, 4-20mA Analog | Data Interface: | Wired |
| Diagnostics: | Yes | Mounting Type: | 249 Series Torque Tube Arm Mounted |
| 249 Series Torque Tube Arm Mounted: | Standard Temperature | Position Control: | Monitoring |
| High Light: | rotary plug control valve,3 way pneumatic valve |
||

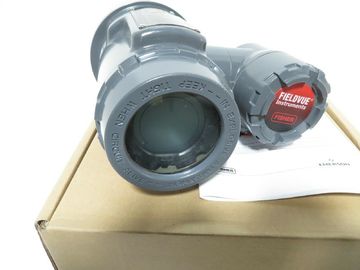

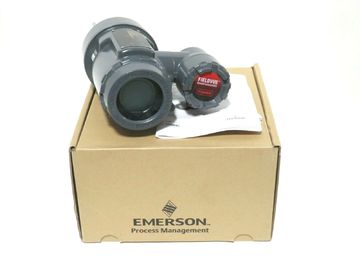

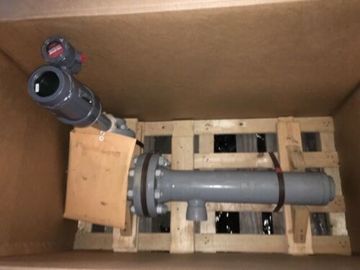

Fisher DLC3010 Digital Level Controller for pneumatic control valve
with DVC6200 DVC2000 digital valve controller
The Fisher FIELDVUE DLC3010 digital level controller helps you gain easy access to information critical to your process operation. Gather information about the process, instrument, or sensor using the 475 or 375 Field Communicator. The DLC3010 digital level controller can be used in analog or HART® digital signaling mode with the DeltaV™ system.
Specifications
| Area Classification | Intrinsically Safe, Explosion Proof, Dust Ignition Proof, Flame Proof, Non-incendive, Type N |
| Certifications | CSA, FM, ATEX, KGS, Peso, CIMFR, NEPSI, TIIS, Ukraine Metrology, Belarus Metrology, Kazakhstan Metrology, IECEx, INMETRO, CUTR |
| Communication Protocol | HART®, 4-20mA Analog |
| Data Interface | Wired |
| Diagnostics | Yes |
| Mounting Type | 249 Series Torque Tube Arm Mounted |
| Operating Temperature | Standard Temperature |
| Position Control | Monitoring |
| Power Source | Loop Powered (2-Wire)ed (2-Wire) |
| Process Control | Level |
| Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
Feature
For quick analog transmitter replacement, the instrument may be configured with default sensor data, zero level offset, differential process SG, and zero/span procedure only.
Accurate, high-gain analog-to-digital conversion enables measurement of small changes in the process variable. This allows for use in difficult liquid level, interface, or density applications.
An internal temperature sensor enables consistent performance of the digital level controller, despite ambient temperature changes.
Mechanical safeguards designed into the digital level controller help to withstand physical abuse often incurred during installation or in transport, without compromising performance.
Field wiring connections are in a compartment separated from the electronics. This protects the electronics from any moisture brought into the housing by the field wiring.
Includes self-diagnostics that detect an error that may render the process variable measurement inaccurate.
We can delivery the cargo to transport company within 3 days upon receiving of the cargos from the plant
Any question, please do not hesitate to contact me.
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
Xiangjing(Shanghai)M&E Tech. Co., Ltd is a valve and instrument distributor for a series of world-wide famous brands just like Emerson,Fisher,Rosemount,Masoneilan,Flowserve,Rotork,etc.
We have many common models in stock, so that we can offer our service in very short time.
Our office is located in Shanghai, we welcome your visit!
Shanghai Office
Beijing Office
Hunan Province Office
Q.How long will you need before delivery?
A:We have many common models in stock, so that we can deliver the goods very soon(less than 3 days).
Q.What is your payment term?
A:Normally T/T 30% in advance, balance to be paid before delivery, We also support the trade assurance,O/A.
Q:What is Trade Assurance?
A:Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.
Q:Does Trade Assurance charge fees?
A:No. Trade Assurance is free for both buyers and suppliers.
Q:What kind of trade terms can you do?
A:EX-WORKS,FOB,CFR,CIF,etc.
