Fisher V270 Full-Bore Ball Control Valve

Basic Information
Place of Origin: China
Brand Name: Fisher
Model Number: V270
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Packing type: cardboard box/non-fumigation wooden box
Supply Ability: 100 Set/Sets per Month
Application: General Material: Stainless Steel
Temperature Of Media: Medium Temperature Pressure: Medium Pressure
Power: Pneumatic Media: Acid
Port Size: Standard Structure: Regulating
Standard Or Nonstandard: Standard Port: Main Ports In China
High Light:

hydraulic pressure control valve

,

electric pinch valve

Product Description

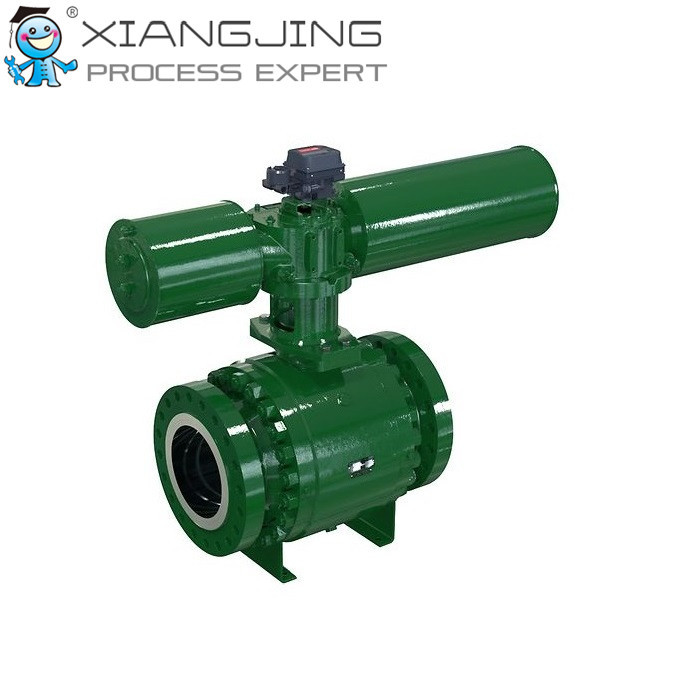

Fisher V270 Full-Bore Ball Control Valve

The Fisher V270 is a three piece, trunnion mounted, full-bore control valve designed from the ground up with features for optimized pressure, flow and process control. The V270 full-bore ball valve is designed for automated control in bypass, batch, monitor, and emergency shutoff service applications, and it presents little or no restriction to flow. The V270 full-bore ball valve is available with composition seals, and process type live-loaded shaft packing for improved service life and lower emissions.



Specifications

Certifications CRN, NACE
Critical Service General Service, Mixing
Flow Characteristics Modified Equal Percentage
Material Carbon Steel
Operating Temperature Standard Temperature
Pressure Class ASME
Process Connection Type Flanged
Shutoff Class Class VI (FCI 70-2)
Valve Size NPS 6, NPS 8, NPS 10, NPS 12, NPS 14, NPS 16, NPS 20, NPS 24
Valve Size Standard NPS
Other Configurations Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product



Features

Shaft and trunnion guiding provides improved dynamic control.
Standard construction materials comply with NACE Standard MR0175 / IS 15156.
Self-adjusting seals are pressure assisted to provide Class VI shutoff for long, reliable service. Design incorporates a heavy duty S31600 stainless steel carrier that retains the composition seal.
Comes standard with a base bracket allowing the valve to sit upright.
The ball trunnions are designed for demanding applications requiring long service life, with a reduction in maintenance time and costs.
Design comes standard with a dual seal arrangement.
Optional fire safe construction.

Packaging & Shipping

We can delivery the cargo to transport company within 3 days upon receiving of the cargos from the plant
Any question, please do not hesitate to contact me.

Our Services

1.Swift delivery

 For common parts, we can deliver the goods within 3 days



2.Original products

 All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.



3.Quality Assurance



4.Technical Support

 Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

 Our staffs will keep 24h online and answer your question very quickly.

Company Information

Fisher V270 Full-Bore Ball Control Valve 0

Xiangjing(Shanghai)M&E Tech. Co., Ltd is a valve and instrument distributor for a series of world-wide famous brands just like Emerson,Fisher,Rosemount,Masoneilan,Flowserve,Rotork,etc.
We have many common models in stock, so that we can offer our service in very short time.
Our office is located in Shanghai, we welcome your visit!

Shanghai Office

Fisher V270 Full-Bore Ball Control Valve 1

Beijing Office

Fisher V270 Full-Bore Ball Control Valve 2

Hunan Province Office

Fisher V270 Full-Bore Ball Control Valve 3

FAQ

Q.How long will you need before delivery?

A:We have many common models in stock, so that we can deliver the goods very soon(less than 3 days).

Q.What is your payment term?

A:Normally T/T 30% in advance, balance to be paid before delivery, We also support the trade assurance,O/A.

Q:What is Trade Assurance?

A:Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

Q:Does Trade Assurance charge fees?

A:No. Trade Assurance is free for both buyers and suppliers.

Q:What kind of trade terms can you do?

A:EX-WORKS,FOB,CFR,CIF,etc.
