Fisher Vee-Ball V150S Flanged Control Valve

Basic Information
Place of Origin: China
Brand Name: Fisher
Model Number: Vee-Ball V150S
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Packing type: cardboard box/non-fumigation wooden box
Supply Ability: 100 Set/Sets per Month
Application: General Material: Stainless Steel
Temperature Of Media: High Temperature Pressure: Medium Pressure
Power: Pneumatic Media: Acid
Port Size: Standard Structure: Regulating
Standard Or Nonstandard: Standard Port: Main Ports In China
High Light:

hydraulic pressure control valve

,

electric hydraulic control valve

Product Description

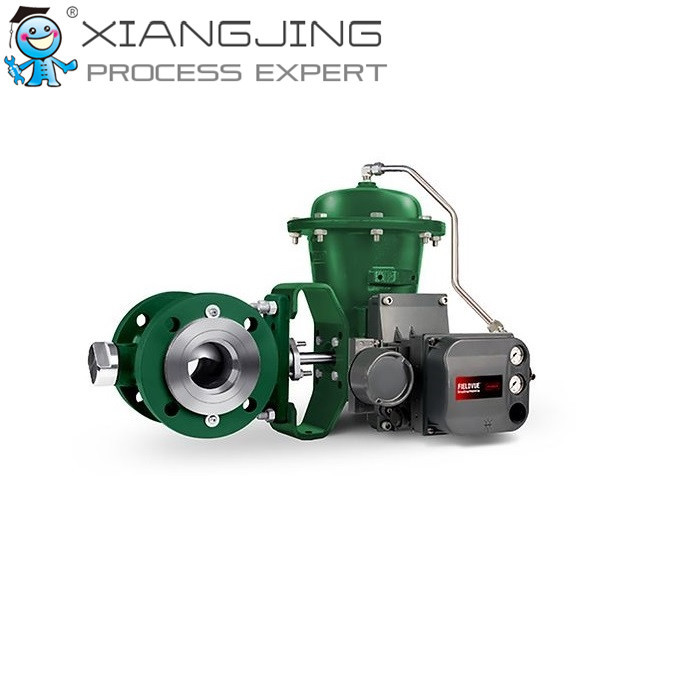

Fisher Vee-Ball V150S Flanged Control Valve

The Fisher Vee-Ball™ V150S control valve offers a rugged construction, highly wear-resistant trim materials, and an unrestricted straight through flow path which makes this valve ideal for controlling the most abrasive of slurries. The design is particularly effective in minimizing erosive damage to the adjoining pipework, thereby providing greater operational safety and service life.



Specifications

Certifications ATEX, CUTR, PED, CRN, Fugitive Emission, NACE
Critical Service Dirty Service, Erosive, General Service
Flow Characteristics Equal Percentage
Material Carbon Steel
Operating Temperature Standard Temperature
Pressure Class ASME
Process Connection Type Flanged
Shutoff Class Class I (FCI 70-2)
Valve Size NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 12
Valve Size Standard NPS
Other Configurations Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.



Features

The valve body, shaft, and bearings are fully protected by hard wear-resistant trim materials.
The throttled flow stream is guided through a specially shaped flow ring to minimize turbulence and impingement on the pipe wall.
When used in reverse flow mode, it keeps the high velocity down stream of the vena contracta within the flow ring bore at the outlet of the valve. Compared with other styles of valves, the exit flow is essentially parallel with the flow ring wall and a minimum of flow impingement occurs.
Full flanging on the valve body allows the valve body to be easily aligned centrally with the pipe flanges, an essential requirement in avoiding erosion across the flange faces.
Precise contouring of the V-notch ball provides a modified equal percentage flow characteristic.
The valve body, complete with flanges, is made from a one-piece casting. No welding is employed.
