|Temperature Of Media:||High Temperature||Pressure:||High Pressure|
|Standard Or Nonstandard:||Standard||Port:||Main Ports In China|
hydraulic pressure control valve,
electric pinch valve

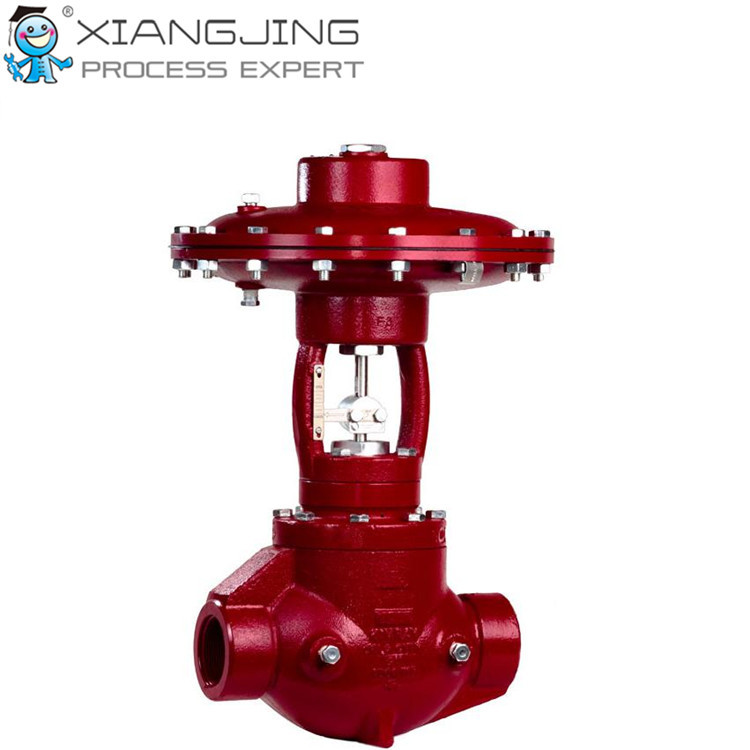

2" thru 10" valves. Used as Dump Valve or Pressure Regulator. Our Cage Guided valves have larger trim sizes for larger valve coefficients (Cv) compared to the Stem Guided series. "Cage-guided" refers to the cage around the trim guiding the trim into its seat. "Balanced" means the pressure below the seat is communicated to the top of the seat so that the pressures are balanced, allowing for operation in high pressure differentials. All valves in this series have the option of emissions-free electric actuation.
Connection Size: 2 "
Connection Type: Female NPT
Body Style: Through Body
Body Material: Steel
Option Available for NACE MR0175 compliance or certification.
Trim Size: 2 "
Trim Type: Equal Percentage
Seal Class: Class VI
Process Fluid: Liquid and Gas
Max. Working Pressure: 1500 psig
Actuator Spring Nominal Pressure: 15 psig
Actuator Crack Open Pressure: 3 psig
Actuator Full Open Pressure: 15 psig
Max. Supply Gas Pressure: 45 psig
Valve Fail Position: Closed - Field Reversible
Catalog Page: E1:15.2
Face-to-Face Length: 10.63 "
Repair Kit P/N: RUR
We can delivery the cargo to transport company within 3 days upon receiving of the cargos from the plant,Any question, please do not hesitate to contact me.
1. Swift delivery
For common parts, we can deliver the goods within 3 days
2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3. Quality Assurance
4. Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5. Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
