Application1: | Paper & Pulp | Application 2: | All Processing Fluid |
---|---|---|---|
Discharge Size: | 1"-10" | Capacity: | Max 1400m3/h |
Head: | Max 142m | Medial Temperature: | -25 To 140 DegC |
System Pressure: | 25 Bar | Material1: | Ductile Iron |
Material2: | Cast Steel | Material3: | 316SS |
Selling Units: | Single Item | Single Package Size : | 100X50X60 Cm |
Single Gross Weight: | 40.0 Kg | Package Type: | Fumigation Wooden Box |
High Light: | hydraulic pressure control valve,electric hydraulic control valve |

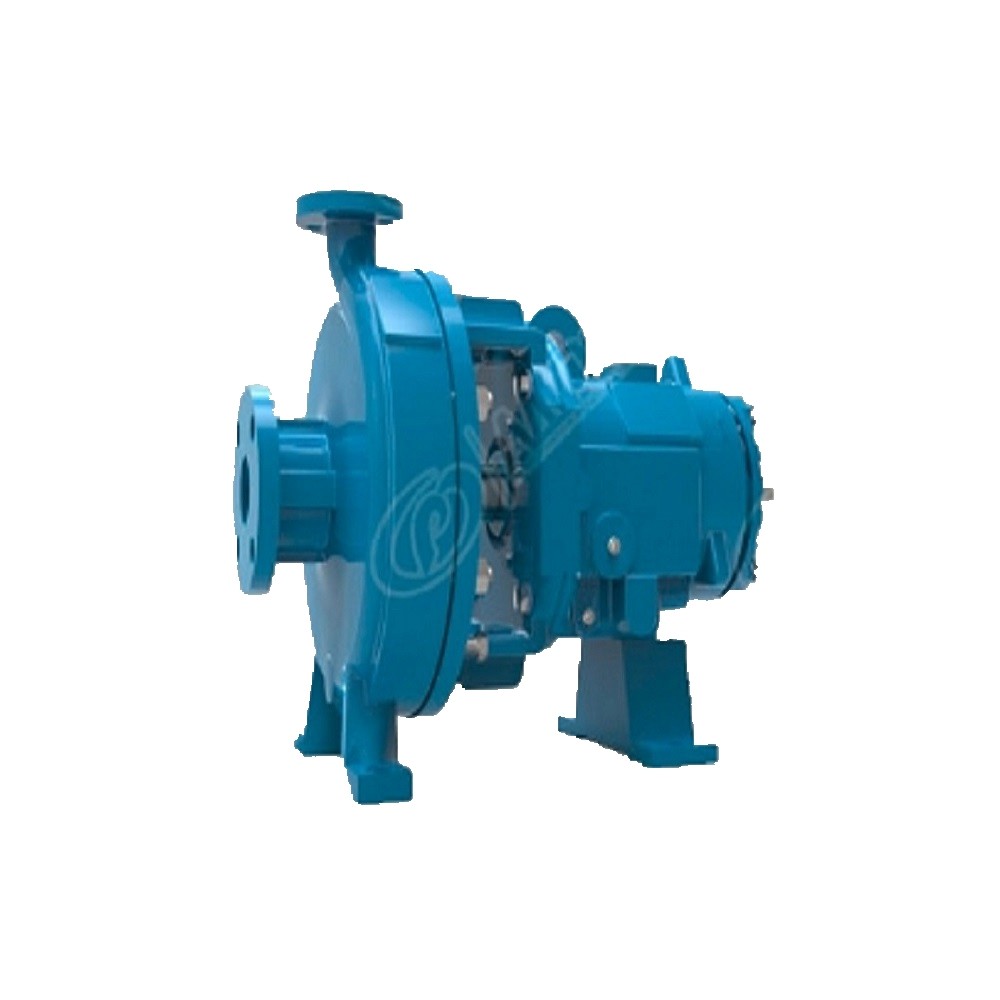

MCN-D 3196 Series ANSI B73.1 Chemical Pump
MCN-D series pumps are recognized worldwide as one of the best ANSI chemical process pumps. Confirming to ANSI B73.1 standard and incorporateing advanced design features, the rugged MK3 standard pump provides unmatched performance and reliabilities. Precision investment cast reverse vane impeller offers low, predictable seal chamber pressure and repeatable pump performance. External micrometer impeller adjustment reduces maintenance time and cost , and restores pump efficiency. This series pumps can be produced in Various type of material, such as ductile iron, cast steel, 316ss, CD4, A20, Hastalloy B&C, Titanium etc. The MCN-D MK3 familiy are built with only three different power frames, which creats lots of flexiblabilities of assembling and spare parts stocking |
