145 Psig DVC6200f Control Valve Accessories , Digital Fisher Valve Positioner

Basic Information
Place of Origin: China
Brand Name: Fishre
Certification: FM, ATEX, IECEx, CUTR, etc.
Model Number: DVC6200f
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: One set Digital valve positioner DVC6200f and control valve positioner or control valve with positioner packed with one fumigation wooden box Box size: 60*30*40 (cm) WG:4.5 Kg
Delivery Time: 2-4 weeks
Supply Ability: 10 set per month
Communication Protocol: Profibus Max Outlet Pressure: 145 Psig
Mounting Type: Mounting Type Position Control: Throttling Control, On/Off
Supply Media: Air, Natural Gas, Nitrogen Data Interface: Wired
High Light:

fisher valve positioner

,

fisher pneumatic positioner

Fisher digital valve positioner DVC6200f and control valve positioner or control valve with positioner

Digital valve positioner DVC6200f and control valve positioner or control valve with positioner



Specification



Product Name Digital valve positioner DVC6200f and control valve positioner or control valve with positioner
Model DVC6200f
Application Digital valve positioner; control valve positioner;control valve with positioner
Available Mounting on Fisher 657/667or GX actuators; on Fisher rotary actuators
Function Block Suites AO,PID,ISEL,OS,AI,MAI,DO,CSEL and DI function blocks
Supply Pressure 0.3 to 10.0 bar
Supply Medium Air or Natural Gas
Steady-State Air Consumption 0.38 to 1.3 m3/hr
Maximum Output Capacity 10.0 to 29.5 m3/hr
Weight Aluminum: 3.5 kg;Stainless Steel:8.6 kg
Block Execution Times 15ms-20ms
Electrical Input Voltage Level: 9 to 32 volts; Maximum Current:19 mA
Digital Communication Protocol 121 and 511
Fieldbus Device Capabilities Backup LAS (Link Active Scheduler)
Output Signal Pneumatic signal,Double;Single Direct orReverse
Operating Ambient Temperature Limits (-52°-85°)
Electromagnetic Compatibility Meets EN 61326-1 and EN 61326-1 standard
Vibration Testing Method Tested per ANSI/ISA-S75.13.01 Section 5.3.5.
Humidity Testing Method Tested per IEC 61514-2
Actuator Compatibility Stem Travel(6.35-606mm);Shaft Rotation(45°-90°)
Construction Materials low copper aluminum alloy+Stainless Steel+Thermoplastic polyester Elastomers
Detailed Images

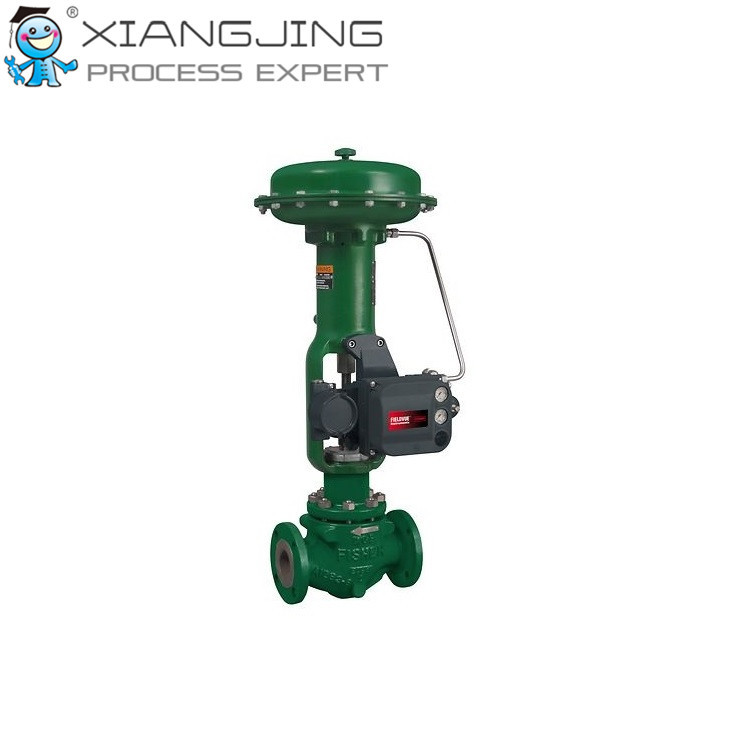

145 Psig DVC6200f Control Valve Accessories , Digital Fisher Valve Positioner 0Digital valve positioner DVC6200f and control valve positioner or control valve with positioner1

Our Services



1. Swift delivery

For common parts, we can deliver the goods within 3 days



2. Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.



3. Quality Assurance



4. Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.



5. Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
