| MOQ: | 1 set |
| Standard Packaging: | One positioner for valve Input 4 to 20mA DC EP800 series for koso positioner packed with one fumigation wooden box. |
| Delivery Period: | 7 working days after deposit |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 100 sets/Month |
Positioner for valve Input 4 to 20mA DC EP800 series for
koso positioner
SPECIFICATION
| Type | EPA800 for single acting | EPC800 for double acting | EPB800 for 5200LA actuator | |
|---|---|---|---|---|
| Input signal / Characteriatic | 4 to 20, 4 to 12, 12 to 20 mA DC / Linear | |||
| Air supply | 140 to 700 KPa | |||
| Single acting type | Double acting type | |||
| Linearity/Hysteresis | +/-1.0% / 0.5% | +/-1.5% / 0.8% | ||
| Response level/Repeatability | 0.1% / 0.2% | 0.2% / 0.3% | ||
| Air consumption | Output air pressure(50%) 5 Nl/min. at Sup. 140 KPa [gaug] |
Output air pressure(50%) 15 Nl/min. at Sup. 400 KPa [gaug] |
||
| Max. capacity | Output atomosphere 175 Nl/min. at Sup. 140 KPa [gaug] |
Output atomosphere 400 Nl/min. at Sup. 400 KPa [gaug] |
||
| Enclosure | Weather proof type, Explosion proof type, Intrisically safe explosion proof type | |||
| Air/Electric wiring connection | Rc. 1/4 / G1/2 | |||
| Environment temp. | Standard model: -20 to +80°, Low temp.model: -50 to +60°, High Temp.model: 0 to +100° | |||
Product Description

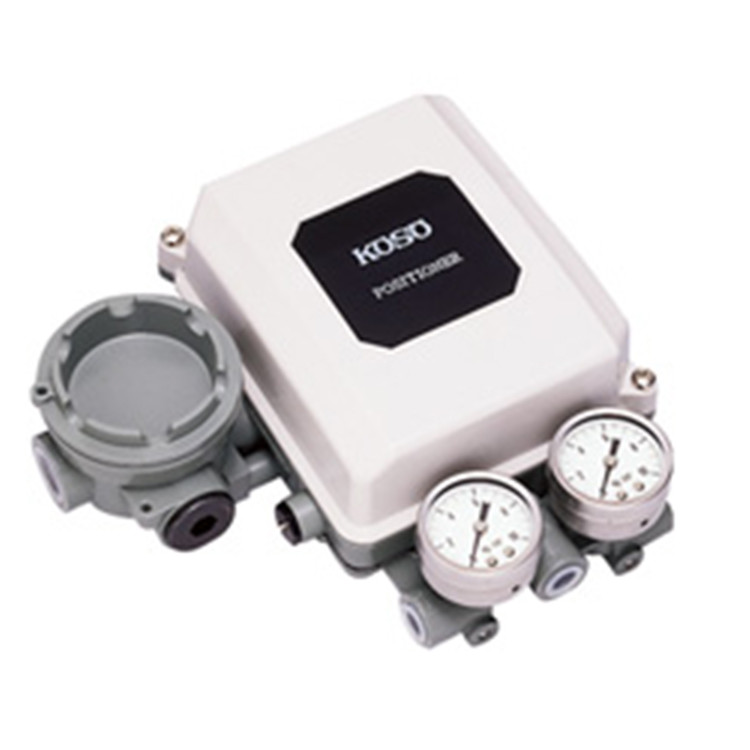

EP800:Eletro-Pneumatic Positioner
This series is for positioning of pneumatic actuator oper-ated cotrol valves. Input signal 4 to 20mA DC is changed to air
pressure. Accurate positioning is achieved by having valve position feedback from valve stem.
