Model 4411 Electro Pneumatic Transducer Explosion Proof For Control Valve

Basic Information
Place of Origin: America
Brand Name: Masoneilan
Certification: CE EAC
Model Number: 496
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time: 7 to 20 Work days
Payment Terms: L/C, T/T, D/A, D/P, MoneyGram
Supply Ability: 500 Set Per Month
Inherent Characteristics: Linear Place Of Origin: America
Model Number: 4411 Brand: Masoneilan
High Light:

fisher valve positioner

,

fisher pneumatic positioner

Valve accessories Masoneilan Model 4411 Electro-Pneumatic Transducer for control valve



Product Introduction

The Masoneilan 4411 proportional I/P converter from BHGE is a precision electronic pressure controller designed for continuous process control applications. The instrument operates a closed-loop system incorporating a feedback sensor, providing longterm stability and high accuracy performance along with the “failsafe” operation, in which the output falls to a low pressure upon loop current failure. Its modularity provides additional ease of maintenance. The 4411 instrument combines substantial flow capacity with the ability to give precise control into closed volume “dead-end” applications. The instrument was designed to withstand the rigors of industrial environments such as shock, vibration and positional effects. It is available as explosion-proof, intrinsically safe and nonincendive. Its vibration immunity and IP66 weatherproof rating make it ideal for field applications.



Quick Details


Place of Origin America
Brand Name Masoneilan
Model Number

4411

Diagnostics 5 Pressure Sensors
Materials Case/Cover: - Aluminum ASTM 360
Welded BW or SW
Operating Temperature Standard Temperature
Screwed NPT 1/4" through 2" (20 through 50 mm)
Body Materials Cast iron PFA lined
Actuators Model 35 spring-opposed rolling diaphragm
Trim Eccentric rotary plug
inherent Characteristics Linear











Specifications


Power Generation, Refining, Petrochemicals, Midstream Oil & Gas, Upstream Oil & Gas.

Key Applications : Steam Turbine Generator, Condenser, Cooling Tower, Reactor Building, Turbine Building, Reactor Facility Grounds & BOP, Steam Turbine, Gas Turbine, Heat Recovery Steam Generator, Balance Of Plant, Distillation, Hydroprocessing Reforming, Cracking, Secondary, Blending, Quenching & Fractioning, Charge Gas Compression, Seperation, Pipeline Integrity, Operations, Dehydration, Refrigeration, Liquefaction, Loading/Shipping, Regasification, Auxillary, Dehydration/Treating, Compression.

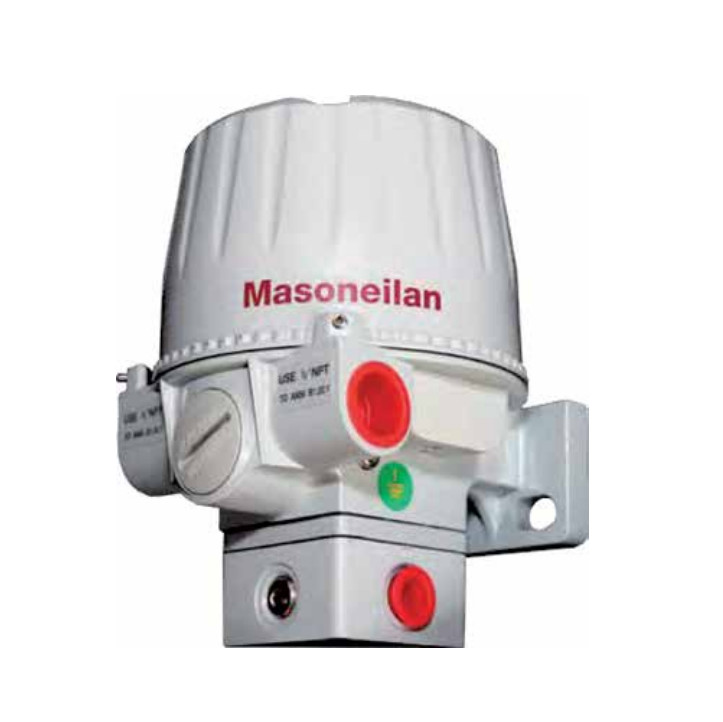

Model 4411 Electro Pneumatic Transducer Explosion Proof For Control Valve 0





Detailed Image

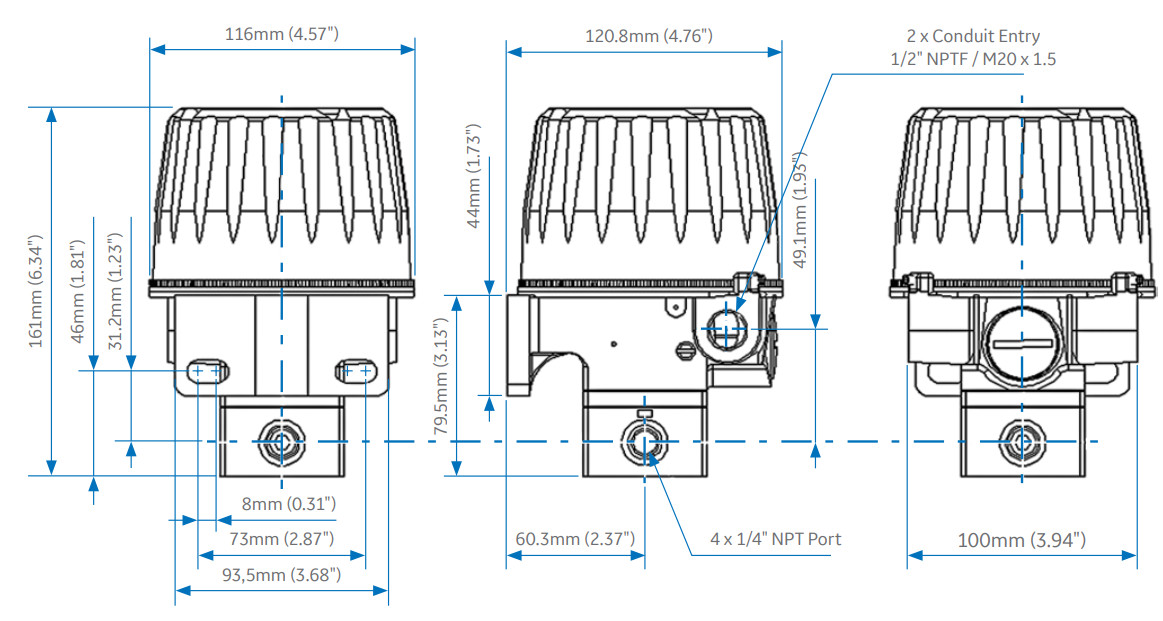

Model 4411 Electro Pneumatic Transducer Explosion Proof For Control Valve 1

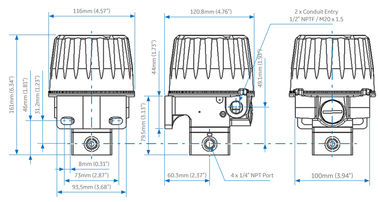

Model 4411 Electro Pneumatic Transducer Explosion Proof For Control Valve 2













Packaging and Delivery


Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free.  Size: 60*30*40 (cm)

The products will be shipped after receiving the deposit or full payment within 15 working days



Our Service


1. Swift delivery
For common parts, we can deliver the goods within 3 days

2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3. Quality Assurance

4. Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.

5. Quickly response
Our staff will keep 24h online and answer your question very quickly.
