| MOQ: | 1 set |
| Standard Packaging: | One robot arm manipulator 6 axis cnc robot floor or celling mounting RS050N industrial robot arm for Kawasaki packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG |
| Delivery Period: | 7 working days after deposit |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 50 sets /Month |

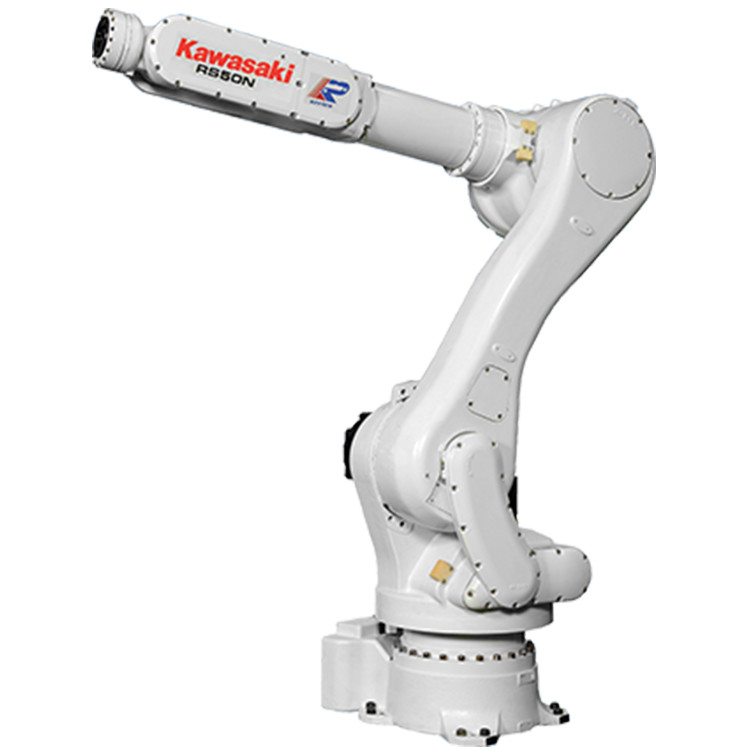

Robot arm manipulator 6 axis cnc robot floor or celling
mounting RS050N industrial robot arm for Kawasaki
Specification
| RS050N SPECIFICATIONS | |||
| Type | Articulated Robot | ||
|---|---|---|---|
| Degrees of Freedom (axes) | 6 | ||
| Payload (kg) | 50 | ||
| Max. Reach (mm) | 2,100 | ||
| Positional Repeatability (mm) ✽1 | ±0.06 | ||
| Motion Range (°) | Arm Rotation (JT1) | ±180 | |
| Arm Out-in (JT2) | +140 - −105 | ||
| Arm Up-down (JT3) | +135 - −155 | ||
| Wrist Swivel (JT4) | ±360 | ||
| Wrist Bend (JT5) | ±145 | ||
| Wrist Twist (JT6) | ±360 | ||
| Max. Speed (°/s) | Arm Rotation (JT1) | 180 | |
| Arm Out-in (JT2) | 180 | ||
| Arm Up-down (JT3) | 185 | ||
| Wrist Swivel (JT4) | 260 | ||
| Wrist Bend (JT5) | 260 | ||
| Wrist Twist (JT6) | 360 | ||
| Allowable Moment (N•m) | Wrist Swivel (JT4) | 210 | |
| Wrist Bend (JT5) | 210 | ||
| Wrist Twist (JT6) | 130 | ||
| Allowable Moment of Inertia (kg•m2) | Wrist Swivel (JT4) | 28 | |
| Wrist Bend (JT5) | 28 | ||
| Wrist Twist (JT6) | 11 | ||
| Mass (kg) | 555 | ||
| Mounting | Floor, Ceiling | ||
| Installation Environment | Ambient Temperature (°C) | 0 - 45 | |
| Relative Humidity (%) | 35 - 85 (No dew, nor frost allowed) | ||
| Controller / Power Requirements (kVA) | E02 / 7.5 | ||
| Protection | Wrist : IP67 equivalent / Base axis : IP65 equivalent | ||
Product Description
Product Information
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
|
|
