Solenoid Control Valve Accessories 12v 3 Way Eccentric Rotary Plug Trim

Solenoid Control Valve Accessories 12v 3 Way Eccentric Rotary Plug Trim

fisher valve positioner

fisher pneumatic positioner

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Inherent Characteristics:
Model Number:
Place Of Origin:
Product Description

24v Solenoid Valve 3 Way: 3/2 - ASCO Series 314 for control valve with many stock


Product Introduction

24v Solenoid Valve 3 Way: 3/2 - ASCO Series 314 with many stocks

ASCO's 2-Way solenoid valves have one inlet and one outlet, and are used to permit and shut off fluid flow.
The two types of operations are Normally Closed (NC) and Normally Open (NO).
Two types of constructions apply to 2-way solenoid valves, which are direct acting and internally piloted.
With Direct acting constructions, the solenoid is energized, the core directly opens the orifice of a Normally Closed valve or
closes the orifice in a Normally Open Valve. The valve will operate at pressures from 0 bar to its rated maximum.
Internally piloted constructions use line pressure to assist operation. When the coil is de-energized (on a Normally Closed
Valve), the pilot orifice is closed and line pressure is applied to the top of the piston or diaphragm through the bleed orifice,
closing the valve.
ASCO 3-Way Solenoid Valves have three pipe connections and two orifices. When one orifice is open, the other is closed and vice
versa. They are commonly used to alternately apply pressure to exhaust pressure from a valve actuator or a single-acting
cylinder. These valves can be normally closed, normally open or universal.
ASCO 4-Way Solenoid Valves have four or five pipe connections, commonly called ports. One pressure inlet, two-cylinder ports
providing pressure to the double-acting cylinder or actuator and one or two outlets to exhaust pressure from the cylinders. They
have three types of construction, single solenoid, dual solenoid or single air operator.
Please see below our wide selection of ASCO General service valves.


Quick Details

Place of Origin America
Brand Name Masoneilan
Model Number


Voltage 110 AC | 120 AC
Media Air, Inert Gas | Water | Light Oil
Valve Actuation Solenoid - Direct Acting
Operating Temperature Standard Temperature
Pipe/Port Size NPT 1/4
Body Materials Brass
Trim Eccentric rotary plug
inherent Characteristics Linear







* ​​​​​​​​​​​​​​​​​​Pilot operated, normally open or normally closed
* Snubber slows disc closing speed to protect system against water hammer damage more effectively than other techniques
* Pressure spike due to water hammer is reduced to a point, eliminating the need for suppressors or other controls in most water systems

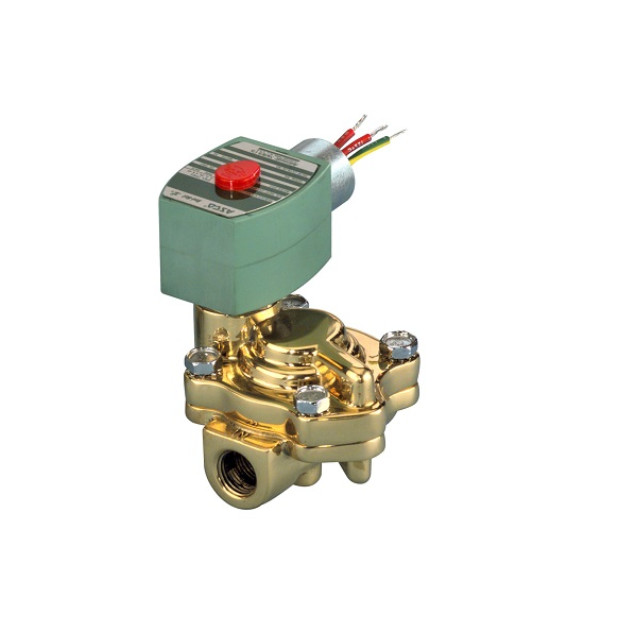

Solenoid Control Valve Accessories 12v 3 Way Eccentric Rotary Plug Trim 0




Detailed Image

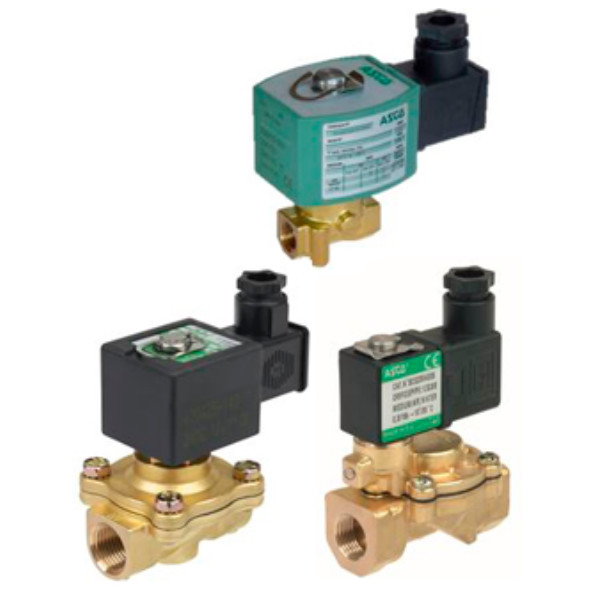

Solenoid Control Valve Accessories 12v 3 Way Eccentric Rotary Plug Trim 1











Packaging and Delivery

Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free.  Size: 60*30*40 (cm)

The products will be shipped after receiving the deposit or full payment within 15 working days


Our Service

1. Swift delivery
For common parts, we can deliver the goods within 3 days

2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish the delivery.

3. Quality Assurance

4. Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.

5. Quickly response
Our staff will keep 24h online and answer your question very quickly.
