Table Mounting Robotic Welding Arm / Industrial Welding Robots 14 Axis Integrated Controller

Basic Information
Place of Origin: China
Brand Name: ABB
Certification: CE
Model Number: IRB1200-7/0.7
Minimum Order Quantity: 1 set
Packaging Details: One industrial robot reach 559mm payload 0.5kgIRB14000 robotic robot for sale for abb china robot packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG
Delivery Time: 7 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Name: Industrial Robot Reach 559mm Payload 0.5kgIRB14000 Robotic Robot For Sale For Abb China Robot Reach: 559mm
Payload: 0.5kg Weight: 38kg
Axis: 14 Mounting: Table
Controller: Integrated Protection: Std: IP30 And Clean Room
Noise Level: 210mm*210 Mm Safety: PL B Cat B
High Light:

abb welding robot

,

robotic welding arm

Industrial robot reach 559mm payload 0.5kgIRB14000

robotic robot for sale for abb china robot



Specification
Axis 14
Payload 0.5kg
Reach 559mm
Weight 38kg
Protection Std: IP30 and Clean Room
Mounting Table
Controller Integrated
Noise level < 70 dB
Safety PL b Cat B
Relative humidity Max. 85%
Working range
Axis 1 arm rotation -168.5° to +168.5°
Axis 2 arm bend -143.5° to +43.5°
Axis 7 arm rotation -168.5° to +168.5°
Axis 3 arm bend -123.5° to +80°
Axis 4 wrist rotation -290° to +290°
Axis 5 wrist bend -88° to +138°
Axis 6 flange rotation -229° to +229°



Product Description

YuMi® creating an automated future together.

You and me.

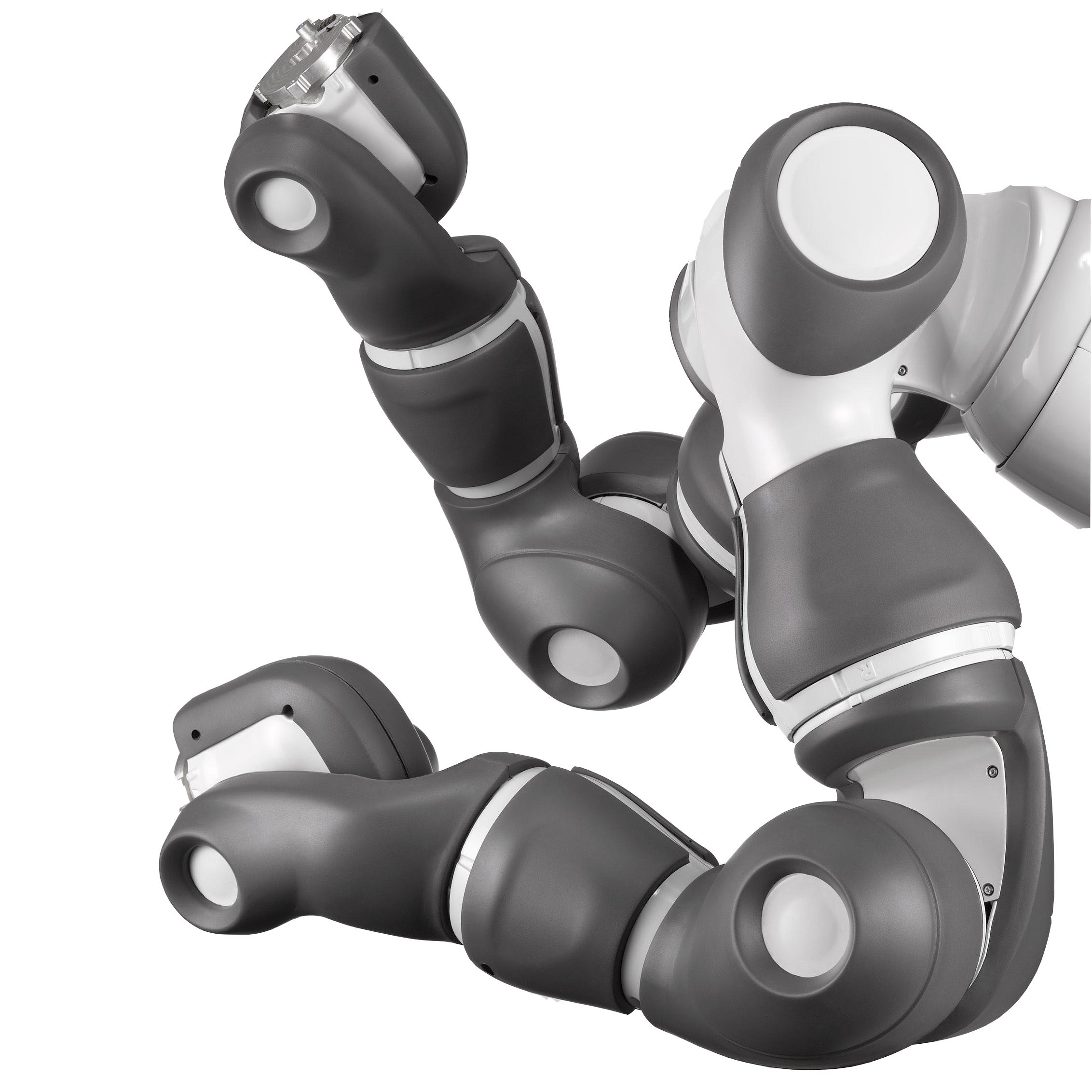

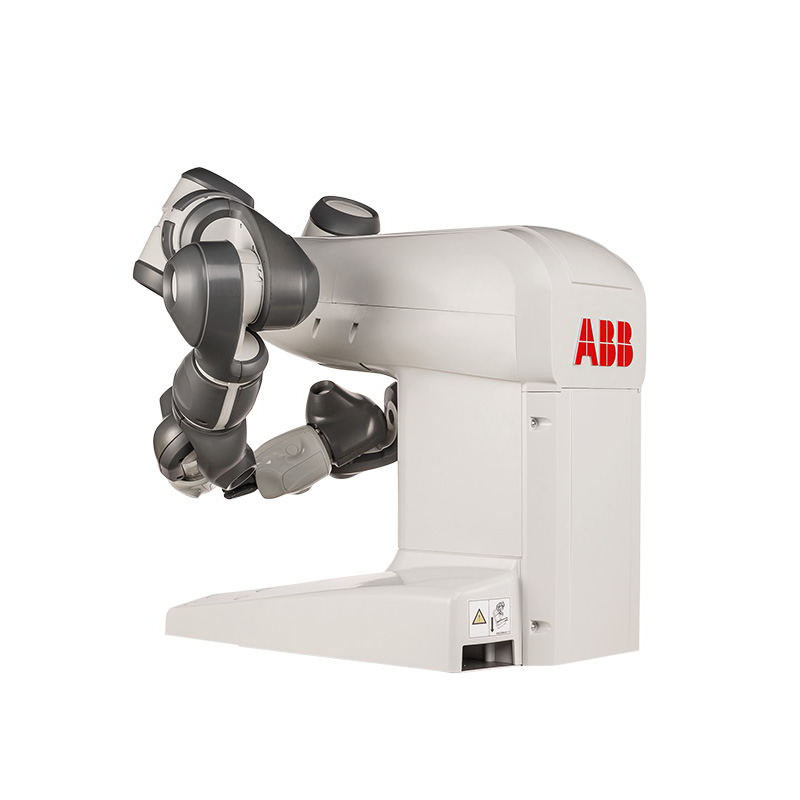

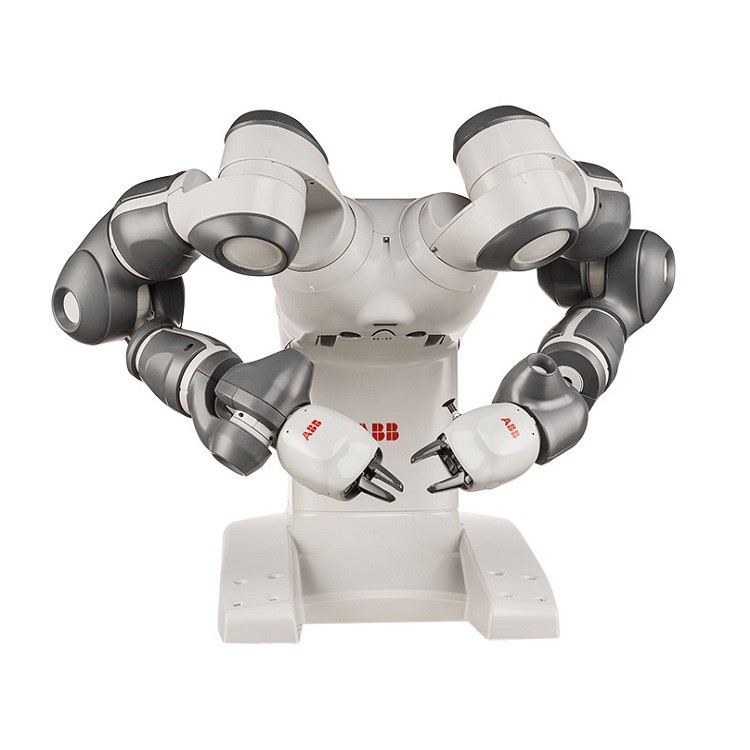

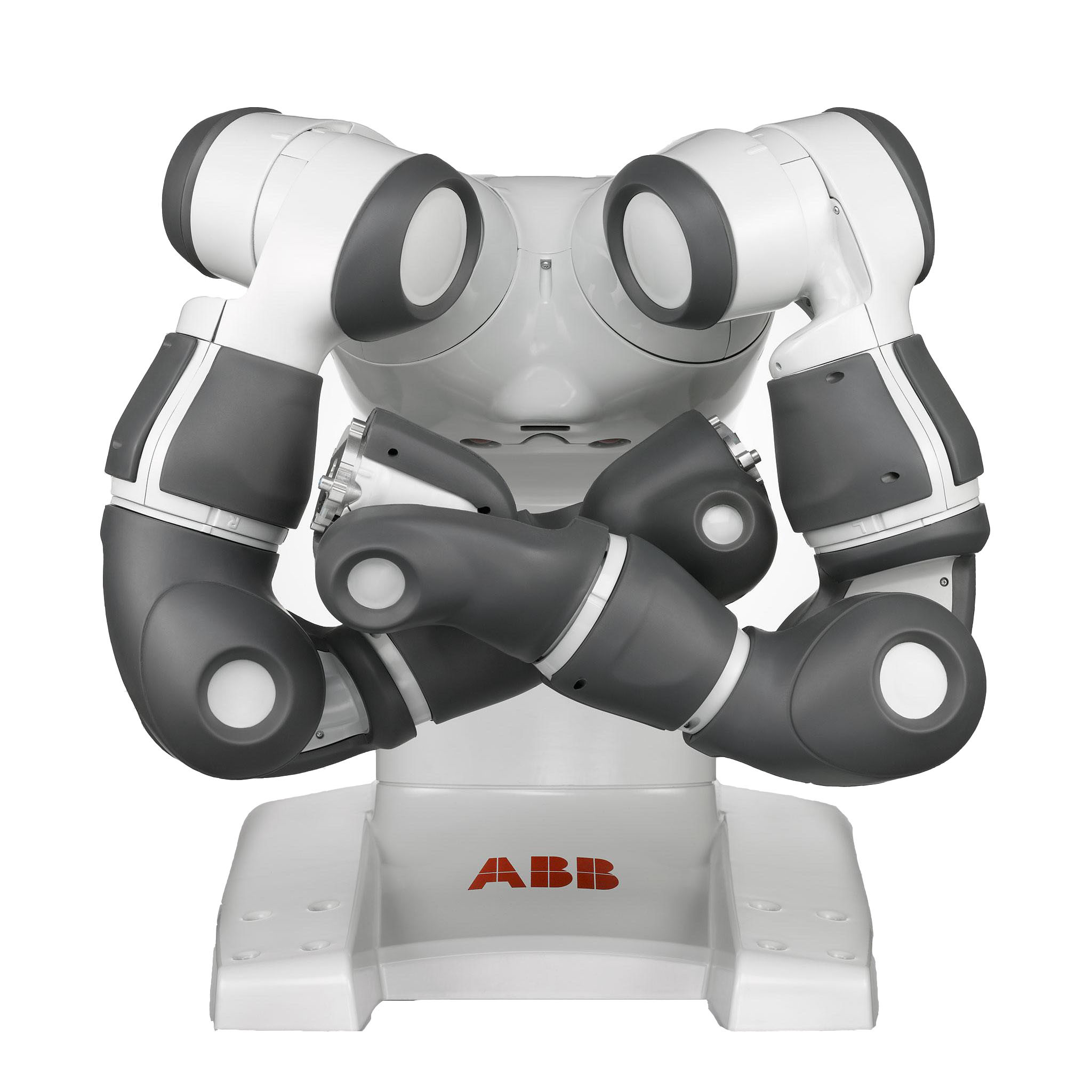

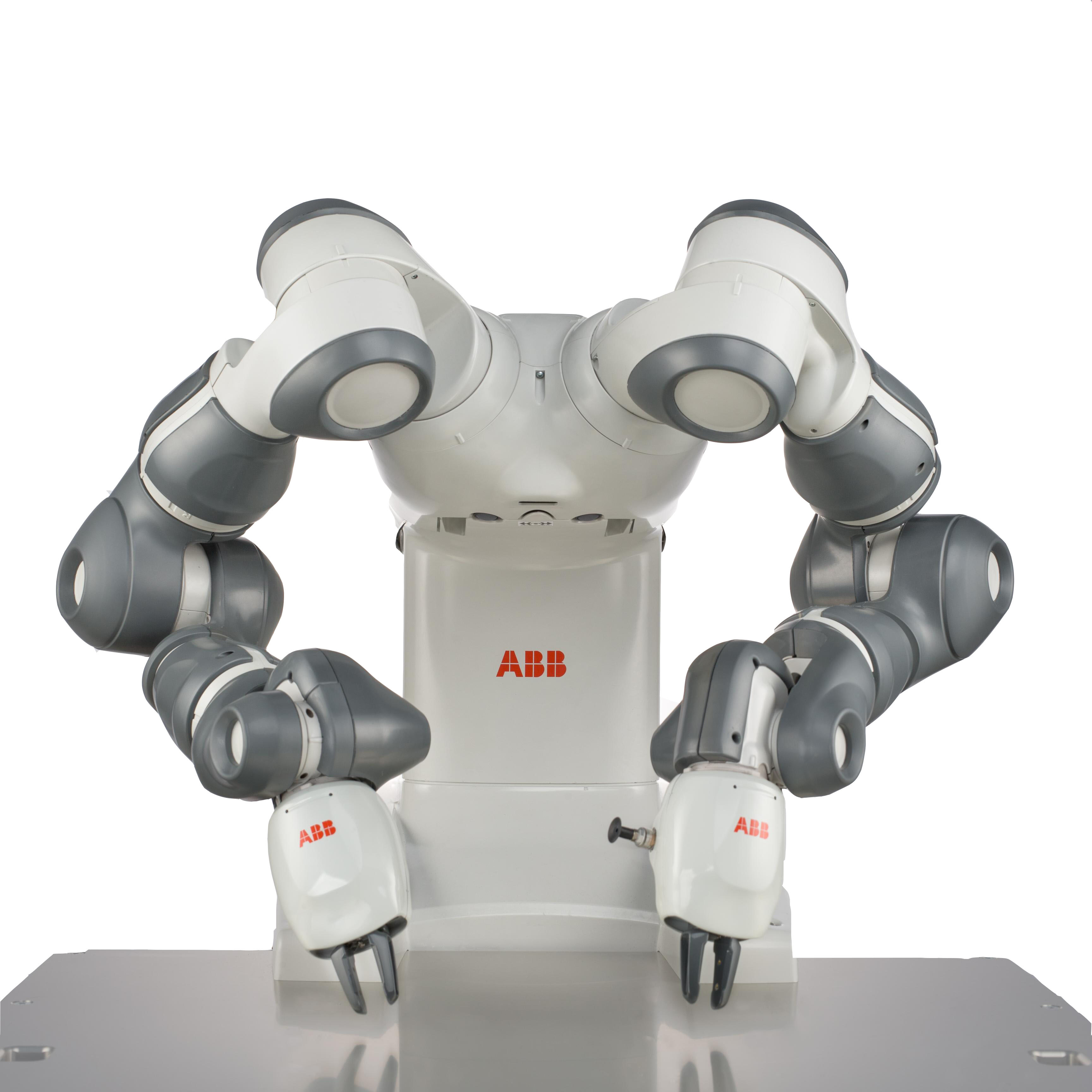

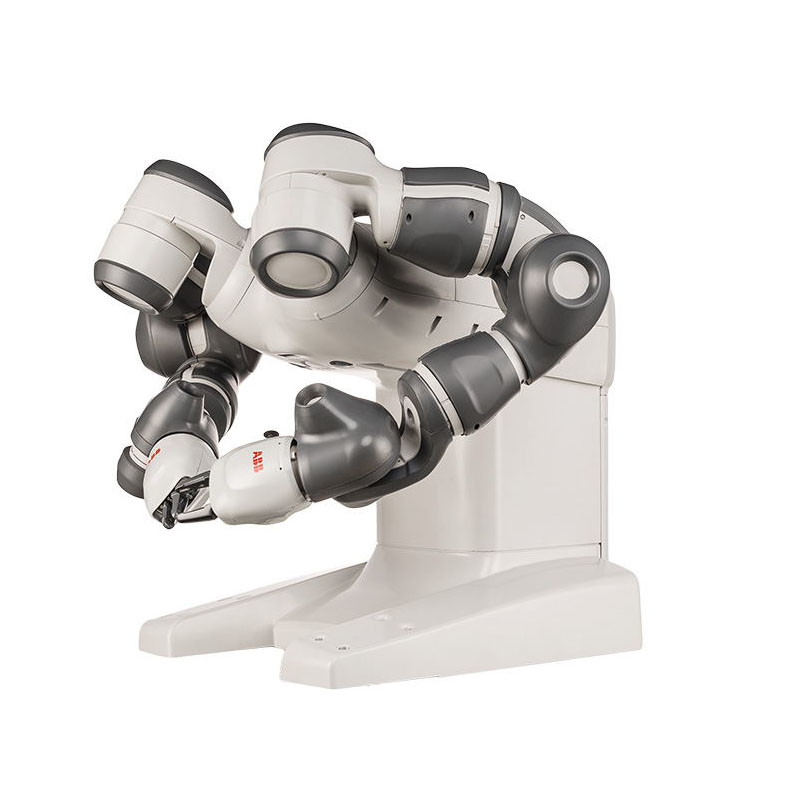

YuMi is the first truly collaborative dual armed robot, designed for a world in which humans and robots work together. It heralds a new era of robotic co-workers which are able to work side-by-side on the same tasks as humans with extreme accuracy while ensuring the safety of those around it.



Benefits

Can operate equally effectively side-by-side or face-to-face with human coworkers.

• Servo grippers (the “hands”) include options for built-in cameras.

• Real-time algorithms set a collision-free path for each arm customized for the required task.

• Padding protects coworkers in high-risk areas by absorbing force if contact is made.
