| MOQ: | 1 set |
| Standard Packaging: | One 6 axis robot arm max. payload 20kg max. reach 1650mm IRB2600 industrial robot china for abb packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG |
| Delivery Period: | 7 working days after deposit |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 50 sets /Month |

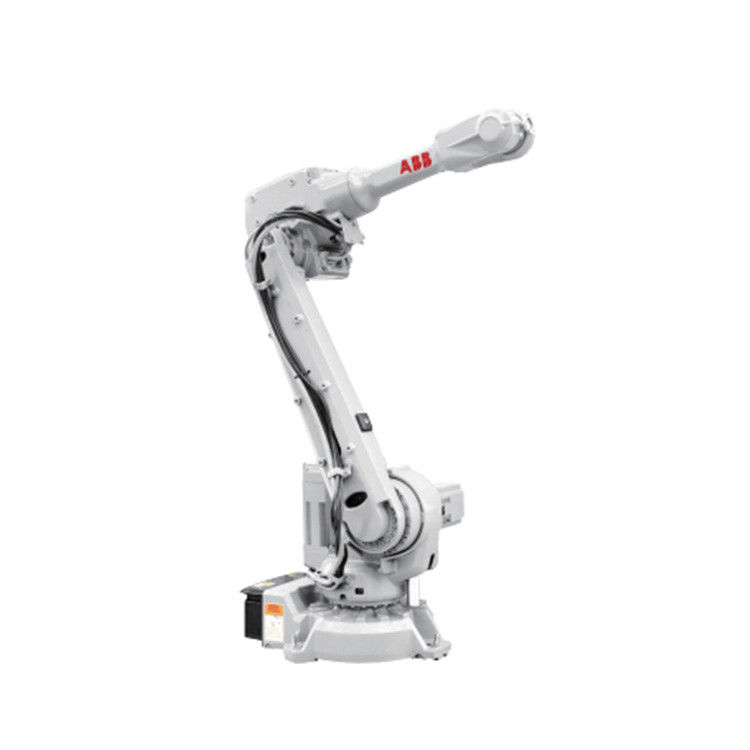

6 axis robot arm max. payload 20kg max. reach 1650mm
IRB2600 industrial robot china for abb
Specification
| Robot version | Reach (m) | Handling capacity (kg) | Max wrist torque (Nm) | Max wrist torque (Nm) |
| Axis 4 & 5 | Axis 6 | |||
| IRB 2600-20/1.65 | 1.65 | 20 | 36.3 | 16.7 |
| IRB 2600-12/1.65 | 1.65 | 12 | 21.8 | 10 |
| IRB 2600-12/1.85 | 1.85 | 12 | 21.8 | 10 |
| Number of axes | 6+3 external (up to 36 with MultiMove) | |||
| Protection | Standard IP67; optional FoundryPlus 2 | |||
| Mounting | Floor, wall, shelf, tilted, inverted | |||
| Controller | IRC5 Single cabinet, IRC5 Dual cabinet | |||
| Robot version | Position repeatability RP | Path repeatability RT |
| (mm) | (mm) | |
| IRB 2600-20/1.65 | 0.04 | 0.13 |
| IRB 2600-12/1.65 | 0.04 | 0.14 |
| IRB 2600-12/1.85 | 0.04 | 0.16 |
| Motion range | |
| Axis 1 rotation | +180° to -180° |
| Axis 2 arm | +155° to -95° |
| Axis 3 arm | +75° to -180° |
| Axis 4 wrist | +400° to -400° Max. rev: +251 to -251 |
| Axis 5 bend | +120° to -120° |
| Axis 6 turn | +400° to -400° Max. rev: + 274 to - 274 |
Product Description

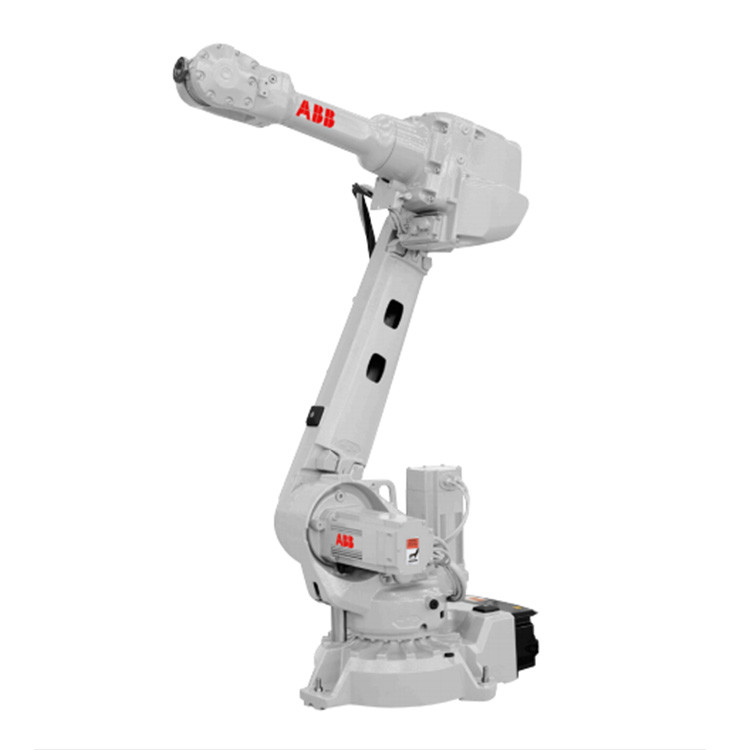

IRB 2600
ABB further extends its mid range robot family
The IRB 2600 is the second model in the sharp generation range with enhanced and new capabilities. It is a compact robot with a high payload capacity. The design has been optimized for targeted applications like arc welding, material handling and machine tending. The IRB 2600 is available in three variants, with options for floor, wall, shelf, tilted or inverted mounting onfigurations.
Sharp accuracy
With the best accuracy in its class, the IRB 2600 can help you increase output with higher process speeds and lower scrap rates, resulting in improved productivity. This is particularly useful in process applications, such as arc welding. The high accuracy is achieved by use of the patented TrueMove™ motion control software.
Short cycle times
Thanks to the compact and optimized design resulting in a low weight, the IRB 2600 can cut the cycle times of the industry benchmark by up to 25 %. The patented QuickMove™ motion control software ensures that the maximum acceleration achievable is highest in its class, together with high maximum speeds. The benefit is increased production capacity and high productivity.
Large working range
The combination of large working range and flexible mounting makes it possible to reach machines to be served without interfering with auxiliary equipment. By optimising the robot placement, you’ll benefit from higher productivity. Flexible mounting is also very useful when you are simulating the best position for your application.
Compact design
The IRB 2600 has the same small foot print as IRB 4600. With the IRB 2600 you can create your production cell with reduced floorspace by placing the robot closer to the served machines. The robots’ design makes it easier for the lower arm to reach straight downwards. Best protection available ABB has the most comprehensive protection program for industrial robots on the market. The IRB 2600 has IP67 as standard and FoundryPlus 2 as option.
Main applications
• Arc Welding
• Assembly
• Material Handling
• Machine Tending
• Material Removal
• Cleaning/Spraying
• Dispensing • Packing
Company Information
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
|
|
